2R, 3R, 4R
Vishay Foil Resistors
Bulk Metal
®
Foil Technology
Molded Resistor Networks
FEATURES
• Resistance range each resistor: 1Ω to 150KΩ
• TCR Tracking: to
±
0.5ppm/°C
• Nominal TCR each resistor: See Figures 1 and 2 in data
sheet “7 Technical Reasons to Specify Bulk Metal® Foil
Resistor Networks.”
• Nominal tolerance ratio matching between resistors:
from
±
0.005 to
±
1%
• Absolute tolerance each resistor:
±
1.0%,
±
0.5%,
±
0.25%,
±
0.1%,
±
0.05%,
±
0.02%,
±
0.01%,
±
0.005%
• Power rating: 0.25 watts per resistor
Product may not
be to scale

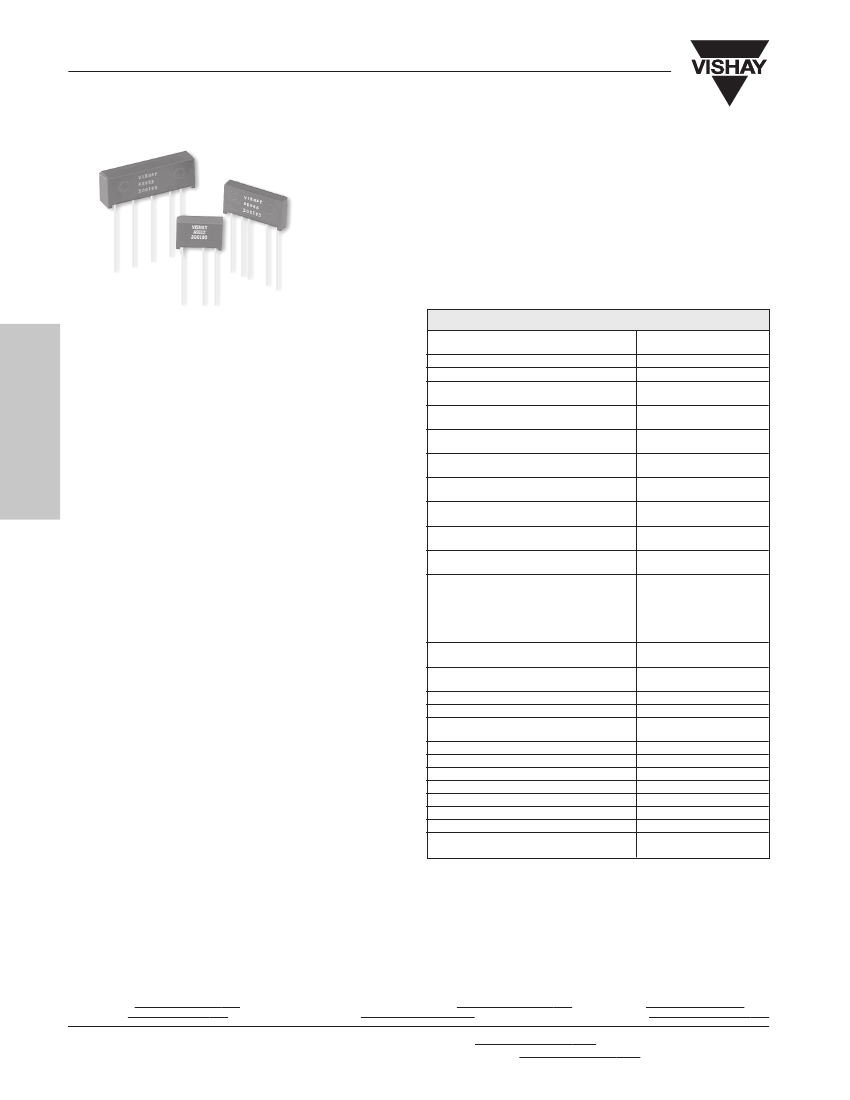

Unitized Resistor Networks are comprised of Vishay S102C
elements combined and molded into single units. This method
of making networks yields some important advantages that
should be considered where space is not a limitation and
maximizing performance is important. To begin with, the leads
that emerge from the package go directly to the resistance
element (or an internal PC board), so the possibility of thermal
EMFs is very low. Next, the value range of the elements is large
(1 ohms to 150Kohms in a single foil element) and they can be
combined for even higher values. Finally, these elements
possess all the good features of discrete Bulk Metal
®
Foil
resistors, plus the ability to be further sorted for TCR track and
absolute match before encapsulation. These networks make
excellent voltage dividers, bridges, and attenuators where
performance and stability are important.
TABLE 1 - TYPICAL
(1)
PERFORMANCE CHARACTERISTICS
Resistance Temp Characteristic (TCR)
TCR Tracking To Reference Element
Max Ambient Temp at Rated Wattage
Max Ambient Temp at Zero Power
Thermal Shock
∆R
(2) (3)
∆Ratio
Low Temperature Operation
∆R
∆Ratio
Short Time Overload
∆R
∆Ratio
Terminal Strength
∆R
∆Ratio
Resistance to Soldering Heat
∆R
∆Ratio
Moisture Resistance
∆R
∆Ratio
Shock
∆R
∆Ratio
Vibration, High Frequency
∆R
∆Ratio
Life
0.3 W @ +125°C
∆R
∆Ratio
0.02 W @ +60°C
∆R
∆Ratio
0.05 W @ +25°C
∆R
∆Ratio
High Temperature Exposure
∆R
∆Ratio
Low Temperature Storage
∆R
∆Ratio
Insulation Resistance
Dielectric Withstanding Voltage
(5)
Voltage Coefficient
∆R
∆Ratio
Noise
N/A
Inductance
N/A
Capacitance
N/A
Rise Time
N/A
Thermal EMF lead to lead
N/A
Thermal EMF air circulation
N/A
Thermal EMF power
N/A
Shelf Life
∆R
(6) (6)
∆Ratio
±
2ppm/°C nominal
(4)
0.1ppm/°C to 4ppm/°C
+ 125°C
+ 175°C
0.002%
0.002%
0.005%
0.002%
0.002%
0.002%
0.001%
0.001%
0.002%
0.001%
0.003%
0.003%
0.001%
0.001%
0.001%
0.001%
0.01%
0.01%
0.003%
0.001%
0.002%
0.001%
0.01%
0.01%
0.002%
0.002%
> 500,000MΩ
No Change
< 0.1ppm/V
(5)
< 0.1ppm/V
(5)
– 40dB (non-measurable)
0.08µH
0.5pf
1ns @ 1KΩ
0.04µV/°C
0.02µV/°C
0.1µV for 20mW
25ppm/year
10ppm/year
THROUGH HOLE
APPLICATIONS
• Differential amplifiers
• Gain defining resistors in digital voltmeters
• Ratio arms in bridge circuits
• Fuel metering systems
• Heads up displays
• Fire control systems
• Spacecraft instrumentation
• Naval weapons systems
• Binary Coded Decimal Ladder Networks
• Binary Ladders (A-D, D-A conversion, current and
voltage summing)
• Ratio and Ratio-matching Networks
• Bridge Networks
• Synchro Input and Summing Networks
• Resolver Networks
• Linear and Linear-summing Networks
• Decoder Networks
• Quadrature Bridge Networks
• Resistive Summing Networks
SALES
(1) Typical is a designer's reference that represents 85% of
production. Most of the
∆R's
shown are maximums. To ensure
that all typical values are maximums a "burn-in" is required.
(2)
∆R:
absolute resistance change.
(3)
∆Ratio:
change in ratio between resistors within the
network package from before to after the specified test.
(4) Depending on construction and ratio value.
(5) Measured < 0.1ppm/V and within the measurement capability of
the equipment. Voltage coefficient is "essentially zero".
(6) 2 ppm when in hermetically sealed package.
• ISRAEL: foilsales.israel@vishay.com
• FRANCE/SWITZERLAND/SOUTHERN EUROPE: foilsales.eusouth@vishay.com
• AMERICAS: foilsales.usa@vishay.com
• ASIA/JAPAN: foilsales.asia@vishay.com • UK/HOLLAND/SCANDANAVIA: foilsales.eunorth@vishay.com • GERMANY/CZECH REPUBLIC/AUSTRIA: foilsales.eucentral@vishay.com
www.vishay.com
92
For technical questions in the Americas, contact foilsupport1@vishay.com
Document Number: 63044
For technical questions in Asia/Japan/Europe/Africa/Israel, contact foilsupport2@vishay.com
Revision 18-Aug-04
2R, 3R, 4R
Bulk Metal
®
Foil Technology
Vishay Foil Resistors
Voltage Dividers, Bridge Circuits, Attenuators

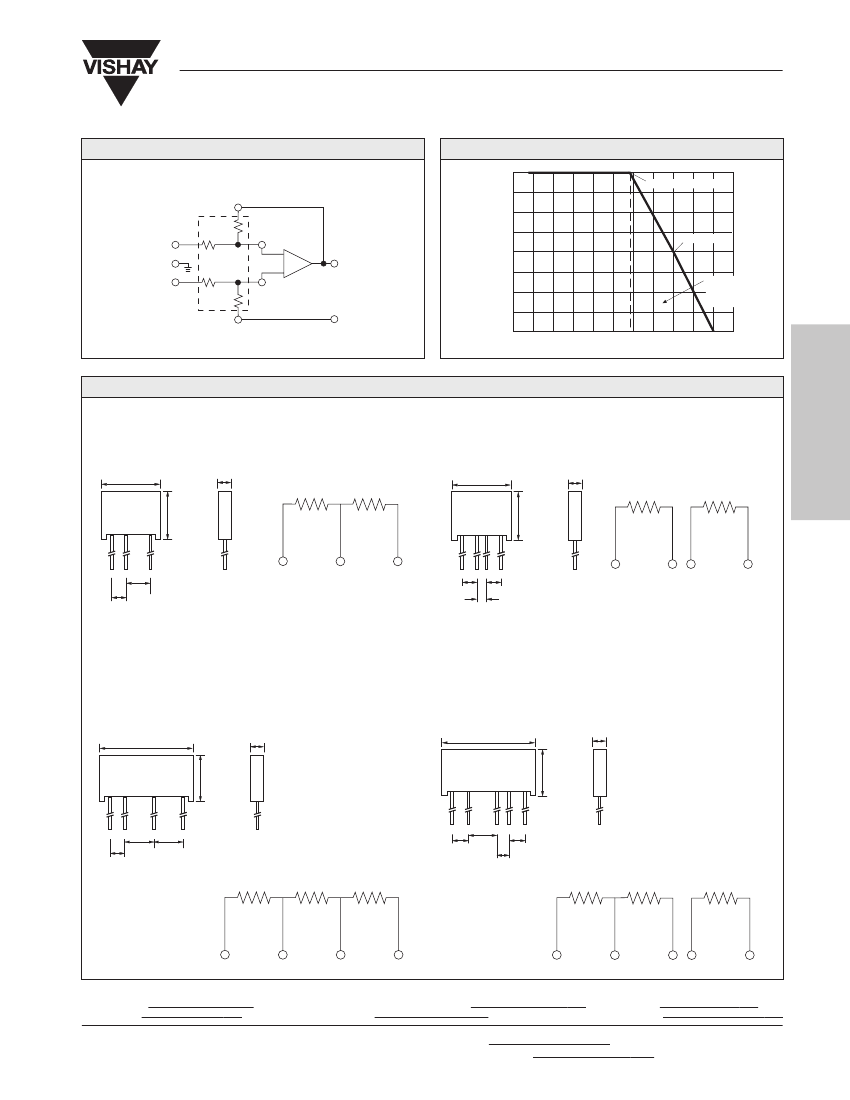

FIGURE 1- VISHAY MODEL 300198 NETWORK
APPLICATION EXAMPLE
FIGURE 2 - POWER DERATIMG CURVE
Percent of Rated Power @ +125°C
200%
175%
150%
125%
100%
75%
50%
25%
0
–75
–55°C
+70°C
Double Rated Power
R1
E1
R2
E2
R3
R4
E3
A
Rated Power
Safe operation
for <150 ppm
∆R
after 2,000
hours load-life.
–50
–25
0
+25
+50
+75
+100 +125 +150 +175 +200
Ambient Temperature (°C)
THROUGH HOLE

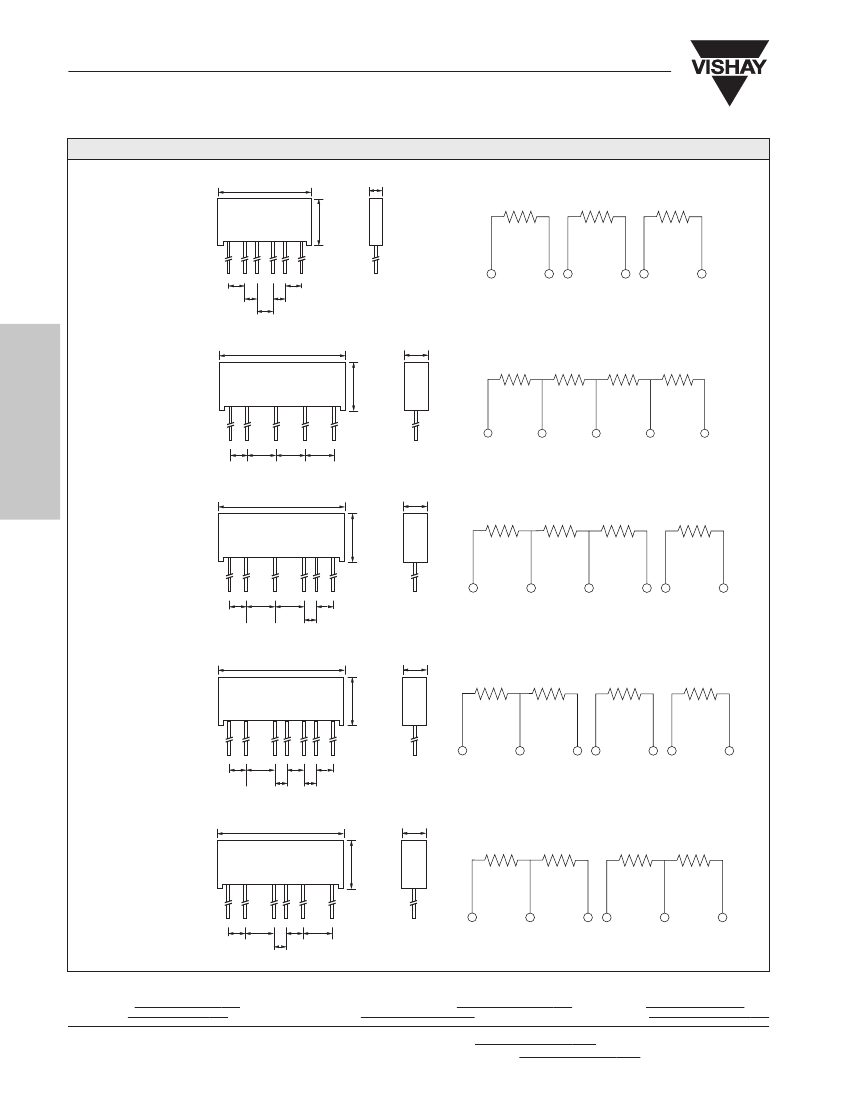

FIGURE 3 - MOLDED 2R, 3R, 4R RESISTOR NETWORK DIMENSIONS AND CIRCUIT DESIGN
in inches (millimeters)
MODEL 300190
0.575 (14.605) Max
0.160 Max
(4.06)
MODEL 300191
0.575 (14.605) Max
0.160 Max
(4.06)
R1
0.413
(10.49)
Max
R2
0.413
(10.49)
Max
R1
R2
1
2
3
0.250
(6.35)
1
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
2
3
1
0.150
(3.81)
2 3
4
0.150
(3.81)
1
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
2
3
4
0.150
(3.81)
0.100
(2.54)
MODEL 300192
0.820 (20.828) Max
0.160 Max
(4.06)
MODEL 300193
0.820 (20.828) Max
0.160 Max
(4.06)
0.413
(10.490)
Max
0.413
(10.490)
Max
1
2
0.250
(6.35)
3
0.250
(6.35)
4
1
2
3
4
5
0.150
(3.81)
0.250
0.150 (6.35)
(3.81)
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
0.150
(3.81)
0.100
(2.54)
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
R1
R2
R3
R1
R2
R3
1
SALES
2
3
4
1
2
3
4
5
• ISRAEL: foilsales.israel@vishay.com
• FRANCE/SWITZERLAND/SOUTHERN EUROPE: foilsales.eusouth@vishay.com
• AMERICAS: foilsales.usa@vishay.com
• ASIA/JAPAN: foilsales.asia@vishay.com • UK/HOLLAND/SCANDANAVIA: foilsales.eunorth@vishay.com • GERMANY/CZECH REPUBLIC/AUSTRIA: foilsales.eucentral@vishay.com
For technical questions in the Americas, contact foilsupport1@vishay.com
Document Number: 63044
For technical questions in Asia/Japan/Europe/Africa/Israel, contact foilsupport2@vishay.com
Revision 18-Aug-04
www.vishay.com
93
2R, 3R, 4R
Vishay Foil Resistors
Bulk Metal
®
Foil Technology
Voltage Dividers, Bridge Circuits, Attenuators
FIGURE 4 - MOLDED 2R, 3R, 4R RESISTOR NETWORK DIMENSIONS AND CIRCUIT DESIGN
in inches (millimeters)
MODEL 300194
0.820 (20.828) Max
0.160 Max
(4.06)
R1
0.413
(10.490)
Max
R2
R3
1
2
3
4
5
6
0.150
(3.81)
0.100
(2.54)
0.150
(3.81)
0.150
(3.81)
0.100
(2.54)
1
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
2
3
4
5
6
THROUGH HOLE
MODEL 300195
1.20 (30.48) Max
0.245 (6.223)
R1
0.413
(10.490)
max
R2
R3
R4
1
2
0.250
(6.35)
3
0.250
(6.35)
4
0.250
(6.35)
5
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
1
2
3
4
5
0.150
(3.81)
MODEL 300196
1.20 (30.48) Max
0.245 (6.223)
R1
0.413
(10.490)
max
R2
R3
R4
1
2
0.250
(6.35)
3
0.250
(6.35)
4
5
6
1
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
0.245 (6.223)
2
3
4
5
6
0.150
(3.81)
0.150
(3.81)
0.100
(2.54)
MODEL 300197
1.20 (30.48) Max
R1
0.413
(10.490)
max
R2
R3
R4
1
2
0.250
(6.35)
3
4
5
6
7
1
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
2
3
4
5
6
7
0.150
(3.81)
0.150
0.150
(3.81)
(3.81)
0.100
0.100
(2.54)
(2.54)
MODEL 300198
1.20 (30.48) Max
0.245 (6.223)
R1
0.413
(10.490)
max
R2
R3
R4
1
2
0.250
(6.35)
3
4
5
0.250
(6.35)
6
1
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
2
3
4
5
6
0.150
(3.81)
0.150
(3.81)
0.100
(2.54)
SALES
• ISRAEL: foilsales.israel@vishay.com
• FRANCE/SWITZERLAND/SOUTHERN EUROPE: foilsales.eusouth@vishay.com
• AMERICAS: foilsales.usa@vishay.com
• ASIA/JAPAN: foilsales.asia@vishay.com • UK/HOLLAND/SCANDANAVIA: foilsales.eunorth@vishay.com • GERMANY/CZECH REPUBLIC/AUSTRIA: foilsales.eucentral@vishay.com
www.vishay.com
94
For technical questions in the Americas, contact foilsupport1@vishay.com
Document Number: 63044
For technical questions in Asia/Japan/Europe/Africa/Israel, contact foilsupport2@vishay.com
Revision 18-Aug-04
2R, 3R, 4R
Bulk Metal
®
Foil Technology
Vishay Foil Resistors
Voltage Dividers, Bridge Circuits, Attenuators
FIGURE 5 - MOLDED 2R, 3R, 4R RESISTOR NETWORK DIMENSIONS AND CIRCUIT DESIGN
in inches (millimeters)
MODEL 300199
1.20 (30.48) Max
0.245 (6.223)
R1
0.413
(10.490)
max
R2
R3
R4
1
2
3
4
5
6
7
8
0.150
0.150
0.150
0.150
(3.81)
(3.81)
(3.81)
(3.81)
0.100
0.100
0.100
(2.54)
(2.54)
(2.54)
1
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
2
3
4
5
6
7
8
THROUGH HOLE
MODEL 300210
0.820 (20.828) Max
0.160 Max
(4.06)
4
0.413
(10.490)
Max
R1
R2
R3
1
1
0.250
(6.35)
2
3
4
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
0.250 0.150
(6.35) (3.81)
2
3
MODEL 300211
1.20 (30.48) Max
0.245 (6.223)
1
0.413
(10.490)
max
R1
1
2
0.250
(6.35)
R2
R3
R4
3
0.250
(6.35)
4
5
6
0.150
(3.81)
0.150
(3.81)
0.100
(2.54)
2
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
3
4
5
MODEL 300212
1.20 (30.48) Max
0.245 (6.223)
1
0.413
(10.490)
max
R1
1
2
0.250
(6.35)
R2
R3
R4
3
0.250
(6.35)
4
0.250
(6.35)
5
Tol.:
±0.010"
(0.254 mm)
Lead Length 0.750" (19.05 mm) Min
0.150
(3.81)
2
3
4
5
ORDERING INFORMATION - MOLDED 2R, 3R AND 4R RESISTOR NETWORKS
Networks are built to your requirements. Send your schematic and electrical requirements to the Applications Engineering
Department. (See data sheet “Network Worksheet.”) A unique part number will be assigned which defines all aspects of your
network.
SALES
• ISRAEL: foilsales.israel@vishay.com
• FRANCE/SWITZERLAND/SOUTHERN EUROPE: foilsales.eusouth@vishay.com
• AMERICAS: foilsales.usa@vishay.com
• ASIA/JAPAN: foilsales.asia@vishay.com • UK/HOLLAND/SCANDANAVIA: foilsales.eunorth@vishay.com • GERMANY/CZECH REPUBLIC/AUSTRIA: foilsales.eucentral@vishay.com
For technical questions in the Americas, contact foilsupport1@vishay.com
Document Number: 63044
For technical questions in Asia/Japan/Europe/Africa/Israel, contact foilsupport2@vishay.com
Revision 18-Aug-04
www.vishay.com
95
京公网安备 11010802033920号
EEWORLD
