"High Frequency Ceramic Solutions"
3.6 GHz Balun
Detail Specification: 01/11/06
P/N 3600BL14M100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Unbalanced Impedence
Differential Balanced Impedence
3600BL14M100
3300~3900
50
Ω
100
Ω
1.2 dB max.
9.5 dB min.
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Phase Difference
Amplitude Difference
Operating Temperature
Reel Quanity
Power Capacity
180° ± 15
1.5 dB max.
-40 to +85°C
4,000
2 Watts max.
Insertion Loss
Return Loss
P/N
Suffix Termination
Style
Packaging
Style
Eg. 3600BL14M100S
Eg. 3600BL14M100E
Eg. 3600BL14M100(E or S)
Eg. 3600BL14M100(E or S)/Pb
Terminal Configuration
No.
1
Function
Unbalanced Port (IN)
GND or DC feed + RF GND

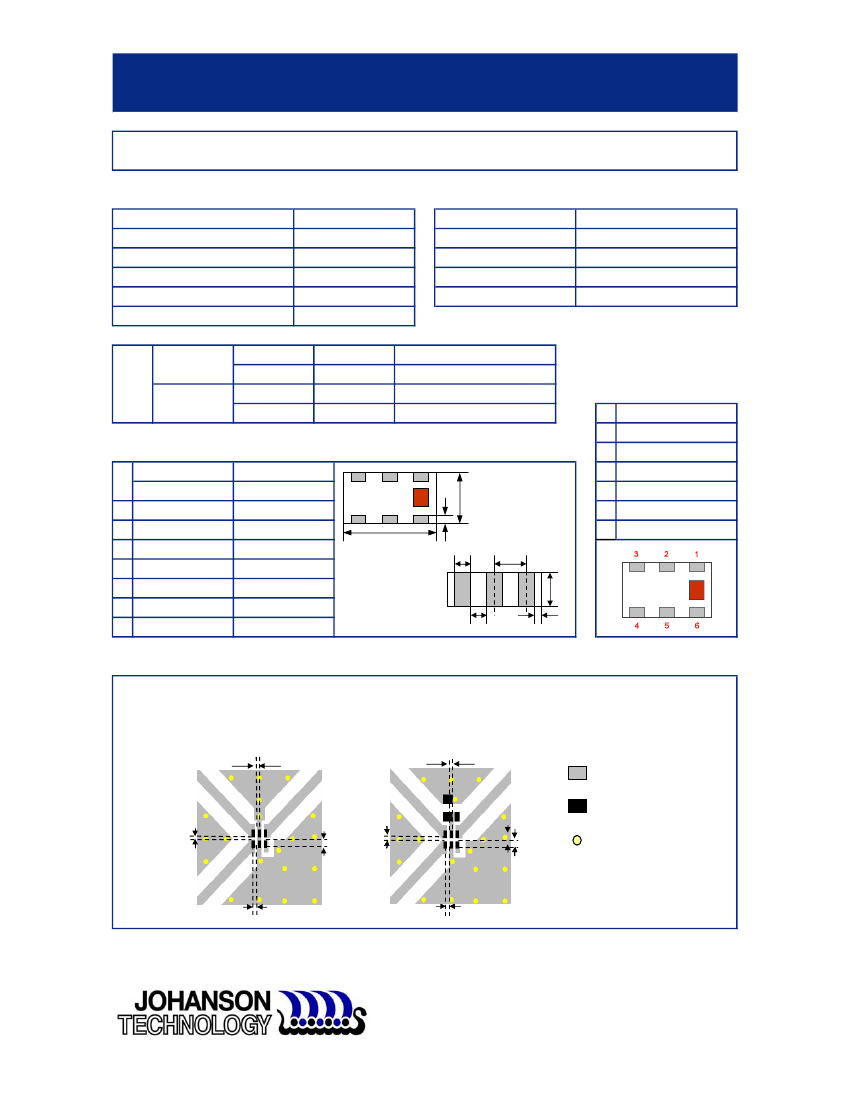

Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.063 ± 0.004
0.031 ± 0.004
0.024 ± 0.004
0.008 ± 0.004
0.008 +.004/-.006
0.006 ± 0.004
0.012 ± 0.004
0.020 ± 0.002
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.20 +0.1/-0.15
0.15 ± 0.10
0.30 ± 0.10
0.50 ± 0.05
g
b
T
L
W
2
3
4
5
6
a
p
Balanced Port (OUT1)
Balanced Port (OUT2)
GND
NC
c
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide proper impedance matching characteristics.
Bypass components should be inserted when the DC feed option is utilized.
Without DC Feed
0.25
With DC Feed
0.25
*
0.3
*
0.55
0.3
*
*
0.55
Solder Resist
Land
Through-hole
Φ
0.3)
(
*
0.25
*
0.25
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
3.6 GHz Balun
Detail Specification: 01/11/06
P/N 3600BL14M100
Page 2 of 2

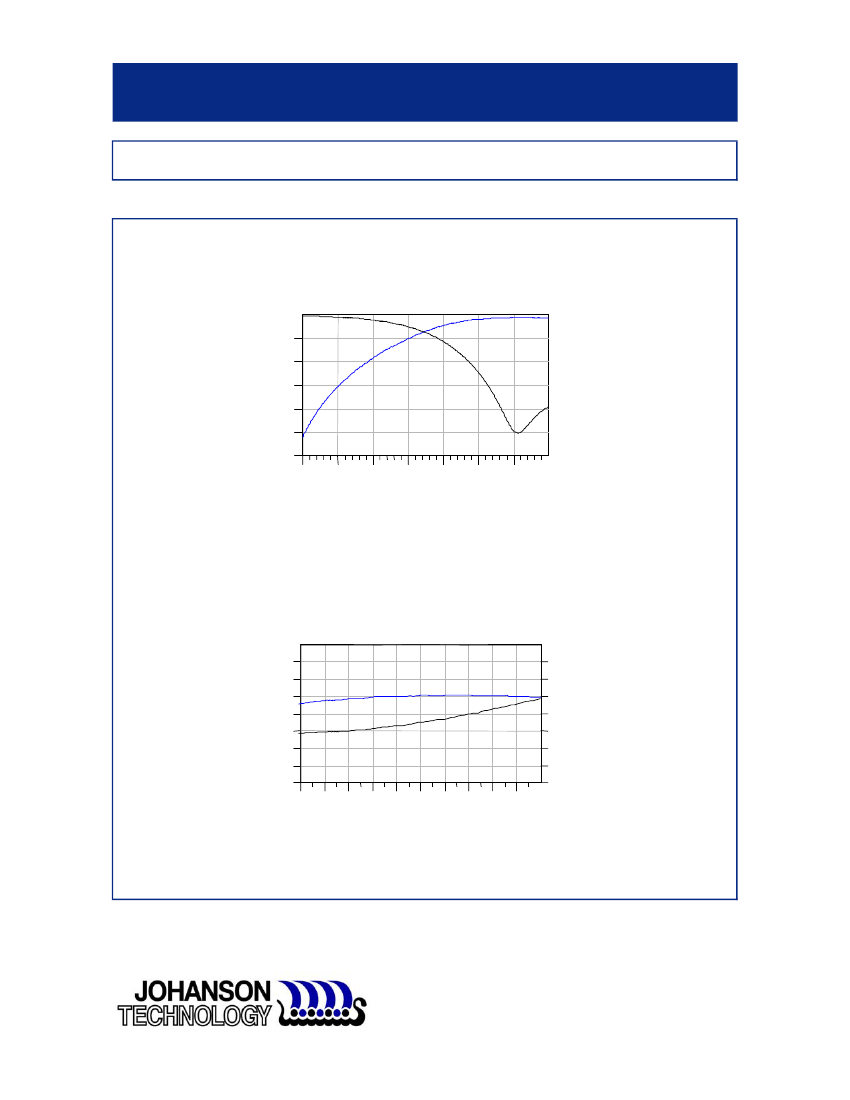

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
Insertion and Return Loss
RL
IL
0
-5
-10
-15
)
(dB)
-20
-25
-30
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
freq, GHz
)
)
Amplitude and Phase Difference
)
2.0
1.5
1.0
dif_amplitude
)
200
195
190
185
180
dif_phase
175
170
165
160
3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0
freq, GHz
0.5
0.0
-0.5
-1.0
-1.5
-2.0
(dB)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
