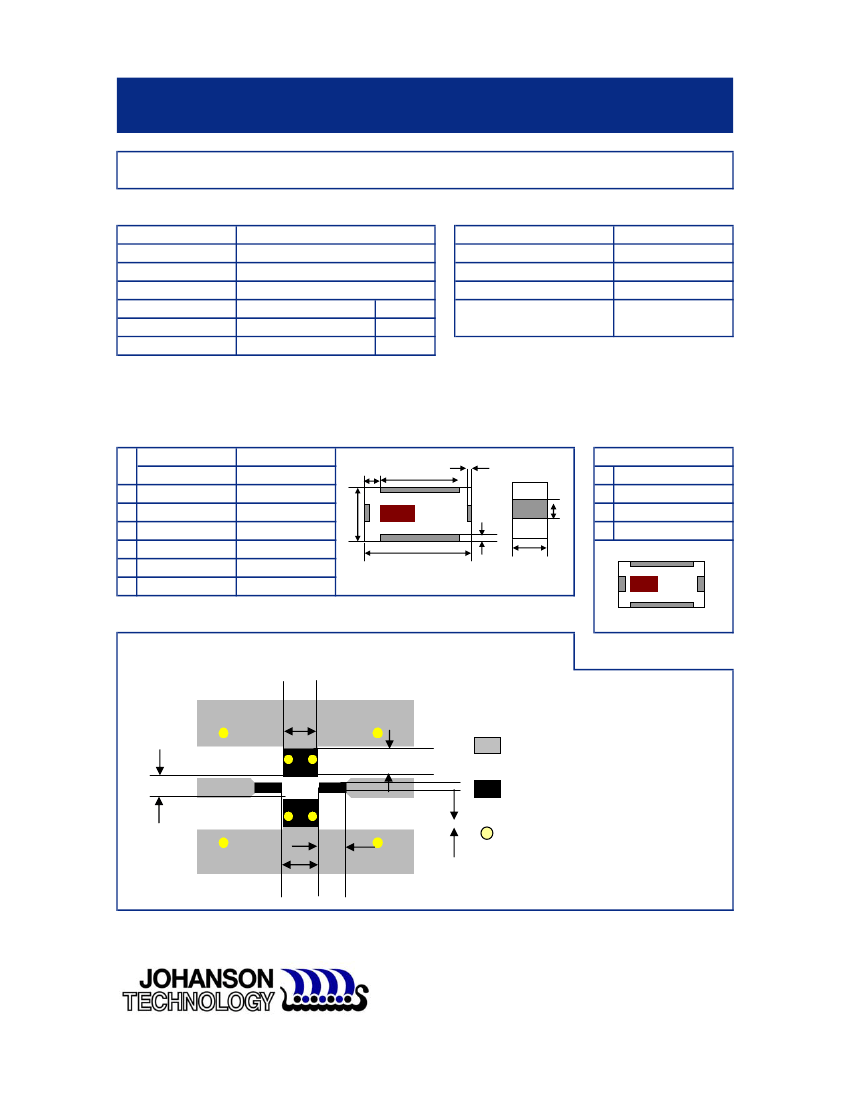

High Frequency Ceramic Solutions

3.6 GHz Wide Band Band Pass Filter

Detail Specification: 03/19/09

P/N 3600BP15M600

Page 1 of 2

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

3600BP15M600

3300 - 3900

1.8 dB max.

9.5 dB min.

0.1 - 2.6 GHz

4.4 - 6.0 GHz

6.0 - 9.9 GHz

15 dB

9 dB

20 dB

Input Power

Impedance

Reel Quanity

Operating Temperature

Storage Temperature

500 mW max.

Ω

4,000

-40 to +85°C

+5 to +35°C, Humidity

45-75%RH, 12 mos. max*

* - 1 yr shelf life in bag; 1 week shelf life out of bag;

Vacuum reseal unused reel

Mechanical Dimensions

0.079 ± 0.006

0.049 ± 0.004

0.037 ± 0.004

0.049 ± 0.006

0.012 ± 0.006

0.010 ± 0.006

0.014 ± 0.006

Terminal Configuration

2.00 ± 0.15

1.25 ± 0.10

0.95 ± 0.10

1.25 ± 0.15

0.30 ± 0.15

0.25 ± 0.15

0.35 ± 0.15

No.

Function

GND

OUT

GND

Mounting Considerations

Mount these devices with brown mark facing up.

Line width should be designed to provide 50

Ω

impedance matching characteristics.

Units: mm

1.30

Solder Resist

1.00

0.80

Land

0.35

Through-hole (φ0.35)

1.00

1.40

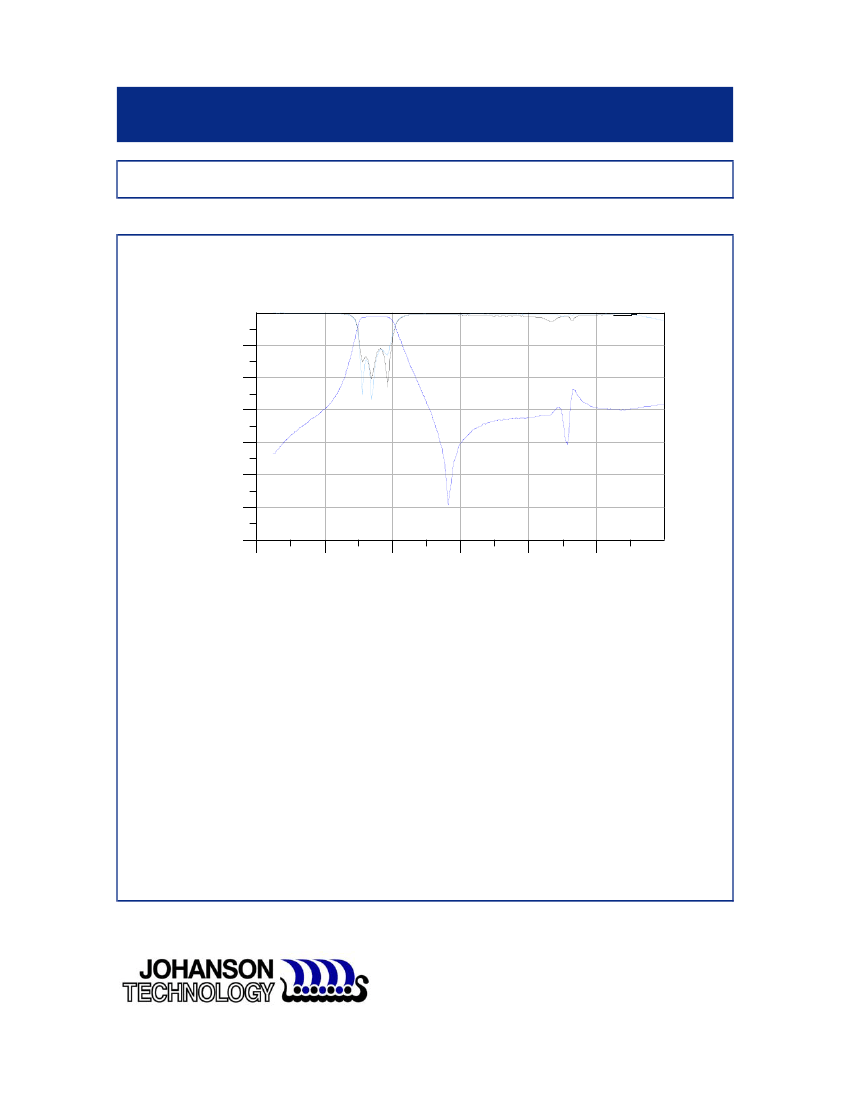

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
