1SMB5915A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1SMB5915A

1SMB5915A: DescriptionZener Diode,; CategoryDiscrete semiconductor diode; File Size21KB，2 Pages; ManufacturerSynSemi; Websitehttp://www.synsemi.com/

Download Datasheet Parametric View All

1SMB5915A Overview

Zener Diode,

1SMB5915A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Base Number Matches	1

Preview

Download Datasheet

View All

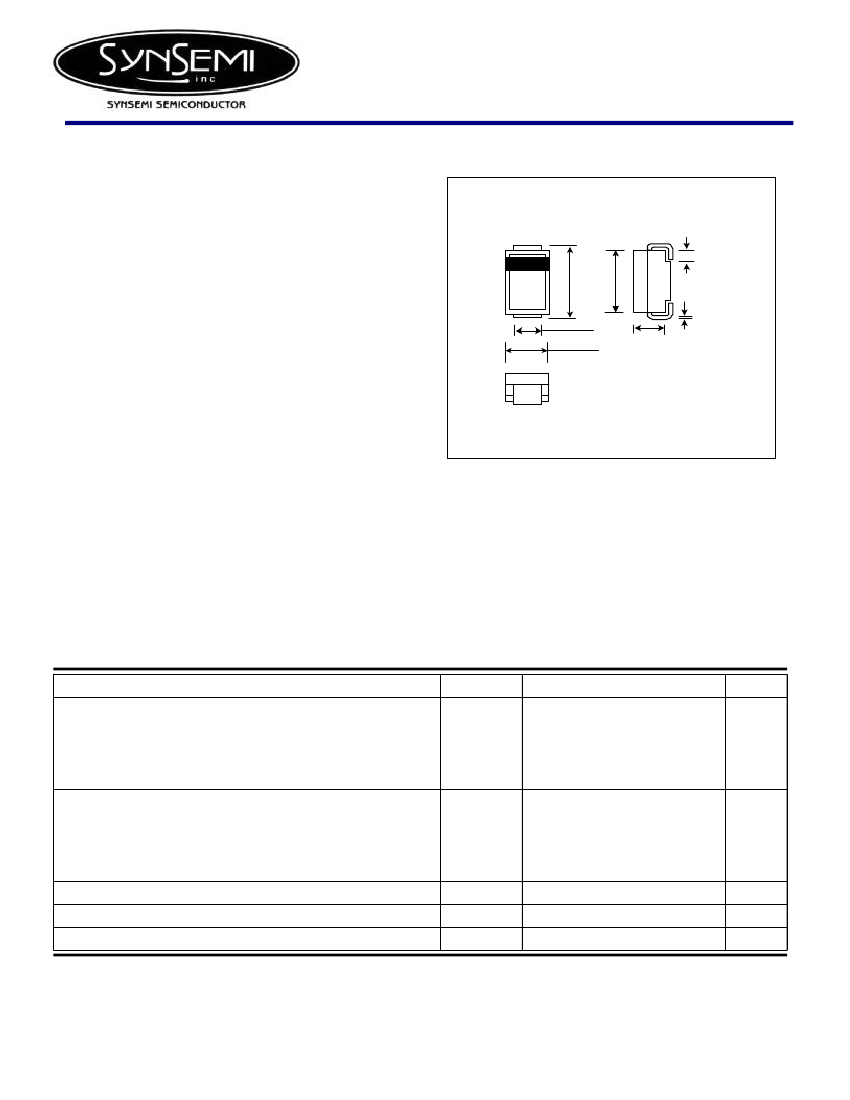

1SMB5913B - 1SMB5956B

: 3.3 - 200 Volts

: 3.0 Watts

FEATURES :

* Complete Voltage Range 3.3 to 200 Volts

* High peak reverse power dissipation

* Flat handling surface for accurate placement

* Low leakage current

* Pb / RoHS Free

SILICON ZENER DIODES

SMB (DO-214AA)

4.8

0.1 5

1.1

0 .3

5.4

0.2

2.0

0.1

3.6

0.1 5

2.3

0.2

0.22

0.07

MECHANICAL DATA

* Case : SMB (DO-214AA) Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Maximum Lead Temperature for Soldering Purposes :

260

C for 10 Seconds

* Leads : Modified L-Bend providing more contact area to bond pads.

* Polarity : Cathode indicated by polarity band.

* Mounting position : Any

* Weight : 0.093 gram

Dimensions in millimeter

MAXIMUM RATINGS

Rating at 25

C ambient temperature unless otherwise specified

Rating

Maximum Steady State Power Dissipation at T

= 75

°C,

Measured at Zero Lead Length

Derate Above 75

°C

Thermal Resistance From Junction to Lead

Maximum Steady State Power Dissipation at Ta = 25

°C

Measured at Zero Lead Length

Derate Above 25

°C

Thermal Resistance From Junction to Ambient

Maximum Forward Voltage at I

= 200 mA , T

= 30°C

Junction Temperature Range

Storage Temperature Range

Symbol

Value

3.0

Unit

550

mW/°C

°C/W

4.4

θJA

Tstg

226

1.5

- 65 to + 150

mW/°C

°C/W

Volts

°C

Page 1 of 2

Rev. 03 : March 25, 2005
