"High Frequency Ceramic Solutions"
5.4 GHz Balun
Detail Specification: 07/21/06
P/N 5400BL14B100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Balanced Impedence
Insertion Loss
Return Loss
Bulk
T&R
100% Tin
Tin / Lead
5400BL14B100
4900 - 5875
100
Ω
1.0 dB max.
9.5 dB min.
Suffix = S
Suffix = E
Suffix = None
Phase Difference
Amplitude Difference
Operating Temperature
Reel Quanity
Power Capacity
Eg. 5400BL14B100S
Eg. 5400BL14B100E
Eg. 5400BL14B100(E or S)
180° ± 10
1.5 dB max.
-40 to +85°C
4,000
0.5 watts max.
P/N
Suffix Termination
Style
Packaging
Style
Terminal Configuration
No.
1
Function
Unbalanced Port (IN)
DC feed + RF GND
Balanced Port (OUT1)
Balanced Port (OUT2)
GND
NC
Please consult Factory

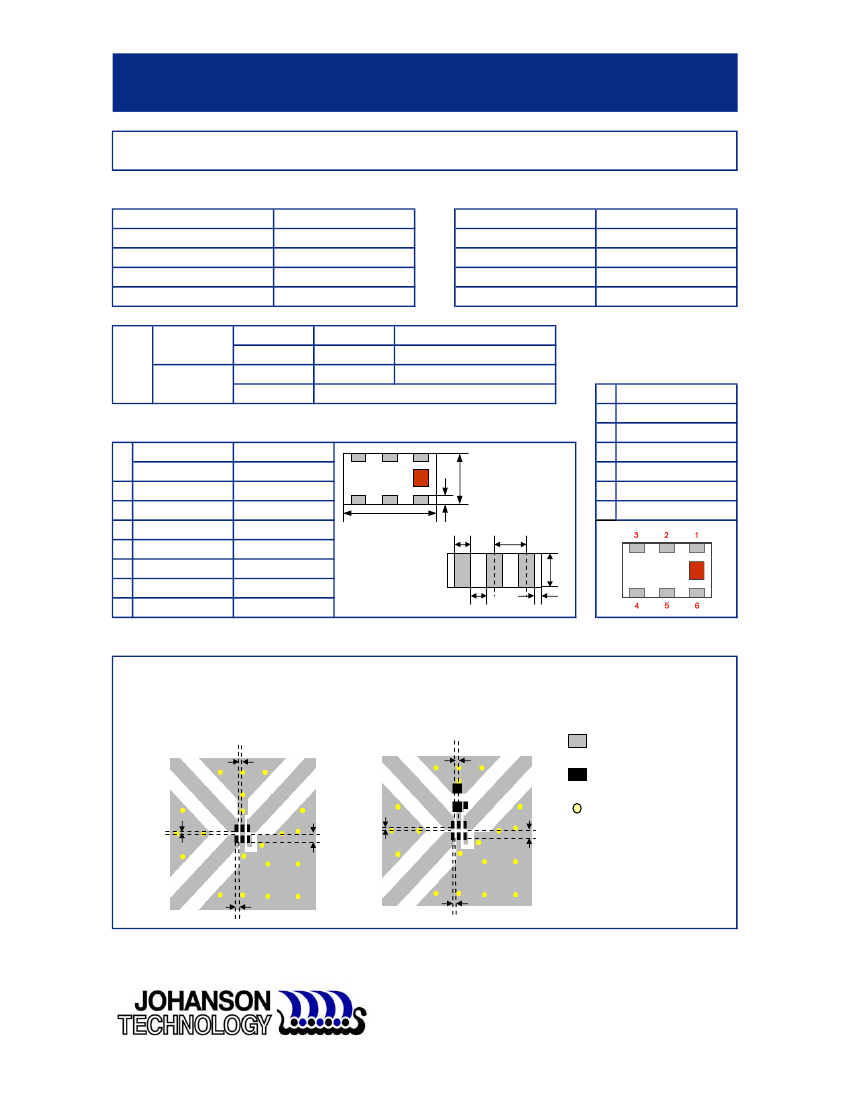

Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.063 ± 0.004
0.031 ± 0.004
0.024 ± 0.004
0.008 ± 0.004
0.008 +.004/-.006
0.006 ± 0.004
0.012 ± 0.004
0.020 ± 0.002
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.20 +0.1/-0.15
0.15 ± 0.10
0.30 ± 0.10
0.50 ± 0.05
g
b
T
L
W
2
3
4
5
6
a
p
c
Mounting Considerations
Mount these devices with brown mark facing up.
*
Line width should be designed to match 50
Ω
characteristic impedance, depending on PCB material and thickness.
**
By-pass capacitor should be connected when feeding DC power
Without DC Feed
0.25
With DC Feed
0.25
Solder Resist
*
0.3
*
0.55
0.3
*
*
Land
Through-hole (
Φ
0.3)
0.55
*
*
0.25
0.25
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
5.4 GHz Balun
Detail Specification: 07/21/06
P/N 5400BL14B100
Page 2 of 2

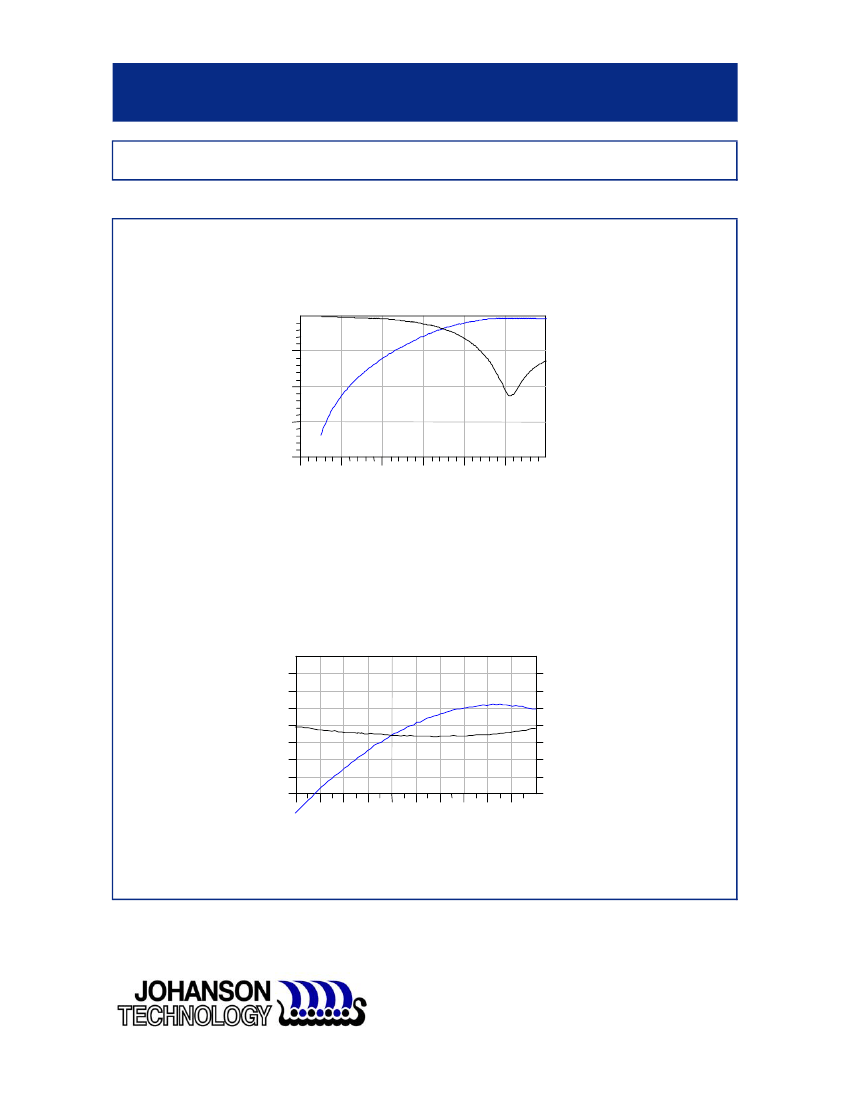

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
Insertion Loss & Return Loss
0
)
RL
-10
-20
-30
-40
0
1
2
3
freq, GHz
)
(dB)
IL
4
5
6
)
Amp. & Phase Differential
)
2.0
1.5
1.0
dif_amplitude
0.5
0.0
)
200
195
190
185
180
175
170
165
160
4.0 4.2 4.4 4.6 4.8 5.0 5.2 5.4 5.6 5.8 6.0
freq, GHz
dif_phase
(dB)
-0.5
-1.0
-1.5
-2.0
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
