"High Frequency Ceramic Solutions"
5400 MHz Balun
Detail Specification: 09/14/06
P/N 5400BL15B200
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Unbalanced Impedence
Balanced Impedence
Insertion Loss
Return Loss
Bulk
T&R
100% Tin
Tin / Lead
5400BL15B200
4900 ~ 5875
50
Ω
200
Ω
1.0 dB max.
9.5 dB min.
Suffix = S
Suffix = E
Suffix = None
Eg. 5400BL15B200S
Eg. 5400BL15B200E
Eg. 5400BL15B200(E or S)
Phase Difference
Amplitude Difference
Operating Temperature
Reel Quanity
Power Capacity
180° ± 10
2.0 dB max.
-40 to +85°C
4,000
3 watts max.
P/N
Suffix Termination
Style
Packaging
Style
Terminal Configuration
No.
1
Function
Unbalanced Port
GND
Balanced Port
Balanced Port
GND
NC
Please consult Factory

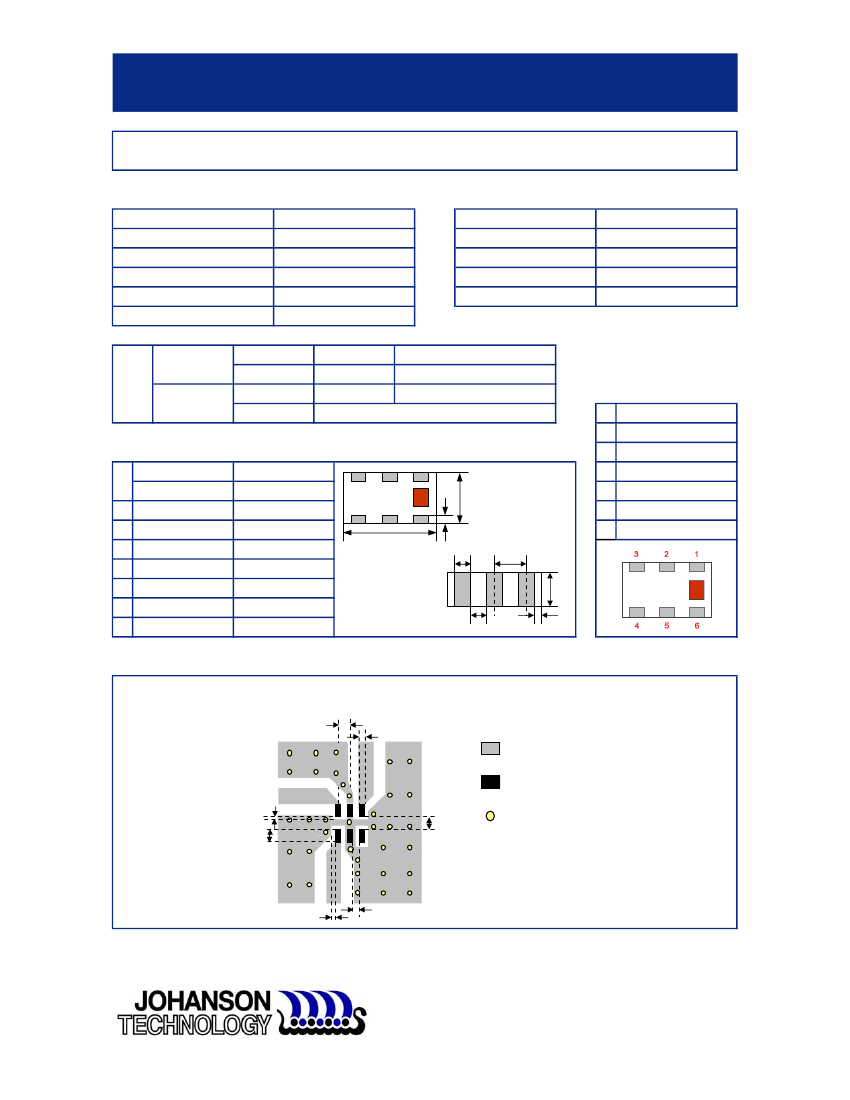

Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.079 ± 0.004
0.049 ± 0.004
0.035 ± 0.004
0.012 ± 0.004
0.008 ± 0.004
0.012 +.004/-.008
0.014 ± 0.004
0.026 ± 0.002
mm
2.00 ± 0.10
1.25 ± 0.10
0.90 ± 0.10
0.30 ± 0.10
0.20 ± 0.10
0.30
+0.1/-0.2
g
b
T
L
W
2
3
4
5
6
a
p
c
0.35 ± 0.10
0.65 ± 0.05
Mounting Considerations
Mount these devices with brown mark facing up.
*
Line width should be designed to match 50
Ω
characteristic impedance, depending on PCB material and thickness.
0.65
*
0.35
Solder Resist
Land
0.8
1.0
Through-hole (
Φ
0.3)
0.2
*
*
0.25
0.3
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
5400 MHz Balun
Detail Specification: 09/14/06
P/N 5400BL15B200
Page 2 of 2

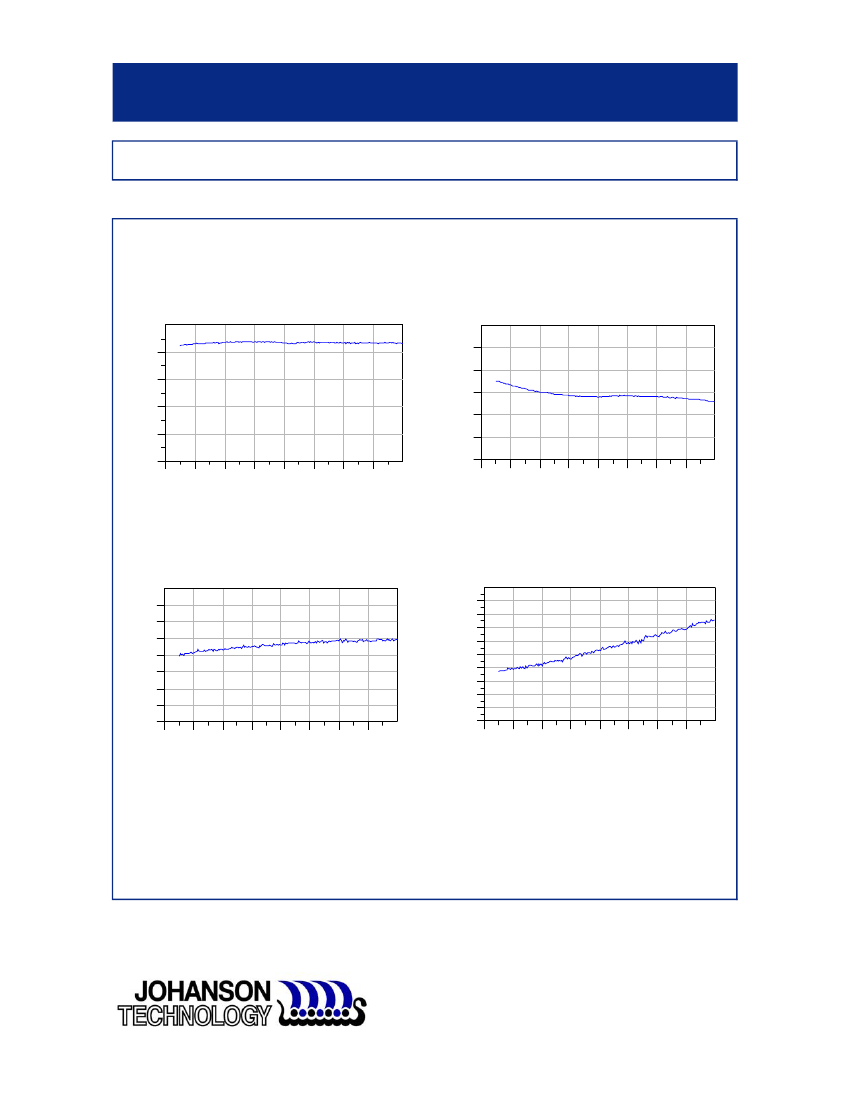

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
