L5415-30.000-20

Description
Parallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 4 PIN
CategoryPassive components    Crystal/resonator
File Size81KB,1 Pages
ManufacturerITTI Company Limited
Websitehttp://www.itti-co.com
Download Datasheet Parametric View All

L5415-30.000-20 Overview

Parallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 4 PIN

L5415-30.000-20 Parametric

Parameter NameAttribute value
package instructionSMD, 4 PIN
Reach Compliance Codeunknown
Is SamacsysN
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
load capacitance20 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency30 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical sizeL5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance50 Ω
surface mountYES
Base Number Matches1
Halogen
Free

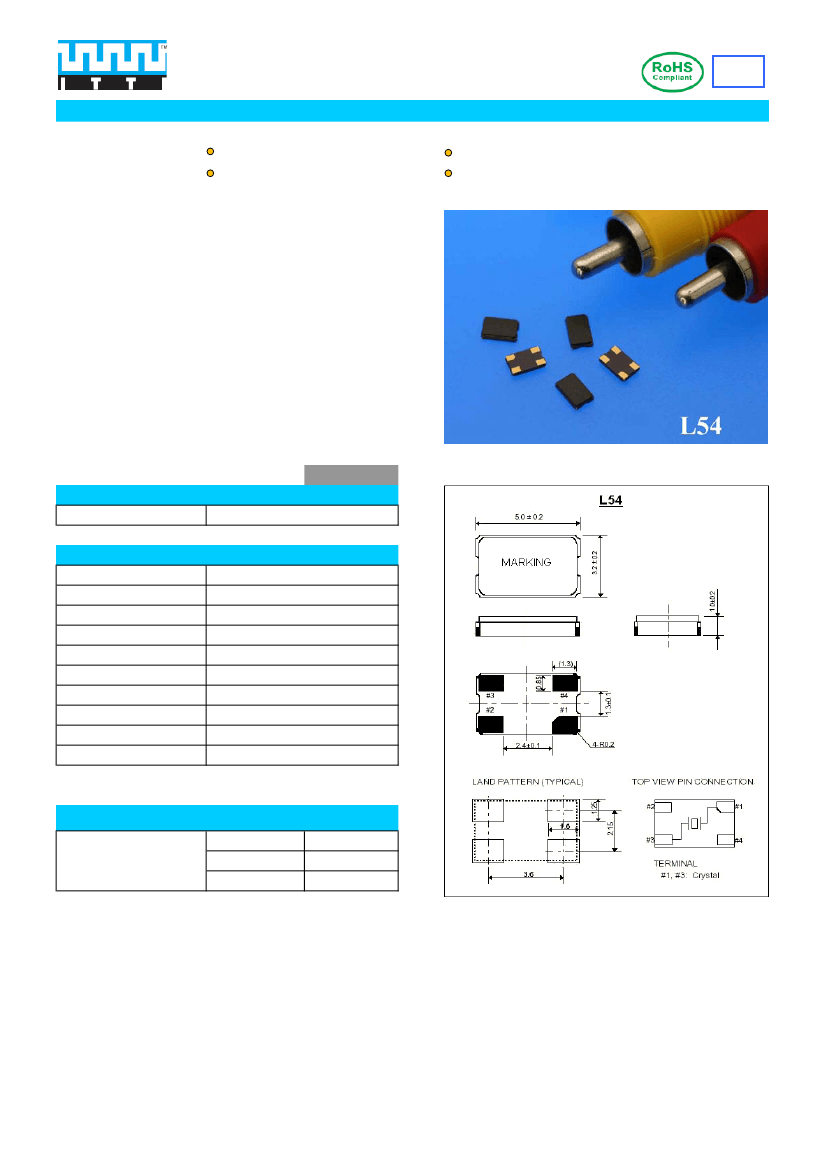

PRODUCTS
Typical Applications:
PCMCIA Cards
W-LAN
Crystal Unit (SMD)
Bluetooth
Portable Multimedia Devices
L54
(Glass Sealing Series)
Part Number: L54 (ppm) - Freq - CL
Example: L5415-24.000-8
Specification
Part No.
L54 (ppm) - Freq - CL
Example
L5415-24.000-8
L54
Dimension
(Unit: mm)
Specification
Frequency Range
Mode of Oscillation
Tolerance at 25°C
Temperature Stability
Operating Temperature Range
Load Capacitance
Storage Temperature Range
ESR
Drive Level
Aging
L54
12.0 to 50.0MHz
Fundamental
±15 to ±50ppm
±15 to ±50ppm
-10°C to +75°C / -40°C to +85°C
8 to 20pF / Series
-40°C to +85°C
* See Table Below
100μW Max.
±5ppm/year Max.
* L54 ESR Table
Oscillation Mode
Frequency Range
(MHz)
12.0 to 19.9
20.0 to 29.9
30.0 to 50.0
ESR
(Ohm)
120 Max.
70 Max.
50 Max.
Fundamental
