254002 Overview

160 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT

Preview

Download Datasheet

View All

Fuse Blocks and Clips

For NANO

2®

Surface Mount Fuses

OMNI-BLOK

Fuse Block

Molded Base Type

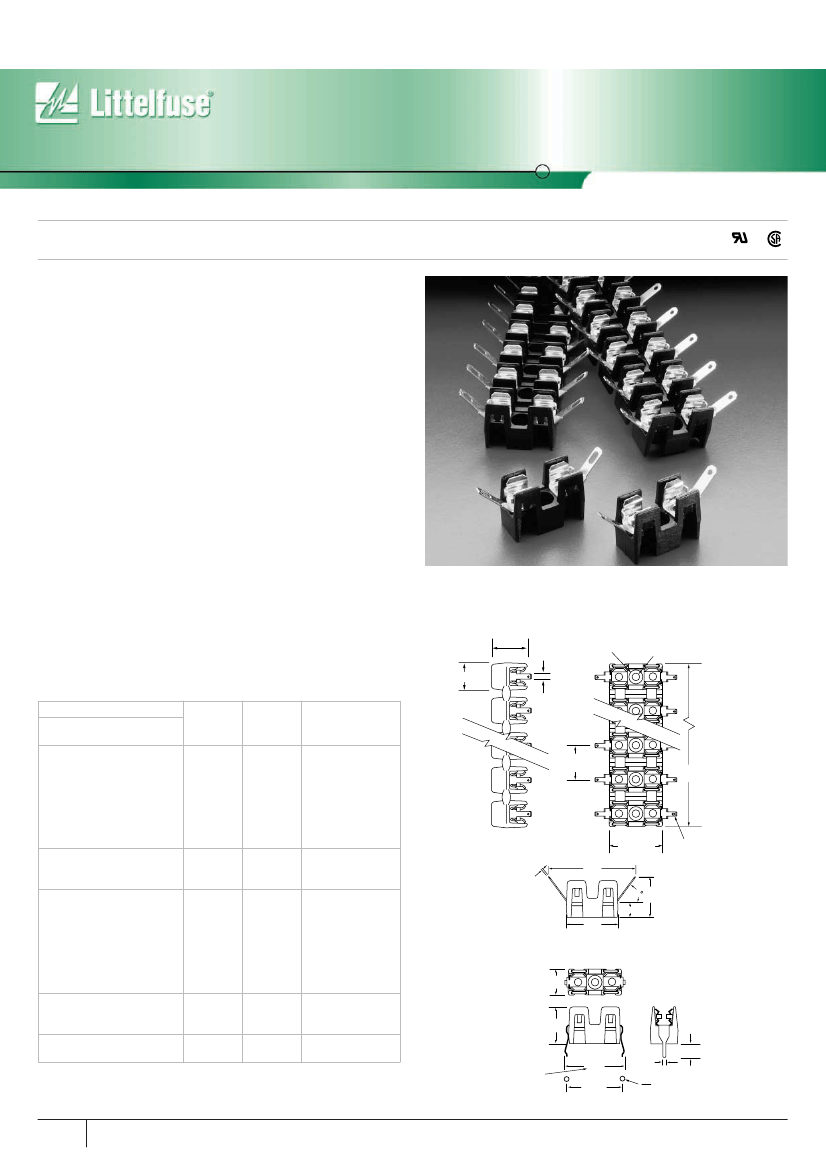

This low profile Omni-Blok

Fuse Block design is available with a

choice of solder type terminals, Q.C. terminals or P.C. board mountable

terminals. The PCB design is offered with either tin-plated brass termi-

nals for normal applications or tin-plated beryllium copper terminals for

use in caustic environments. These fuse blocks feature individual barriers

which reinforce the fuse clips while providing greater protection against

clip damage and electrical shock. The unique design permits self-

alignment of clips to fuse cap. This, plus a one-piece clip/terminal

assures low contact resistance. Multiple pole units may be broken

apart to obtain desired number of poles.

APPROVALS:

Recognized under the Components Program of

Underwriters Laboratories and Certified by CSA.

— 10A, 300V.

Q.C. Type

— 10A, 300V.

PCB Type

— 10A, 300V.

Dielectric Strength:

1500V., Minimum.

Clip/Terminals:

Tin-Plated Spring Brass, except pn 254121 is

Tin-Plated Beryllium Copper.

Base:

Black Thermoplastic, glass reinforced with UL 94V0

flammability rating.

Ambient Temperature:

– 40°C to +85°C.

SPECIFICATIONS:

Electrical:

Solder Type

Solder & Q.C. Types:

OPTIONS:

Other colors available on special order. Contact factory.

Two different style clips can be supplied for circuit identity or

polarization. Contact factory.

.50" typ.

.110" typ.

.190" x .187" deep

C bore with .050"

material remaining

.090" REF. DIA. Thru

PATENTED

ORDERING INFORMATION:

Catalog Number

Solder Type

Terminals

254

001

254

002

254

003

254

004

254

005

254

006

254

007

254

008

NEMA Style

.110" Q.C. Terminals

254

201

254

202

254

203

254

204

254

205

254

206

254

207

254

208

P.C.

Board Mount

254

101

254

121

Number

of Poles

Number

of Poles

Number

of Poles

Overall

Width (B)

0.35"

0.80"

1.25"

1.70"

2.15"

2.60"

3.05"

3.50"

Typical

Overall

Width (B)

0.35"

0.80"

1.25"

1.70"

2.15"

2.60"

3.05"

3.50"

Typical

Overall

Width (B)

0.35"

Typical

Clip/

Terminals

Brass

Clip/

Terminals

Brass

Clip/

Terminals

Brass

Beryllium Copper

.35" typ.

.450"

centers typ.

.70" typ.

1.22"

REF.

.016"

REF.

45 .53"

REF.

.24" REF.

.70"

REF.

Solder type terminals

feature elongated

hole on clip

P.C. Board Mount Type:

.35"

REF.

.50"

REF.

.19"

REF.

With 2AG

fuse installed

.81"

REF.

.730"

±.005"

Recommended Hole Pattern

.04"

REF.

.050"

DIA. HOLES

.055"

(2 LOCATIONS)

348

w w w. l i t t e l f u s e . c o m
