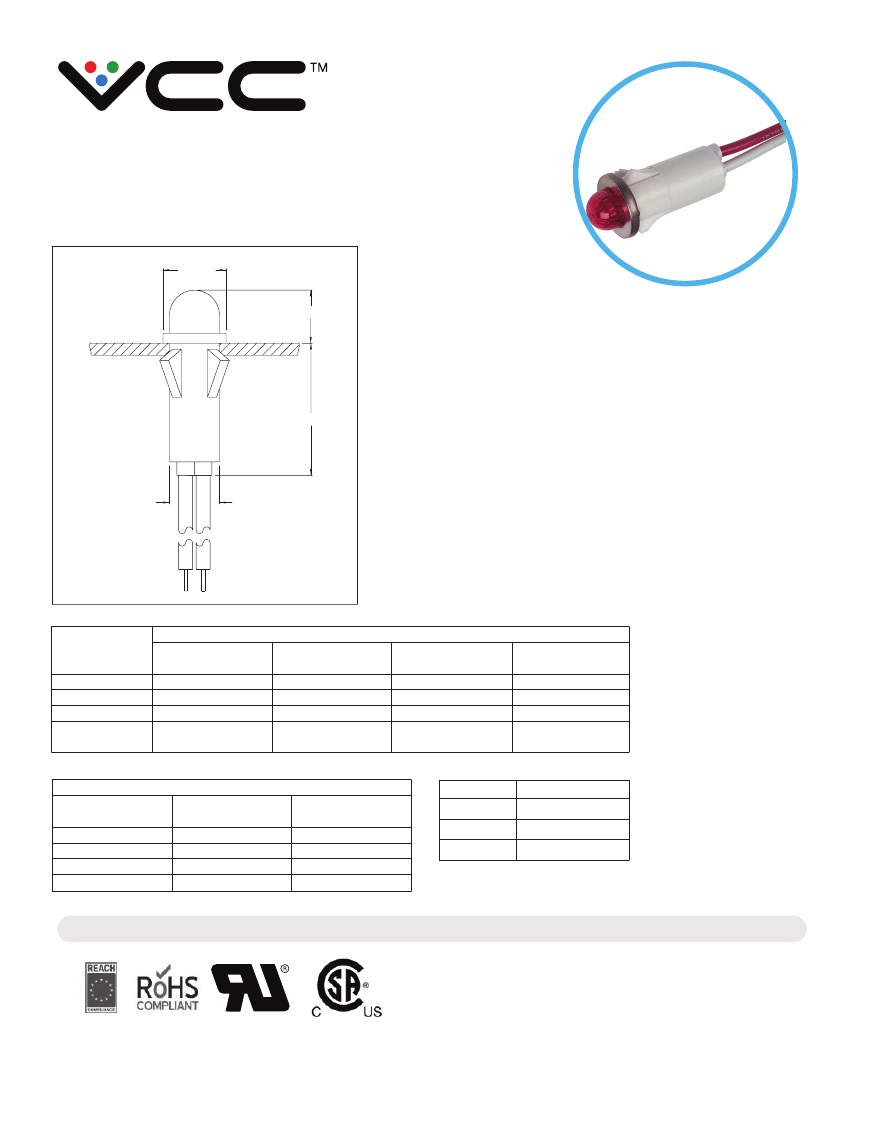

1091M Series Non-Relampable
LED Indicator Lights
All dimensions
in inches.
Ø.630
.380
Solid-state indicator lights complete with built-in current-limiting
resistor and rectifier diode.
Mounting: Will snap-fit into Ø.500/.505 hole in panels .020/.100
thick. Push-on speednut SN0461 also available.
Mounting hole pattern on page SP2.
1.130
Wire Leads: No. 22 AWG (105°C) 4.40/4.80 long,
stripped .430/.570
Lens: Polycarbonate
Anode(+): Red lead
Ø.500
MAX.
Bezel: Polished stainless steel.
Housing: White Nylon
To use 24V model: Beyond 32VAC add
30 ohms per volt; beyond 24 VDC add 50 ohms per volt.
Use 1/2W resistor up to 50V; 1W resistor for 50V to 70V;
2W resistor for 75V to 125V. Do not use beyond 125V.
LE D Solid S tate
Model No.
(12V )
1091M1-12V
1091M5-12V
1091M7-12V
390
Indicator
Model No.
(24V )
1091M1-24V
1091M5-24V
1091M7-24V
1000
Lens C olor
R ed
G reen
Y ellow
Internal R es is tor
(ohms )
Model No.
(6V )
1091M1-6V
1091M5-6V
-
150
Model No.
(105-125 V AC *)
1091M1-125V AC
1091M5-125V AC
1091M7-125V AC
(2) 3.9K 1/2W*
(One Internal)
Incorporates LE D*
4304H1
4304H5
4304H7
*125 VAC supplied with
6" white wire, stripped 1/2"
with external 3.9K 1/2 watt
resistor attached to one lead,
covered with shrink tubing
insulation.
* Also incorporates 1N4004
(400 P.I.V.) rectifier diode.
V oltage T able
Nominal
6V
12V
24V
125 V AC
V AC
5 to 11
10 to 20
22 to 32
105 to 125
VD C
3.5 to 6.5
6 to 13.5
12 to 24
-
Lens C olor
R ed
G reen
Y ellow
Compliance & approvals
Compliance & Approvals
the first call for illuminated components
www.vcclite.com
1.800.522.5546
08/16 Rev 1
