Bussmann
®
Boric Acid Fuses
Medium Voltage
BBU
General
• The BBU power fuse is a Boric Acid, expulsion style
fuse unit.
• Provides a low initial cost alternative to refillable fuses
in indoor applications.
• Utilizes calibrated silver elements, boric acid for its inter-
rupting media, and a spring & rod mechanism.
• The housing is a fiberglass reinforced resin tube with plated
copper contacts.
• Available in 3 maximum voltage classes:
17kV, 27kV & 38kV

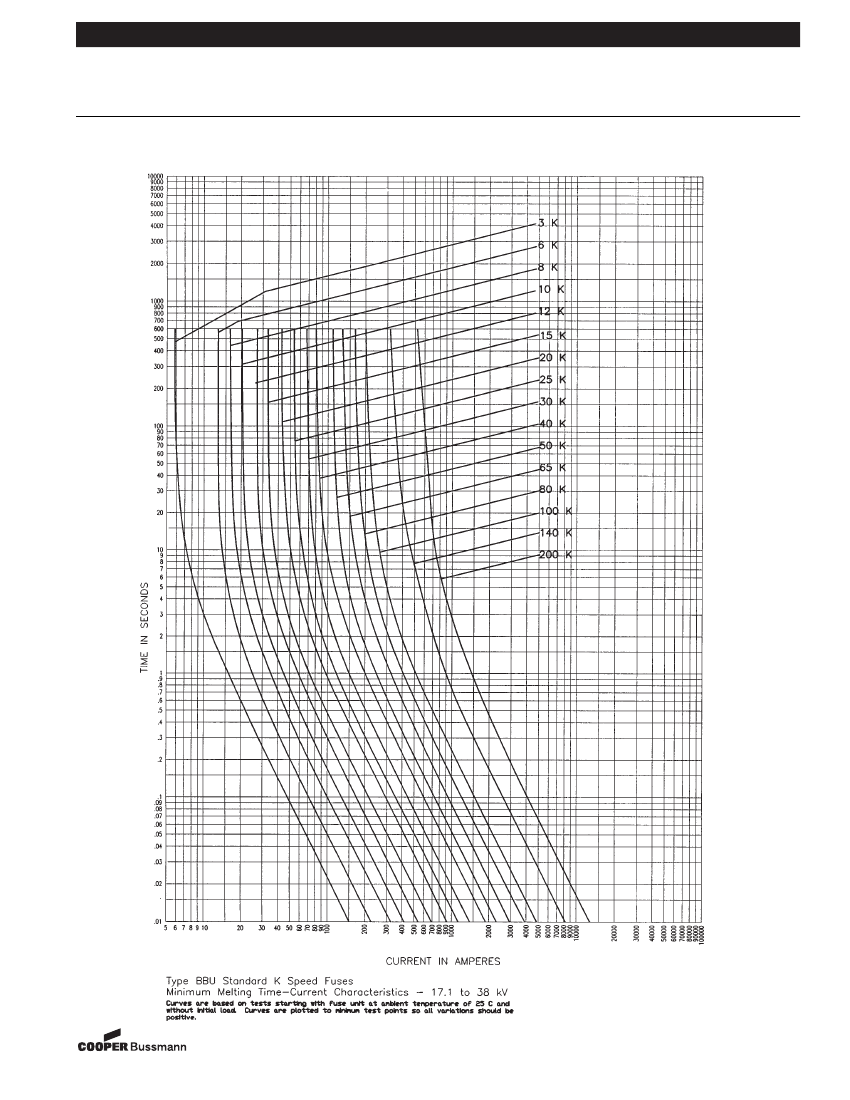

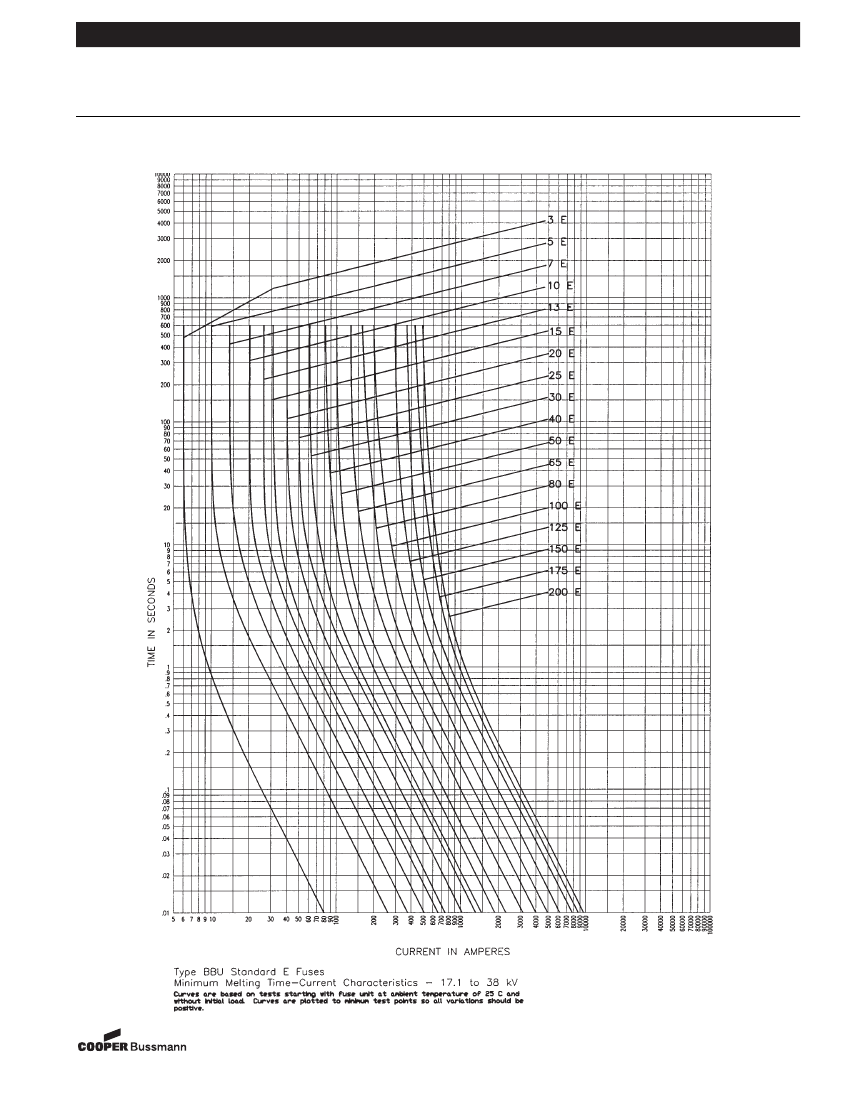

• Available in 3 speed variations:
E (Standard) SE (Slow E) & K (Fast)
• Visual Indicating with use of end fittings.

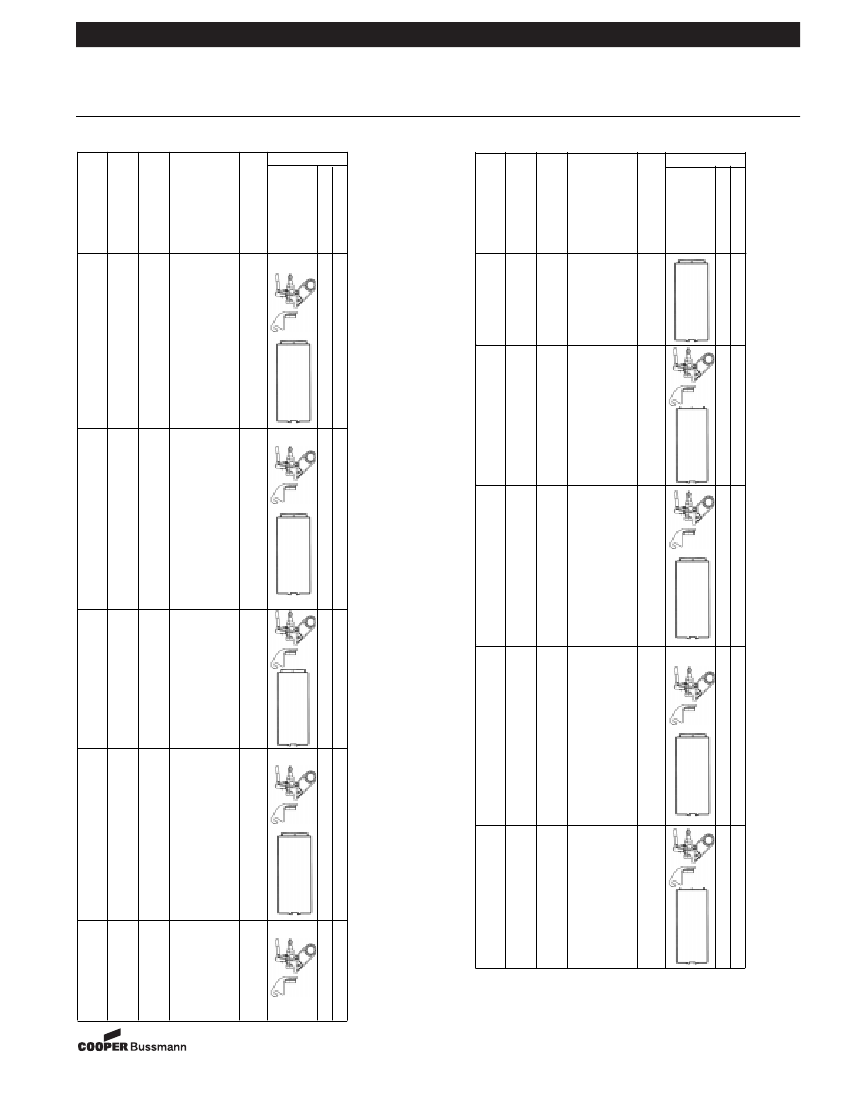

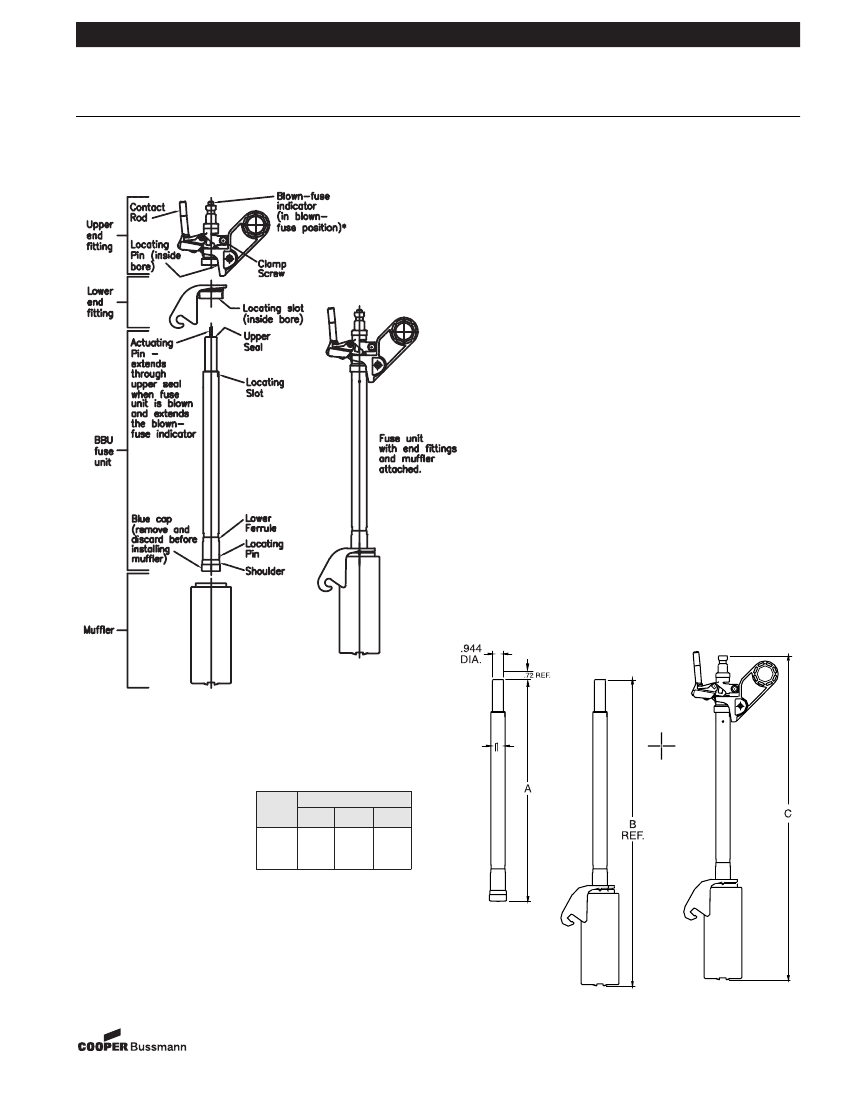

• End Fittings:
• End fittings are required to complete the electrical
connection between the fuse unit and the live parts
and mounting.
• The indoor fittings accept a Muffler attachment to
limit noise and contamination to indoor equipment.
The open fuse indicator located on the top end fit-
ting provides visual indication on a faulted fuse unit.
Catalog Symbol:
BBU
Medium Voltage Expulsion Fuse
Fuse Class:
E (Standard), SE (Slow E) & K (Fast)
Voltage Rating:
17kV, 27kV & 38kV
Interrupting Ratings:
17kV - 14kA
27kV - 12.5kA
38kV - 10kA
Boric Acid, expulsion style fuses meet:
• ANSI C37.40 – Service Conditions and Definitions
• ANSI C37.41 – Power Fuse Design and Testing
• ANSI C37.42 – Distribution Fuse Ratings and Specifications
• ANSI C37.46 – Power Fuse Ratings and Specifications
• ANSI C37.48 – Power Fuse Application, Operations and
Maintenance
Applications
The BBU Boric Acid fuse provides effective protection for cir-
cuits and equipment which operate on voltage systems up to
34,500V. Typical usage is on industrial distribution systems for:
• Power Transformers
• Feeder Circuits
• Distribution Transformers
• Metal Enclosed Switchgear
• Pad Mounted Switches
5-30-02
SB02199
Form No. BBU
Page 1 of 13
Data Sheet: 1123
