DSM7T Series
Thin Surface Mount Single Digit
7-Segment LED Numeric Display
DSM7TA56106T - 0.56” (14.22mm) Digit Height
Emitting Color: Blue (InGaN)
Application
• People Movers
• Home Appliances
• Medical Devices
• Industrial Devices
• Automation and Controls
• Light Control
• IoT
• Transportation
• Food Service Appliances
Key features
•1-digit seven segment led numeric display
• Includes a decimal point (DP), useful when
two or more seven-segment displays are
connected to each other to display decimals
• White segments and black surface
• Substrate: InGaN
• Outer dimensions: 17.0 x 12.5 x 3.85mm
• High light output
• Excellent character appearance
• Quality tested with the highest industry
standard
• Side by side mounting allows space saving
• Provides the ability to reduce overall
thickness of PCB, with major cost savings
• Available in 3 different digit heights and widths
• Automation-friendly tape and reel
• Technically and mechanically rugged
• Small and light, easy assembly
• Life expectancy: up to 50,000 hours
• Lower power consumption
•
Allow top mount and reverse mount design
• Mechanically rugged
• Moisture Sensitive Level (MSL): 2a
• Available in blue, red and pure green
• Polarity: common anode
• Easy mounting on PC boards or sockets
• Low current operation
• Degree of protection IP50 (Dust-Protected)
Your first call for illuminated components
www.vcclite.com 1.800.522.5546
12/17 Rev2
DSM7TA56106T
|
Page 1 of 6
Ordering Data
Series
D
Mounting
Type
SM
Number of Thickness Type Polarity: Common Digit
Segments
Height
7
28
T
A
Number
of Digits Color
1
01
Packaging
D
Series
Display
Mounting Type
SM
SMD
Number of Segments
7
7 - Segments
Thickness Type
T
Thin
U*
Ultra Thin
Polarity: Common
A
Anode
Digit Height
20**
0.20"
28
0.28"
0.30"
30**
0.39"
39
0.56"
56
0.70"
70**
01
05
06
Color
Red
Pure Green
Blue
Packaging
Bulk**
T
Tape & Reel
Number of Digits
1
1 digit
*Please refer to DSM7U product datasheet for Ultra Thin Version
**Only available for DSM7U Version

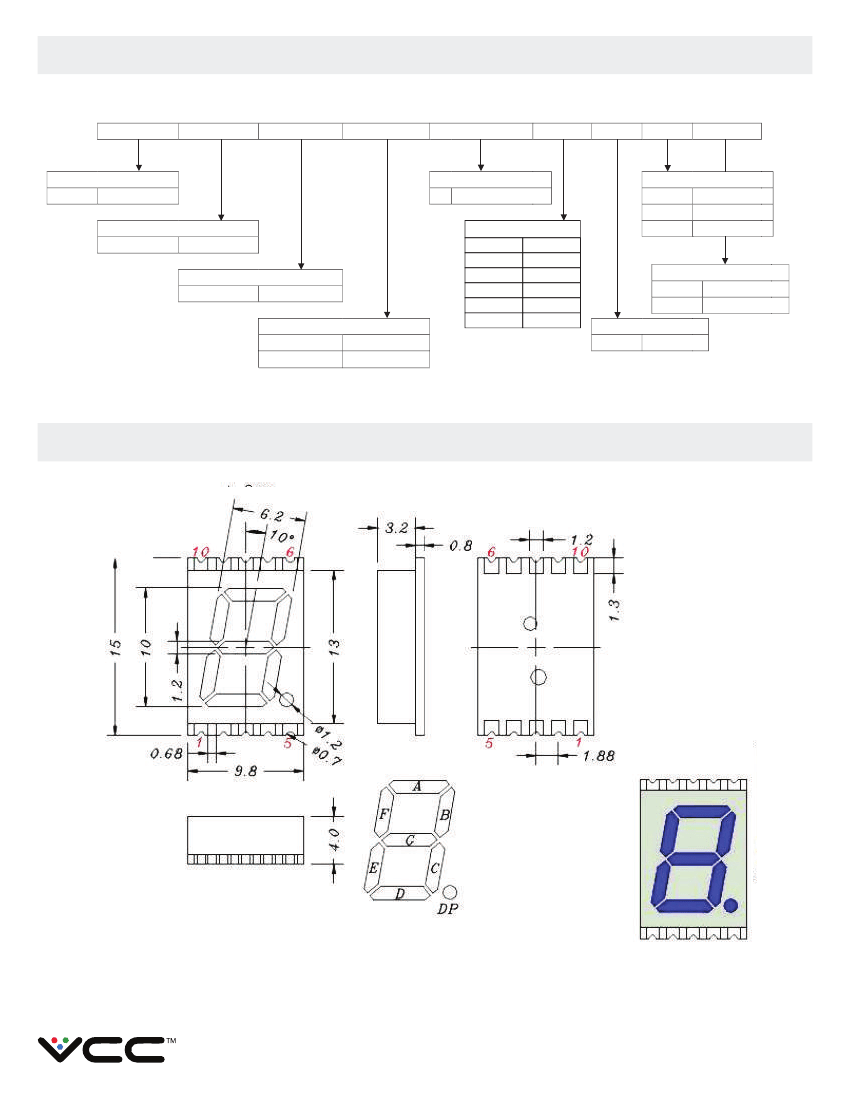

Dimensions and Internal Circuit Diagram
U
Dimensions in millimeters
Tolerance is ±0.25mm unless otherwise noted
Your first call for illuminated components
www.vcclite.com 1.800.522.5546
12/17 Rev2
DSM7TA56106T
|
Page 2 of 6
Internal Circuit Diagram
Pin Connections (Common Anode)
Connection
PIN No
1
CATHODE E
2
CATHODE D
3
COMMON ANODE
4
CATHODE C
5
CATHODE DP
6
CATHODE B
7
CATHODE A
8
COMMON ANODE
9
CATHODE F
10
CATHODE G
Product Specifications
Absolute
Maximum Ratings while Ta=25°C
Parameter
Forward Current
Reverse Voltage
Minimum (m)
Maximum (M)
20
5
+85
+100
60
Unit
mA
V
°C
°C
mA
I
F
/
Seg
V
R
/
Seg
--
--
-30
-40
--
Operating Temperature
T
OPR
Storage Temperature
T
STG
Peak Current
I
FM
/
Seg
(Notice: 1/10th duty cycle, 0.1ms pulse width)
Electrical-Optical Characteristics while Ta=25°C
Parameter
Forward Voltage
V
F
/
Seg
Reverse Current
I
R
/
Seg
Wavelength λP
Full Width at Half
Maximum Δλ
Luminosity
I
V
/
Seg
Viewing angle
Condition
Unit
V
μA
nm
nm
Minimum
2.6
--
465
--
Typical
3.0
--
470
15
Maximum
3.6
50
475
--
I
F
=20mA
V
R=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
mcd
80
125
175
wide viewing angle
Your first call for illuminated components
www.vcclite.com 1.800.522.5546
12/17 Rev2
DSM7TA56106T
|
Page 3 of 6

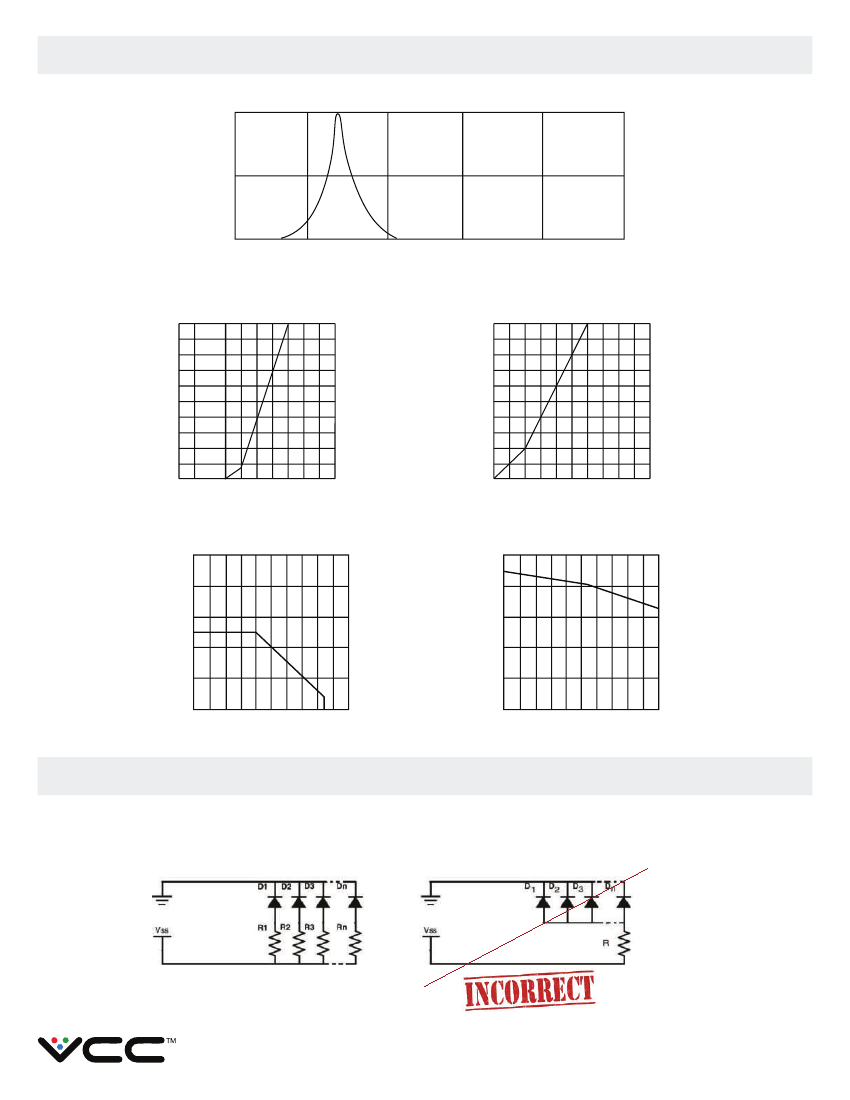

Product Specifications
Relative Luminous Intensity
@ 20mA
Relative Spectral
1.0
0.5
0
400
450
500
550
600
650
Wavelength (nm)
Forward Current vs. Forward Voltage
50
Forward Current If(mA)
40
30
20
10
0
2.0 2.4 2.8 3.2 3.6 4.0
Forward Voltage (V)
Forward Current Vs. Temperature
50
40
30
20
10
0
20 40
60 80 100
Temperature °C
Relative Luminous Intensity vs. Forward current
5.0
Relative Luminous Intensity
4.0
3.0
2.0
1.0
0
0
10 20 30 40 50
Forward Current (mA)
Relative Luminous Intensity
Forward Current (mA)
Luminous Intensity vs. Temperature
2
1
0.5
0.2
0.1
-30 -10 0 10
30
50
70
Temperature °C
Circuit Design Notes
• Always use current limit resistors when necessary
•
LEDs could be electrically connected in parallel, with each
current limiting resistor
Correct
Your first call for illuminated components
www.vcclite.com 1.800.522.5546
12/17 Rev2
DSM7TA56106T
|
Page 4 of 6
Recommended Reflow Soldering Profile
Typical Reflow Soldering Profile
255
240
245
°C
+5
Peak Temperature
(473°F)
Temperature (°C)
217
200
10 sec.
Max.
150
Preheat
60-180 sec.
Reflow Zone
60-150 sec.
25
Time (Sec.)
Profile Feature
Preheat Temperature Min
Preheat Temperature Max
Preheat Time
Reflow Starting Temperature
Time Spent During Reflow
Reflow Peak Temperature
Typical Parameters
150 °C
(302°F)
200 °C
(392°F)
60 -180 sec.
217 °C
(423°F)
60 -150 sec.
245 °C
(473°F)
Manual soldering is suggested
- Use soldering irons of which power is less than 30 Watt.
- Keep the temperature of soldering irons below 360 °C
- Only one soldering is allowed on each bonding pad.
- The maximum time from when a soldering iron comes into contact with the
parts that are to be connected until the joint is finished should not exceed
three seconds.
- Perform other procedures after the soldered pad cools down.
Suggested storage conditions: 25°C +/-10°C (77°F +/-50°F),
relative humidity 65% RH +/- 20% RH.
