3101-6120-02: Description0MHz - 18000MHz RF/MICROWAVE TERMINATION; CategoryWireless rf/communication Radio frequency and microwave; File Size86KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3101-6120-02 Overview

0MHz - 18000MHz RF/MICROWAVE TERMINATION

3101-6120-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TNC
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

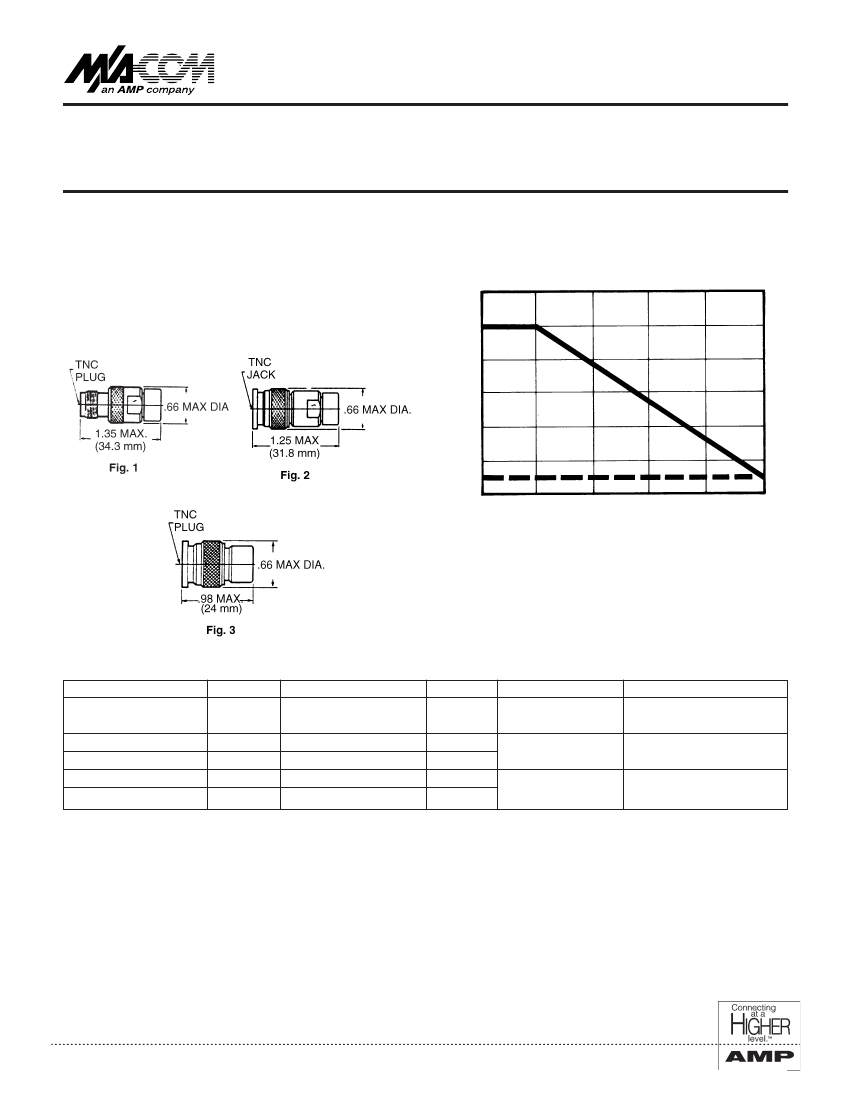

TNC Terminations

V2.00

Features

q

Typical Temperature Derating

POWER DERATING

120

q

Power:

2.0 Watts Average

Finish:

Passivated Stainless Steel

100

POWER (%)

80

60

40

20

10

0

0°

25°

50°

75°

100°

125°

TEMPERATURE (°C)

Part Number (Plug)

3101-6100-00

3101-6120-02

3101-6124-02

3101-6121-02

3101-6125-02

Figure

1

3

3*

3

3*

Part Number Jack

3102-6100-00

-

Figure

2

-

Frequency (GHz)

dc - 18

dc - 12.4

VSWR

dc to 12.4 GHz 1.15

12.4 to 18 GHz 1.25

dc to 12.4 GHz 1.15

12.4 to 18 GHz 1.25

dc to 4 GHz 1.15

4 to 12.4 GHz 1.20

*With 2” monel bead chain attached to Nickel Plated Brass eyelet with 0.130 I.D. clearance hole end adds to lenghth of device.

M/A-COM Division of AMP Incorporated

s

North America: Tel. (800) 366-2266, Fax (800) 618-8883

s

Asia/Paciﬁc: Tel. +85 2 2111 8088, Fax +85 2 2111 8087

s

Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Speciﬁcations subject to change without notice.

3-10

3101-6120-02 Related Products

	3101-6120-02	3101-6124-02	VJ1812A470KXXAJ2M	74HC237-Q100	3101-6121-02
Description	0MHz - 18000MHz RF/MICROWAVE TERMINATION	0MHz - 18000MHz RF/MICROWAVE TERMINATION	CAPACITOR, CERAMIC, MULTILAYER, 25 V, C0G, 0.000047 uF, SURFACE MOUNT, 1812, CHIP, HALOGEN FREE AND ROHS COMPLIANT	3-to-8 line decoder, demultiplexer with address latches	0MHz - 12400MHz RF/MICROWAVE TERMINATION
Reach Compliance Code	unknown	unknown	unknown	-	unknown
Other features	TNC	TNC	MIL-PRF-55681	-	TNC
structure	COAXIAL	COAXIAL	-	-	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	-	-	33.01 dBm
Maximum operating frequency	18000 MHz	18000 MHz	-	-	12400 MHz
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	-	-	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.25	1.25	-	-	1.2
Objectid	-	1442945584	1212338070	-	1442945581
