1. MATERIAL:
BODY: PBT, UL94V-0
COVER: PBT, UL94V-0
STRAIN RELIEF: STAINLESS
STEEL
CONTACTS: BeCu ALLOY.
2. PLATING:
50-150 " NICKEL UNDERPLATE
30 = 30 " MIN. GOLD ON WIPING
AREA
00 = FLASH GOLD ON WIPING AREA.
3. RIBBON CABLE COMPATIBILITY:
GENERAL:
0.025" PITCH PVC, 30 AWG,
SOLID OR 7 STRAND.
RECOMMENDED:
3M 3447 AND 3754 SERIES
CABLE.
4. MATING COMPATIBILITY:
3M 1.27mm (0.050"),
SERIES 452 HEADER WITH
LATCH/EJECT OPTION.
TECH SHEET 2437
5. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE
REGULATORY INFORMATION
APPENDIX (RIA) IN THE
"ROHS COMPLIANCE" SECTION
OF WWW.3MCONNECTORS.COM
FOR COMPLIANCE INFORMATION
(RIA E1 & C1 APPLY)
6. IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND THAT
CONTAINED IN THE PRODUCT
SPECIFICATION, THE PRODUCT
SPECIFICATION TAKES PRECEDENT.
7. REFERENCE RELATED DOCUMENTS:
PRODUCT SPECIFICATION:
3M DOC. ID# 78-5102-0091-4.
8. TOOLING AND INSTALLATION
INSTRUCTIONS:
3M DOC. ID# 78-9101-8937-8.
9. OTHER PIN COUNTS AVAILABLE
UPON REQUEST. CONTACT 3M.
10 PACKAGING:
SOCKET: TRAY
COVER: BAG
REVISION
DRAWING NUMBER

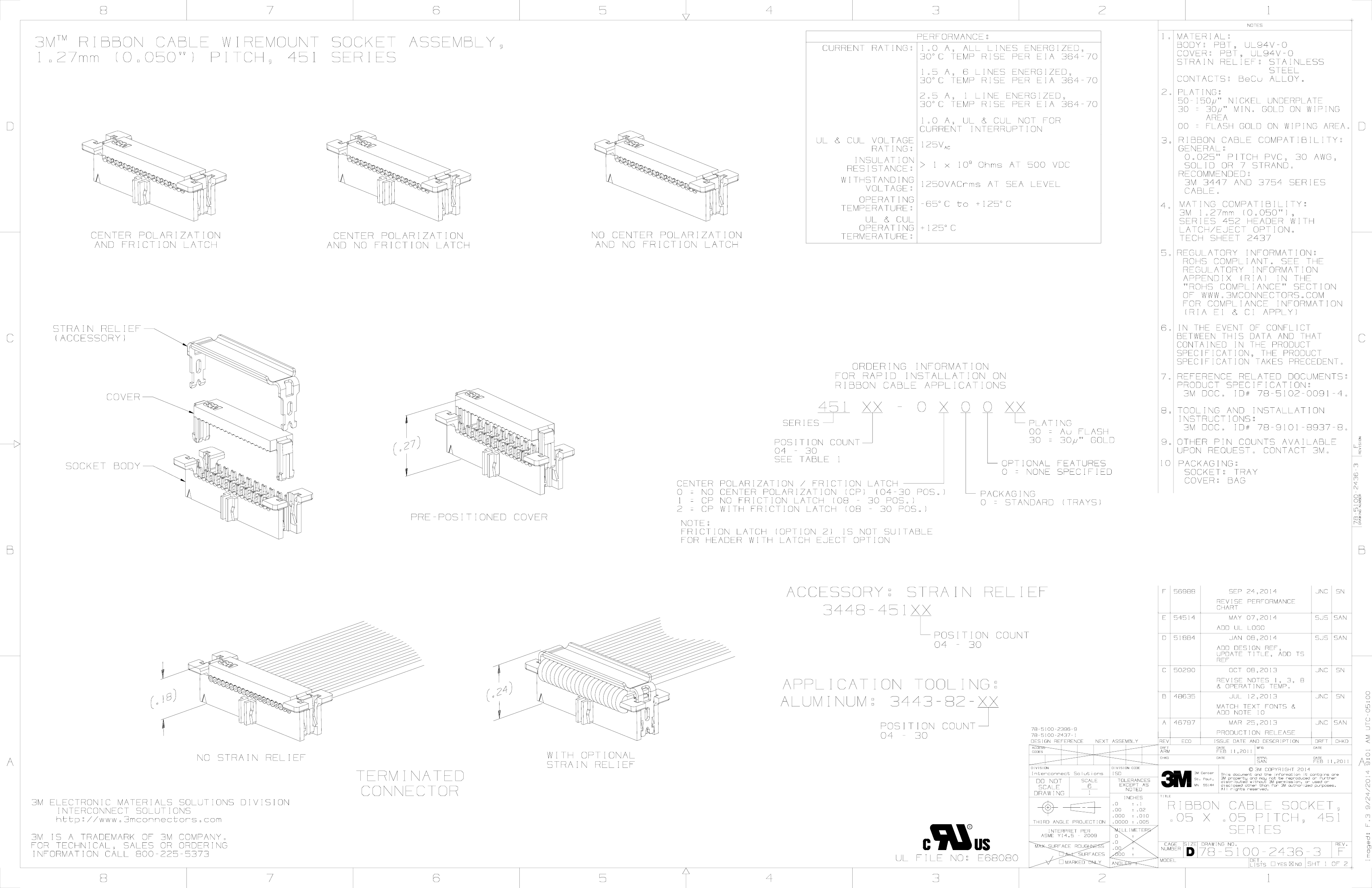

3M RIBBON CABLE WIREMOUNT SOCKET ASSEMBLY,
1.27mm (0.050") PITCH, 451 SERIES
PERFORMANCE:
CURRENT RATING: 1.0 A, ALL LINES ENERGIZED,
30 C TEMP RISE PER EIA 364-70
1.5 A, 6 LINES ENERGIZED,
30 C TEMP RISE PER EIA 364-70
2.5 A, 1 LINE ENERGIZED,
30 C TEMP RISE PER EIA 364-70
D
UL & CUL VOLTAGE
RATING:
INSULATION
RESISTANCE:
WITHSTANDING
VOLTAGE:
OPERATING
TEMPERATURE:
UL & CUL
OPERATING
TERMERATURE:
1.0 A, UL & CUL NOT FOR
CURRENT INTERRUPTION
125V
AC
> 1 x 10
9
Ohms AT 500 VDC
1250VACrms AT SEA LEVEL
-65 C to +125 C
+125 C
D
CENTER POLARIZATION
AND FRICTION LATCH
CENTER POLARIZATION
AND NO FRICTION LATCH
NO
CENTER POLARIZATION
AND NO FRICTION LATCH
C
STRAIN RELIEF
(ACCESSORY)
ORDERING INFORMATION
FOR RAPID INSTALLATION ON
RIBBON CABLE APPLICATIONS
COVER
C
451 XX - 0 X 0 0 XX
SERIES
.27
SOCKET BODY
CENTER
0 = NO
1 = CP
2 = CP
PRE-POSITIONED COVER
POLARIZATION / FRICTION LATCH
CENTER POLARIZATION (CP) (04-30 POS.)
NO FRICTION LATCH (08 - 30 POS.)
WITH FRICTION LATCH (08 - 30 POS.)
PACKAGING
0 = STANDARD (TRAYS)
NOTE:
FRICTION LATCH (OPTION 2) IS NOT SUITABLE
FOR HEADER WITH LATCH EJECT OPTION
B
ACCESSORY: STRAIN RELIEF
3448-451XX
POSITION COUNT
04 - 30
F
56988
SEP 24,2014
REVISE PERFORMANCE
CHART
JNC
SN
E
D
54514
51884
MAY 07,2014
ADD UL LOGO
JAN 08,2014
ADD DESIGN REF,
UPDATE TITLE, ADD TS
REF
SJS SAN
SJS SAN
C
50290
OCT 08,2013
REVISE NOTES 1, 3, 8
& OPERATING TEMP.
JNC
SN
B
48635
JUL 12,2013
MATCH TEXT FONTS &
ADD NOTE 10
JNC
SN
POSITION COUNT
04 - 30
A
78-5100-2396-9
78-5100-2437-1
DESIGN REFERENCE
ACCESS
CODES
46797
ECO
MAR
25,2013
JNC SAN
DRFT
DATE
DATE
PRODUCTION RELEASE
NEXT ASSEMBLY
REV
DRFT
ISSUE DATE AND DESCRIPTION
DATE
MFG
CHKD
A
NO
STRAIN RELIEF
WITH OPTIONAL
STRAIN RELIEF
ARM
CHKD
FEB 11,2011
DATE
APPVL
SAN
DIVISION
DIVISION CODE
FEB 11,2011
3M ELECTRONIC MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
TERMINATED
CONNECTOR
R
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.02
.000
.010
.0000
.005
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
6
1
55144
C
3M COPYRIGHT 2014
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
RIBBON CABLE SOCKET,
.05 X .05 PITCH, 451
SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
78-5100-2436-3
DET.
LISTS
YES
NO
F
SHT 1 OF 2
8
7
6
5
4
3
2
1
Imaged: F.3 9/24/2014 9:01 AM UTC-05:00
APPLICATION TOOLING:
ALUMINUM: 3443-82-XX
78-5100-2436-3
POSITION COUNT
04 - 30
SEE TABLE 1
OPTIONAL FEATURES
0 = NONE SPECIFIED
F
PLATING
00 = Au FLASH
30 = 30 " GOLD
B
8
TM
7
6
5
4
3
2
1

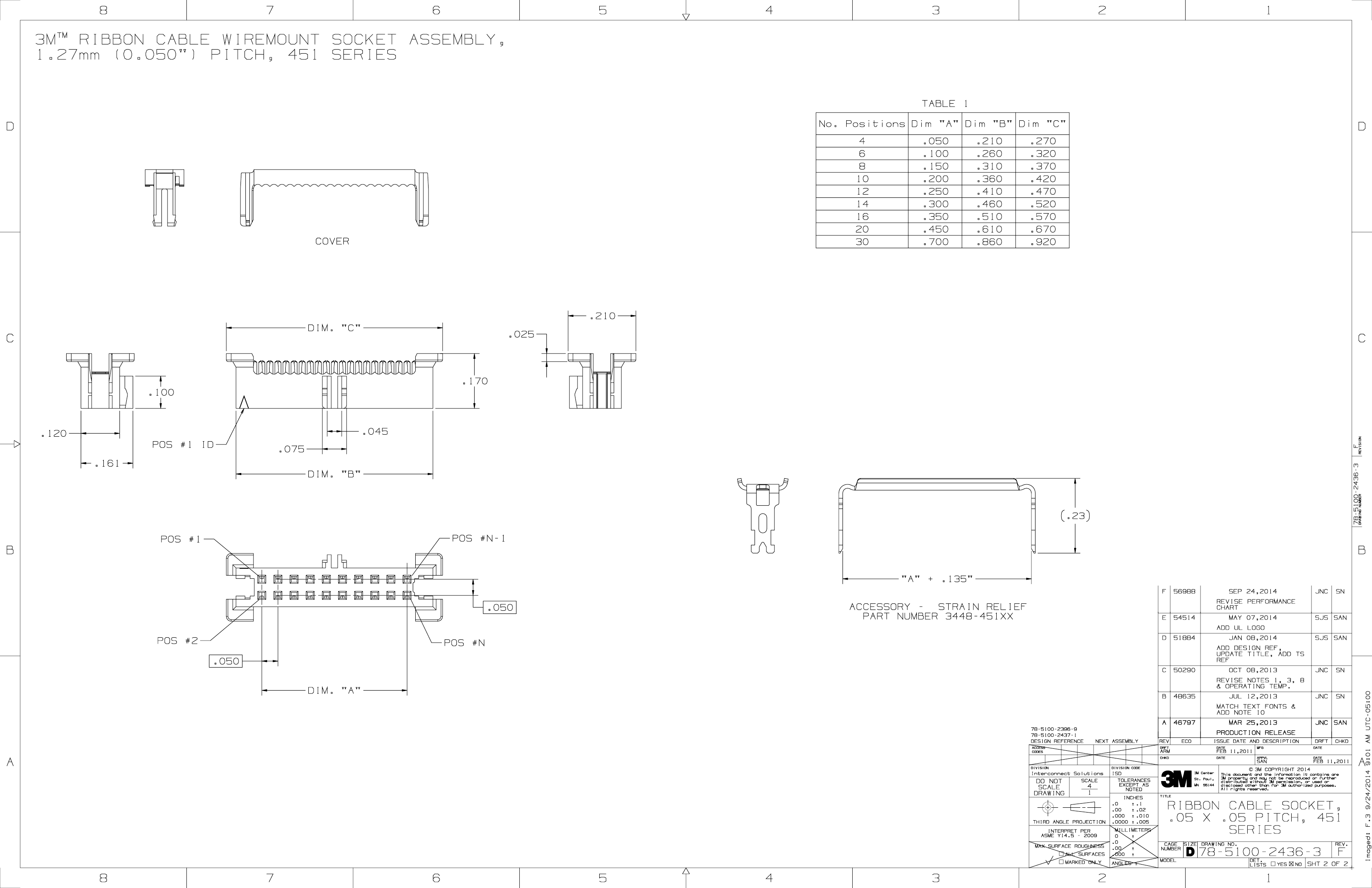

3M RIBBON CABLE WIREMOUNT SOCKET ASSEMBLY,
