ANPC-175G-P-0-SF datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ANPC-175G-P-0-SF

ANPC-175G-P-0-SF: Description2400MHz - 2500MHz ANTENNA-OTHER, 7 dBi GAIN, 70deg 3dB BEAMWIDTH; CategoryWireless rf/communication Radio frequency and microwave; File Size185KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

ANPC-175G-P-0-SF Overview

2400MHz - 2500MHz ANTENNA-OTHER, 7 dBi GAIN, 70deg 3dB BEAMWIDTH

ANPC-175G-P-0-SF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
application	WLAN/CELLULAR/WIRELESS LOCAL LOOP
Beam Width-E	65 deg
Beamwidth-H	70 deg
Gain	7 dB
Omnidirectional	NO
Maximum operating frequency	2500 MHz
Minimum operating frequency	2400 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	ANTENNA-OTHER
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

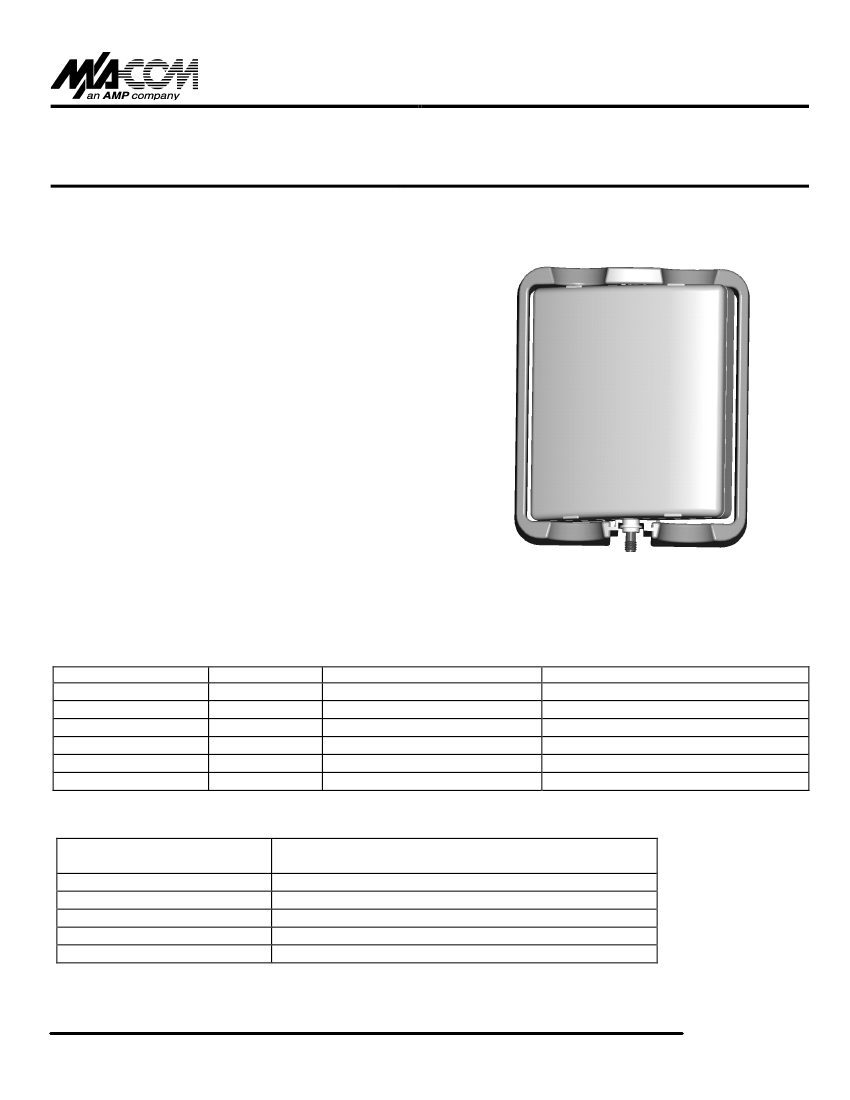

Picocell Antennas

ANPC-171G – ANPC-176G Series

V3.00

Features

Light Weight, Slim Profile

Indoor or Outdoor Use

Weatherproof and Corrosion Resistant

Built-In Swivel Mount

Fast and Easy Installation

Choice of Polarization and Frequency

Description

M/A-COM’s picocell antennas provide high performance in an

attractive package that discretely blends into indoor and outdoor

environments. Our unique pivot mount swivels horizontally, tilts

vertically, and locks to enable precise positioning. Our circularly

polarized models eliminate the need for spatial diversity antennas

and help overcome performance-degrading multipath effects.

Applications

Extend Cellular/Wireless Coverage Indoors

Extend PBX/WPBX Within Targeted Zones

Provide Voice/Data Transfer

Deploy in Wireless Local Loop, ISM, and WLAN

Applications

Part Number

ANPC-171G-P-0-SF

ANPC-172G-P-0-SF

ANPC-173G-P-0-SF

ANPC-174G-P-0-SF

ANPC-175G-P-0-SF

ANPC-176G-P-0-SF

Polarization

Vertical

RHCP

Vertical

RHCP

Vertical

RHCP

Frequency and Band

1710-1880 MHz DCS1800

—

1850-1990 MHz PCS, DECT, PHS

—

2400-2500 MHz ISM, WLL

—

Approximate Dimensions

5.5” x 4.5 “ x 1.5” (14 x 11.5 x 3.8 cm)

—

5.5” x 4.5 “ x 1.5” (14 x 11.5 x 3.8 cm)

—

5.5” x 4.5 “ x 1.5” (14 x 11.5 x 3.8 cm)

—

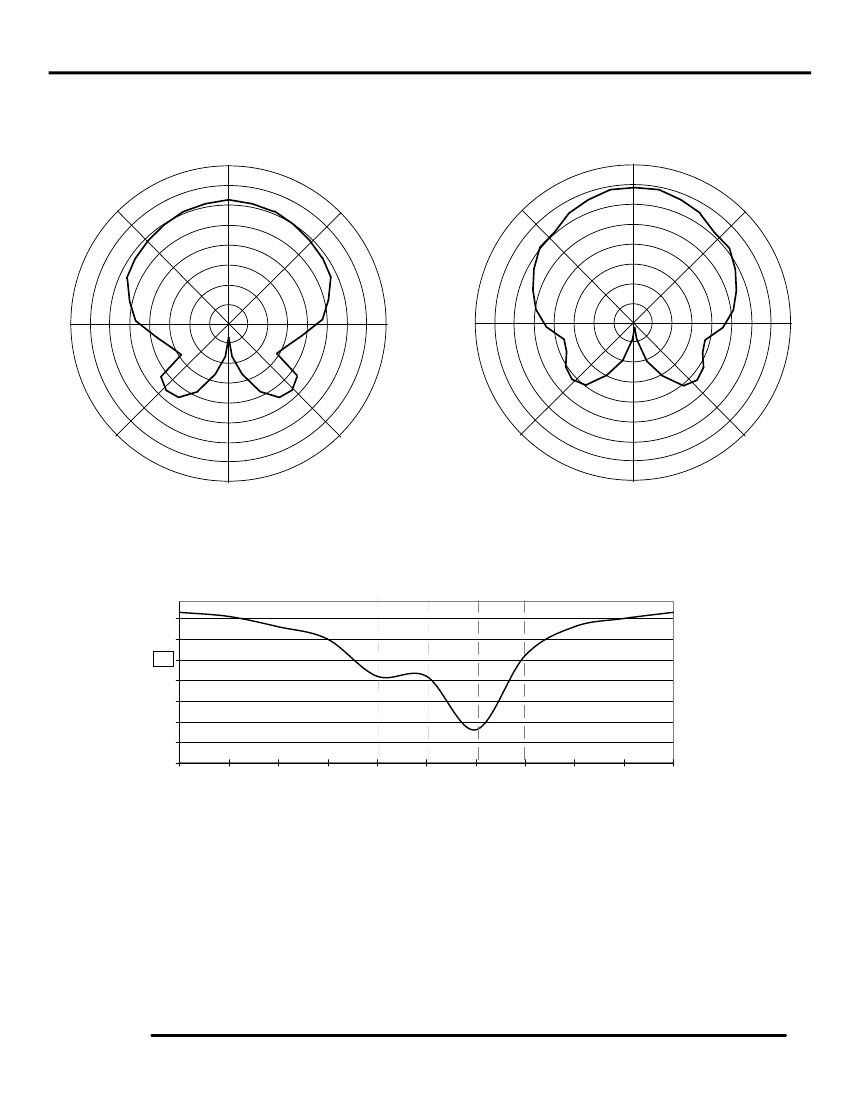

Specifications

Gain

VSWR

3 dB Beamwidth - Azimuth

3 dB Beamwidth - Elevation

Connector

Radome Color

7 dBi Vertical Polarization

7 dBic Circular Polarization

1.5:1

70q Nominal

65q Nominal

SMA Female (options available with pigtail cable)

Light Gray

Specifications Subject to Change Without Notice

M/A-COM Inc.

North America: Tel. (800) 366-2266

Fax (800) 618-8883

Asia/Pacific:

Tel. +85 2 2111 8088

Fax +85 2 2111 8087

Europe:

Tel. +44 (1344) 869-595

Fax +44 (1344) 300-020
