1837780000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1837780000

1837780000: DescriptionStrip Terminal Block, 19A, 1 Row(s), 1 Deck(s), ROHS COMPLIANT; CategoryThe connector terminals; File Size81KB，3 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1837780000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1837780000	-	-	View	Buy Now

1837780000 Overview

Strip Terminal Block, 19A, 1 Row(s), 1 Deck(s), ROHS COMPLIANT

1837780000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Is Samacsys	N
Other features	LCP GF, STANDARD: UL 94V-0
Fastening method	SOLDER
Manufacturer's serial number	1837780000
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	17
Rated current	19 A
Rated voltage	320 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

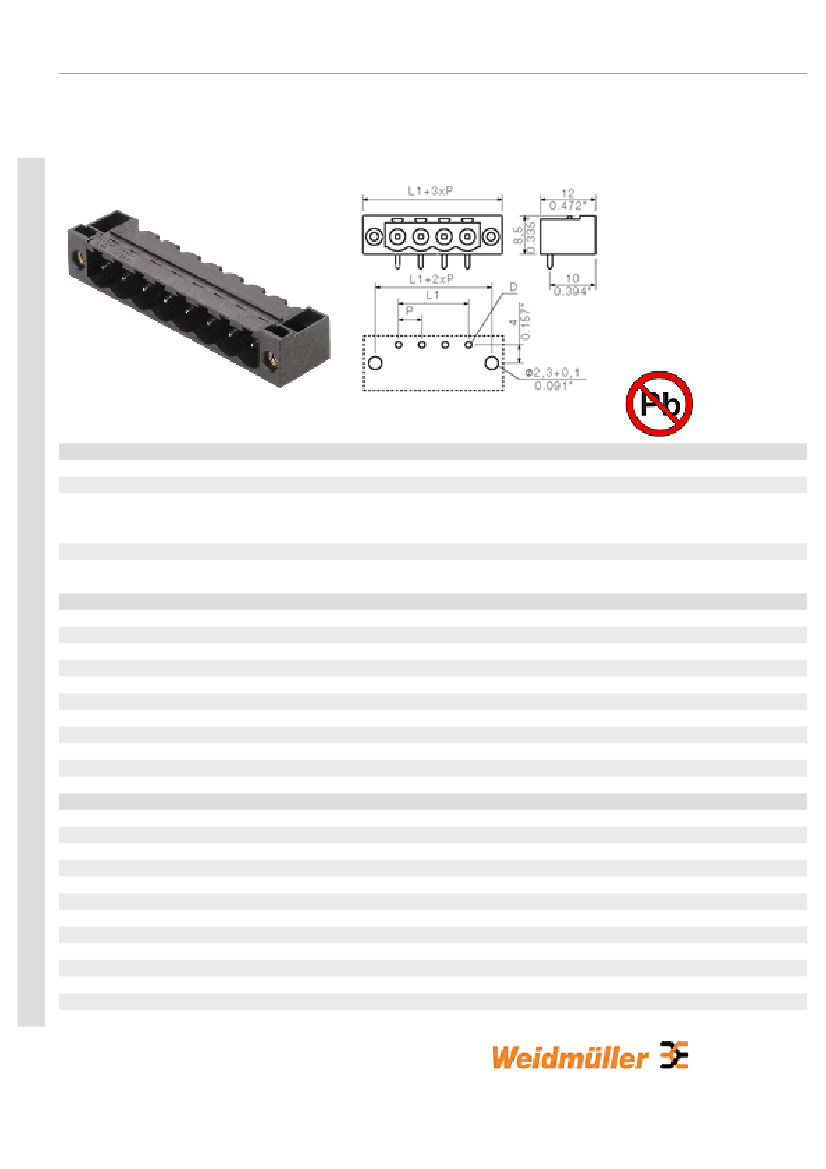

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug

connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90F | SL-SMT 5.08/90F Box

General ordering data

Order No.

Part designation

Version

EAN

Qty.

System parameters

Fitted to PCB

Outgoing elbow

Pitch

Pitch in inch

No. of poles

Solder pin length

Can be coded

No. of solder pins per pole

L1 in mm

L1 in inch

Material data

Insulating material

Colour

colour chart

Insulating material group

Flammability class UL 94

Contact base material

Contact surface

Constant operating temp., min.

Constant operating temp., max.

Storage temperature, min.

Storage temperature, max.

Max. relative humidity during storage

1837780000

SL-SMT5.08/17/90F 3.2SN SW BOX

PCB plug-in connector, Male connectors, Reflow

solder connection, Pitch: 5.08 mm, No. of poles:

17, 90°, Box

4032248347599

20 pc(s).

Reflow solder connection

90°

5.08 mm

0.2 inch

3.2 mm

Yes

81.28 mm

3.2 inch

LCP GF

black

Similar to RAL 9011

IIIa

V-0

CuSn

tinned

-25 °C

100

-25 °C

55 °C

80 %

-1-
