Product catalogue | Heavy Duty Connectors | Inserts | CabinetMate | DSTV-HE | Tension clamp connection
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Product notes
Note, accessories
General data
Colour
Insulation material
Insulation resistance

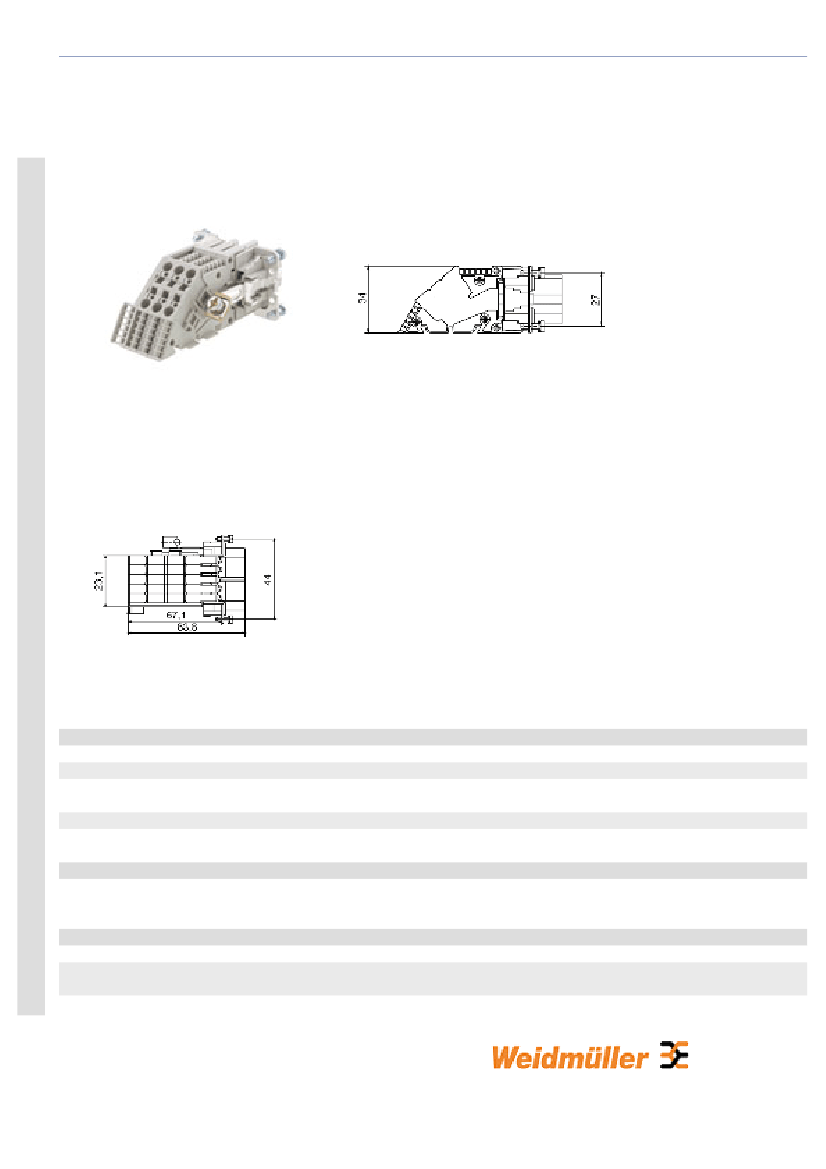

1837430000
DSTV HE BR6 ZF
HDC insert, Socket, 500 V, 16 A, Poles: 6 + PE,
Tension clamp connection, BG: 3
4032248346592
10 pc(s).
For additional accessories, refer to Accessories
chapter.
beige
PC glass-fibre reinforced (UL-listed and railway-
certified)
10
10 Ω
-1-
Product catalogue | Heavy Duty Connectors | Inserts | CabinetMate | DSTV-HE | Tension clamp connection
General data
No. of poles, total
Plugging cycles, silver
Pollution severity
Temperature, max.
Temperature, min.
UL 94 flammability class
Size
Series
Type
Type designation
Connection data PE
Rated cross-section
Fixing screw
Min. tightening torque
Max. tightening torque
Stripping length
Max. connection cross-section, solid
Min. connection cross-section, solid
Min. connection cross-section, stranded
Connection type PE
Max. connection cross-section, stranded
Min. connection cross-section "f" with wire end
ferrule
Max. connection cross-section "f" with wire end
ferrule
AWG, min.
AWG, max.
Rating data
Rated voltage (DIN EN 61984)
Rated current (DIN EN 61984)
Rated voltage according to UL/CSA
Rated impulse voltage (DIN EN 61984)
Version
Type of connection
Stripping length
Material
Connection cross-section, min.
Connection cross-section, max.
AWG, min.
AWG, max.
Size
Surface finish
Approvals
Approvals institutes
6 + PE
≥ 200
3
120 °C
-40 °C
V2
3
DSTV-HE
Socket
DSTV HE 6
2.5 mm²
M4
1.2 Nm
1.6 Nm
10 mm
0.5 mm²
2.5 mm²
0.5 mm²
Screw connection
2.5 mm²
0.5 mm²
2.5 mm
AWG 20
AWG 14
500 V
16 A
600 V AC/DC
6 kV
Tension clamp connection
9 mm
copper alloy
0.5 mm²
2.5 mm²
AWG 20
AWG 12
3
Silver passivated
-2-
Product catalogue | Heavy Duty Connectors | Inserts | CabinetMate | DSTV-HE | Tension clamp connection
Approvals
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
EC001121
EC001121
27-14-08-05
27-14-34-19
27-14-34-19
Similar products
Order No.
1837400000
1837410000
1837420000
1837390000
1837440000
1837450000
1837460000
1837480000
1837490000
1837500000
1837470000
1837520000
1837530000
1837540000
1837510000
Part designation
DSTV HE BL10 ZF
DSTV HE BL16 ZF
DSTV HE BL24 ZF
DSTV HE BL6 ZF
DSTV HE BR10 ZF
DSTV HE BR16 ZF
DSTV HE BR24 ZF
DSTV HE SL10 ZF
DSTV HE SL16 ZF
DSTV HE SL24 ZF
DSTV HE SL6 ZF
DSTV HE SR10 ZF
DSTV HE SR16 ZF
DSTV HE SR24 ZF
DSTV HE SR6 ZF
Version
HDC insert, Socket, 500 V, 16 A, Poles: 10 + PE, Tension clamp
connection, BG: 4
HDC insert, Socket, 500 V, 16 A, Poles: 16 + PE, Tension clamp
connection, BG: 6
HDC insert, Socket, 500 V, 16 A, Poles: 24 + PE, Tension clamp
connection, BG: 8
HDC insert, Socket, 500 V, 16 A, Poles: 6 + PE, Tension clamp
connection, BG: 3
HDC insert, Socket, 500 V, 16 A, Poles: 10 + PE, Tension clamp
connection, BG: 4
HDC insert, Socket, 500 V, 16 A, Poles: 16 + PE, Tension clamp
connection, BG: 6
HDC insert, Socket, 500 V, 16 A, Poles: 24 + PE, Tension clamp
connection, BG: 8
HDC insert, Pin, 500 V, 16 A, Poles: 10 + PE, Tension clamp
connection, BG: 4
HDC insert, Pin, 500 V, 16 A, Poles: 16 + PE, Tension clamp
connection, BG: 6
HDC insert, Pin, 500 V, 16 A, Poles: 24 + PE, Tension clamp
connection, BG: 8
HDC insert, Pin, 500 V, 16 A, Poles: 6 + PE, Tension clamp
connection, BG: 3
HDC insert, Pin, 500 V, 16 A, Poles: 10 + PE, Tension clamp
connection, BG: 4
HDC insert, Pin, 500 V, 16 A, Poles: 16 + PE, Tension clamp
connection, BG: 6
HDC insert, Pin, 500 V, 16 A, Poles: 24 + PE, Tension clamp
connection, BG: 8
HDC insert, Pin, 500 V, 16 A, Poles: 6 + PE, Tension clamp
connection, BG: 3
-3-
