1SSA103203R0100 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 1SSA103203R0100

1SSA103203R0100: DescriptionStrip Terminal Block, 20A, 2.5mm2, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size124KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1SSA103203R0100 Overview

Strip Terminal Block, 20A, 2.5mm2, 1 Row(s), 1 Deck(s)

1SSA103203R0100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Is Samacsys	N
Other features	94V-0
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	3
Rated current	20 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

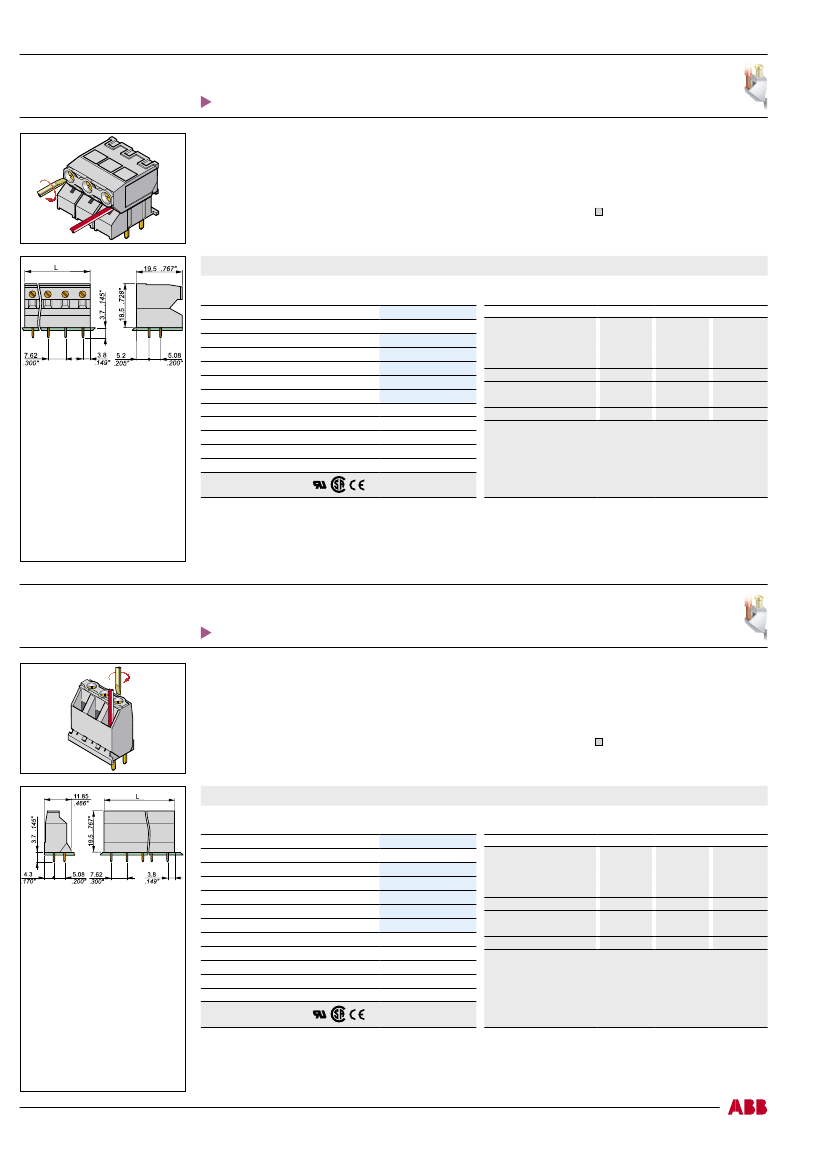

L 103 200

P.C.B. terminal blocks

0.8 x 0.9 x 3.7 mm

.031" x .035" x .145"

Expert Range - Axial screw clamp connection

Terminal blocks for axial screw clamp connection

parallel to P.C.B.

Single deck block, 2 pins per pole.

P.C.B. thickness ≤ 2.4 mm

.094"

P.C.B. holes Ø 1.3 mm

.051"

Body : UL94 V0 - PC

Grey

2.5 mm² - Spacing 7.62 mm

.300"

Ordering details

N. Poles

Weight kg

Packaging

L. mm

Order code

1SSA

103 202

R0100

1SSA

103 203

R0100

1SSA

103 204

R0100

1SSA

103 205

R0100

1SSA

103 206

R0100

0.0060

100

15.20

0.0090

100

22.80

0.0127

30.40

0.0060

38.10

0.0179

45.70

Other numbers of poles, consult us

Technical data

IEC

Wire size

Screw

CSA

Solid wire

0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG

Stranded wire 0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG

With ferrule

Rated voltage

380 V

300 V

Rated current

15 A

20 A

Short-circuit current

Rated wire size / Gauge

2.5 mm²

14 AWG

Storage temperature range

-20 ~ +80 °C

Insulation resistance

≥ 10

Ω

Wire stripping length

8 mm /

.315"

Recommended screwdriver

3.5 mm /

.138"

Recommended torque

0.6 Nm /

5.3 lb.in

Protection

IP 20 /

NEMA 1

L 103 300

P.C.B. terminal blocks

0.8 x 0.9 x 3.7 mm

.031" x .035" x .145"

Expert Range - Axial screw clamp connection

Terminal blocks for axial screw clamp connection

perpendicular to P.C.B. Small size.

Single deck block, 2 pins per pole.

P.C.B. thickness ≤ 2.4 mm

.094"

P.C.B. holes Ø 1.3 mm

.051"

Body : UL94 V0 - PC

Grey

2.5 mm² - Spacing 7.62 mm

.300"

Ordering details

N. Poles

Weight kg

Packaging

L. mm

Order code

1SSA

103 302

R0100

1SSA

103 303

R0100

1SSA

103 304

R0100

1SSA

103 305

R0100

1SSA

103 306

R0100

0.0043

100

15.20

0.0065

22.80

0.0087

30.40

0.0108

38.10

0.0130

45.70

Other numbers of poles, consult us

Technical data

IEC

Wire size

Screw

CSA

Solid wire

0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG

Stranded wire 0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG

With ferrule

Rated voltage

380 V

300 V

Rated current

15 A

20 A

Short-circuit current

Rated wire size / Gauge

2.5 mm²

14 AWG

Storage temperature range

-20 ~ +80 °C

Insulation resistance

≥ 10

Ω

Wire stripping length

8 mm /

.315"

Recommended screwdriver

3.5 mm /

.138"

Recommended torque

0.6 Nm /

5.3 lb.in

Protection

IP 20 /

NEMA 1
