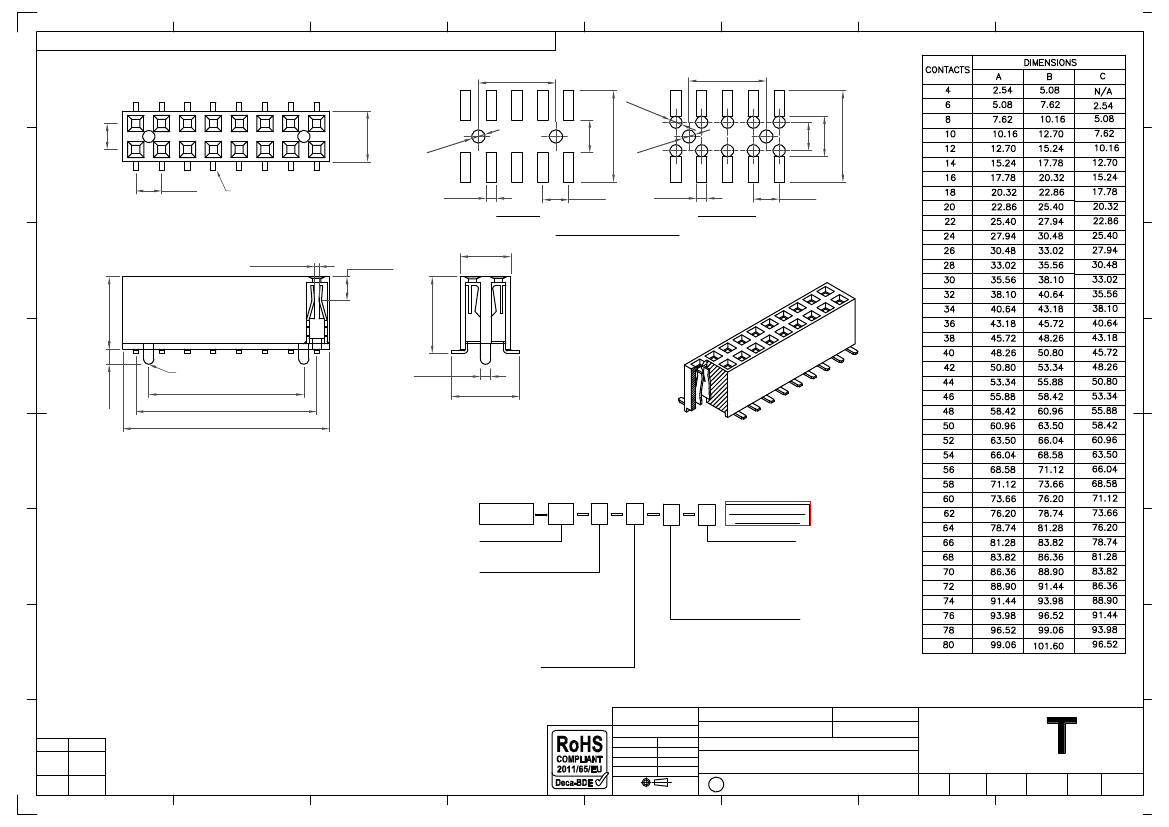

Global Connector Technology Ltd. - BG180: 2.54mm Pitch Socket, Dual Row, Surface Mount, Vertical, Dual Entry
A
C
5
6
7
8
C
Ø1
.20
2.54
5.00
2.80
7.80
2.54
3.74
Ø1.3
0
Ø1.3
0
B
2.54
Pin 0.6x0.25 (Typ.)
1.02
2.54
1.02
2.54
Top Entry
Recommended PCB Layout
0.48 REF.
Bottom Entry
C
Contact Point
2.16 REF.
5.00
7.10
D
1.20
Optional PEGs
C±0.20
A±0.25
B±0.38
Ø1.00
6.80
E
Specifications
规格
Current Rating
电流额定值：
3 Amp
Insulator Resistance
绝缘电阻值：
1000 MΩ min.
Dielectric Withstanding
耐电压：
AC 600 V
Contact Resistance
接触电阻值：
20mΩ Max.
Operating Temperature
工½温度：
-40°C to +105°C
Contact Material
端子物料：
Copper Alloy
Insulator Material
绝缘½物料
:
Standard
标准物料
: Polyamide
聚醯胺
, Nylon 6T, UL 94V-0
Options
可选物料
: Polyester
聚酯
, LCP, UL 94V-0
Soldering Process
可焊性
:
Nylon 6T (Standard
标准物料
) -
IR Reflow
回流焊
: 260°C for 10 sec.
Wave
波峰焊
: 230°C for 5-10 sec.
Manual Solder
人工焊接
: 350°C for 3-5 sec
LCP (Option
可选物料
) -
IR Reflow
回流焊
: 260°C for 10 sec.
Wave
波峰焊
: 250°C for 5-10 sec.
Manual Solder
人工焊接
: 350°C for 3-5 sec
Mates With
配套之母座
(Subject to pin length
在端子长度适合的条件下
):
BG025
BG040
BG045
BG050
BG065
BG070
BG085
By
DETAIL
REV
DATE
AJO
BG180
F PCN
F
18/06/14
7.50
Ordering Grid
BG180
XX
X
X
X
X
REQUEST SAMPLES
AND QUOTATION
F
No. of Contacts
04 to 80
Contact Plating
A = Gold Flash All Over
(Standard)
B = Selective Gold Flash Contact Area
/Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Locating Peg
0 = Without
1 = With
G
Packing Options
C = Tape & Reel with Film
(Standard)
B = Tape & Reel with Cap
D = Tube
E = Tube with Cap
F = Tube with Film
Insulator Material
N = Nylon 6T
(Standard)
L = LCP
For bottom entry applications the locating peg option is recommended.
Stringent soldering control & pin alignment are required as lead to pad
misalignment could cause incorrect mating.
Tolerances
(Except as noted)
Part Number
7.80
Date
Dimensions in mm
BG180
Description
30th Oct '06
H
X. ± 0.30
X.X ± 0.20
X.XX ± 0.15
X.XXX ± 0.10
X.°±5°
.X°±2°
.XX°±1°
.XXX°±0.5°
2.54mm Pitch Socket, Dual Row,
Surface Mount, Vertical, Dual Entry
GC
Scale
NTS
www.gct.co
Drawn by
LYH
E & OE
1
2
3
4
Third Angle Projection
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
F
Material
See Note
Sheet No.
1/1
5
6
7
8
