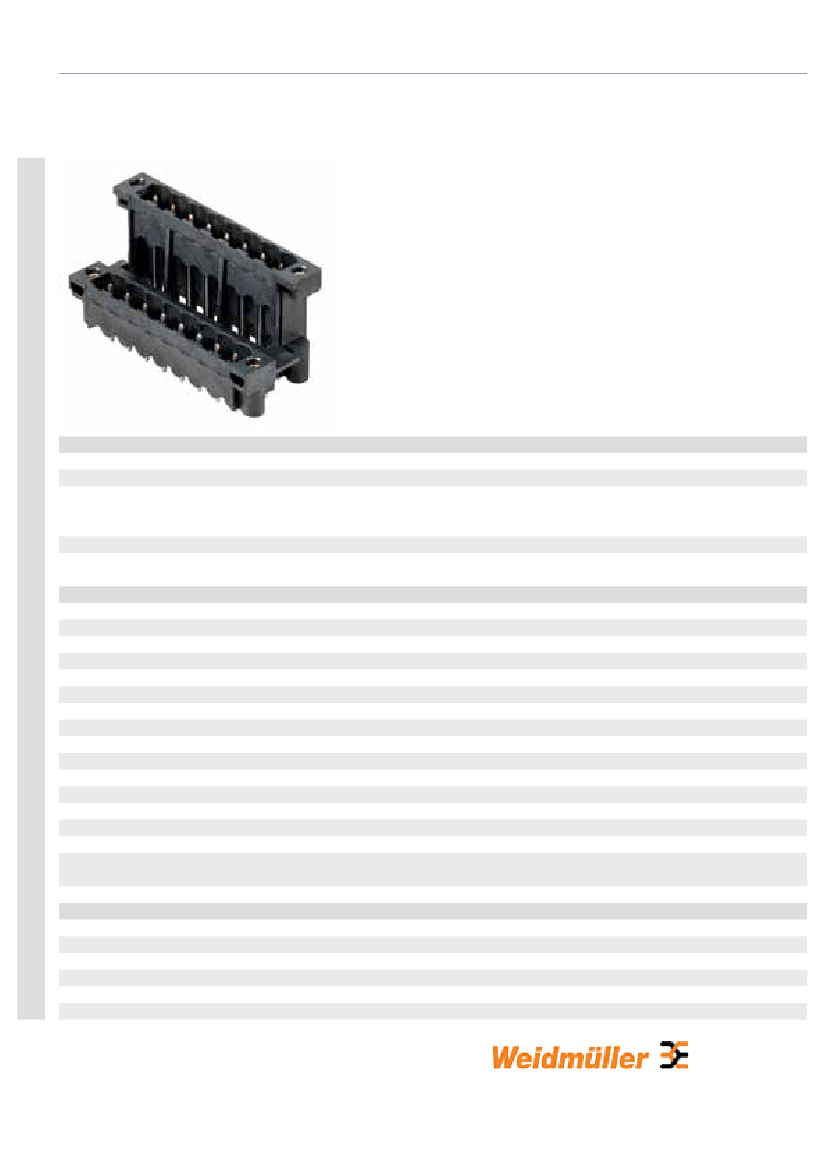

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SLDV-THR 5.08/180 | SLDV-THR 5.08/180FLF
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
Contact base material
1889320000
SLDV-THR5.08/46FLF 3.2SN SW
PCB plug-in connector, Male connectors, Reflow
solder connection, Pitch: 5.08 mm, No. of poles:
46, 180°, Box
4032248495665
10 pc(s).
Reflow solder connection
180°
5.08 mm
0.2 inch
46
3.2 mm
Yes
2
1
1.3 mm
+ 0.1 mm
111.76 mm
4.4 inch
1 MΩ
IP20 plugged/ IP10 unplugged
Finger-safe plugged/ back-of-hand-safe
unplugged
LCP GF
black
Similar to RAL 9011
IIIa
V-0
CuSn
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SLDV-THR 5.08/180 | SLDV-THR 5.08/180FLF
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
tinned
-25 °C
100
-25 °C
55 °C
80 %
15 A
10.5 A
13 A
9A
250 V
4 kV
320 V
4 kV
400 V
4 kV
1 x 1s with 120 A
300 V
10 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SLDV-THR 5.08/180 | SLDV-THR 5.08/180FLF
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 3.0
eClass 5.1
SLDV-THR.LIB
EC001284
27-26-07-04
Similar products
Order No.
1829130000
1829010000
1829140000
1829020000
1829150000
1829030000
1829160000
1829040000
1829170000
1829050000
1829180000
1829060000
1829190000
1829070000
1829200000
1829080000
1829210000
1829090000
1829220000
1829100000
Part designation
SLDV-THR5.08/4FLF 1.5SN SW
SLDV-THR5.08/4FLF 3.2SN SW
SLDV-THR5.08/6FLF 1.5SN SW
SLDV-THR5.08/6FLF 3.2SN SW
SLDV-THR5.08/8FLF 1.5SN SW
SLDV-THR5.08/8FLF 3.2SN SW
SLDV-THR5.08/10FLF 1.5SN
SW
SLDV-THR5.08/10FLF 3.2SN
SW
SLDV-THR5.08/12FLF 1.5SN
SW
SLDV-THR5.08/12FLF 3.2SN
SW
SLDV-THR5.08/14FLF 1.5SN
SW
SLDV-THR5.08/14FLF 3.2SN
SW
SLDV-THR5.08/16FLF 1.5SN
SW
SLDV-THR5.08/16FLF 3.2SN
SW
SLDV-THR5.08/18FLF 1.5SN
SW
SLDV-THR5.08/18FLF 3.2SN
SW
SLDV-THR5.08/20FLF 1.5SN
SW
SLDV-THR5.08/20FLF 3.2SN
SW
SLDV-THR5.08/22FLF 1.5SN
SW
SLDV-THR5.08/22FLF 3.2SN
SW
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 22, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SLDV-THR 5.08/180 | SLDV-THR 5.08/180FLF
1829230000
1829110000
1829240000
1829120000
1881480000
1889200000
1881500000
1889210000
1881510000
1866320000
1881520000
1889220000
1881530000
1889270000
1881540000
1889280000
1881550000
1889290000
1881560000
1889300000
1881570000
1889310000
1881580000
1881590000
1889330000
SLDV-THR5.08/24FLF 1.5SN
SW
SLDV-THR5.08/24FLF 3.2SN
SW
SLDV-THR5.08/26FLF 1.5SN
SW
SLDV-THR5.08/26FLF 3.2SN
SW
SLDV-THR 5.08/28LF 1.5 SN
SW
SLDV-THR5.08/28FLF 3.2SN
SW
SLDV-THR 5.08/30FLF 1.5 SN
SW
SLDV-THR5.08/30/180FLF 3.2
SN SW
SLDV-THR 5.08/32FLF 1.5 SN
SW
SLDV-THR 5.08/32 FLF3.2SN
SW
SLDV-THR 5.08/34FLF 1.5 SN
SW
SLDV-THR5.08/34FLF 3.2SN
SW
SLDV-THR 5.08/36FLF 1.5 SN
SW
SLDV-THR5.08/36FLF 3.2SN
SW
SLDV-THR 5.08/38FLF 1.5 SN
SW
SLDV-THR5.08/38FLF 3.2SN
SW
SLDV-THR 5.08/40FLF 1.5 SN
SW
SLDV-THR5.08/40FLF 3.2SN
SW
SLDV-THR 5.08/42FLF 1.5 SN
SW
SLDV-THR5.08/42FLF 3.2SN
SW
SLDV-THR 5.08/44FLF 1.5 SN
SW
SLDV-THR5.08/44FLF 3.2SN
SW
SLDV-THR 5.08/46FLF 1.5 SN
SW
SLDV-THR 5.08/48FLF 1.5 SN
SW
SLDV-THR5.08/48FLF 3.2SN
SW
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 26, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 26, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 28, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 28, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 30, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 30, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 32, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 32, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 34, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 34, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 36, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 36, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 38, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 38, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 40, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 40, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 42, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 42, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 44, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 44, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 46, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 48, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.08 mm, No. of poles: 48, 180°, Box
-4-
