4-1462037-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 4-1462037-8

Preview

4-1462037-8: DescriptionRF RELAY, DPDT, MOMENTARY, 0.008A (COIL), 24VDC (COIL), 200mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size63KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

4-1462037-8 Overview

RF RELAY, DPDT, MOMENTARY, 0.008A (COIL), 24VDC (COIL), 200mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

4-1462037-8 Parametric

Parameter Name	Attribute value
Brand Name	Axicom
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2142359919
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	23 weeks 6 days
Samacsys Description	IM07JR=IM RELAY 200 MW 24 V
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-04 19:49:56
Other features	RELEASE TIME WITH DIODE
body width	6 mm
body height	5.65 mm
Body length or diameter	10 mm
Maximum coil current (DC)	0.008 A
Coil operating voltage (DC)	18 V
Coil power	200 mW
Coil release voltage (DC)	2.4 V
Coil resistance	2880 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	5A@220VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1800 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	LEAD RUTHENIUM
Maximum input power	60 W
Maximum insertion loss	-0.03 dB
Insulation resistance	1000000000000 Ω
Maximum isolation	-37 dB
Installation features	PANEL MOUNT
operating hours	8 ms
Maximum operating frequency	900 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TR
physical size	10 X 6 X 5.65
Guideline	UL
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	RF RELAY
release time	10 ms
seal	IP67/RT5
surface mount	NO
switching time	18 ms
Termination type	SOLDER/QUICK CONNECT
voltage standing wave ratio	1.49
weight	0.75 g

Preview

Download Datasheet

View All

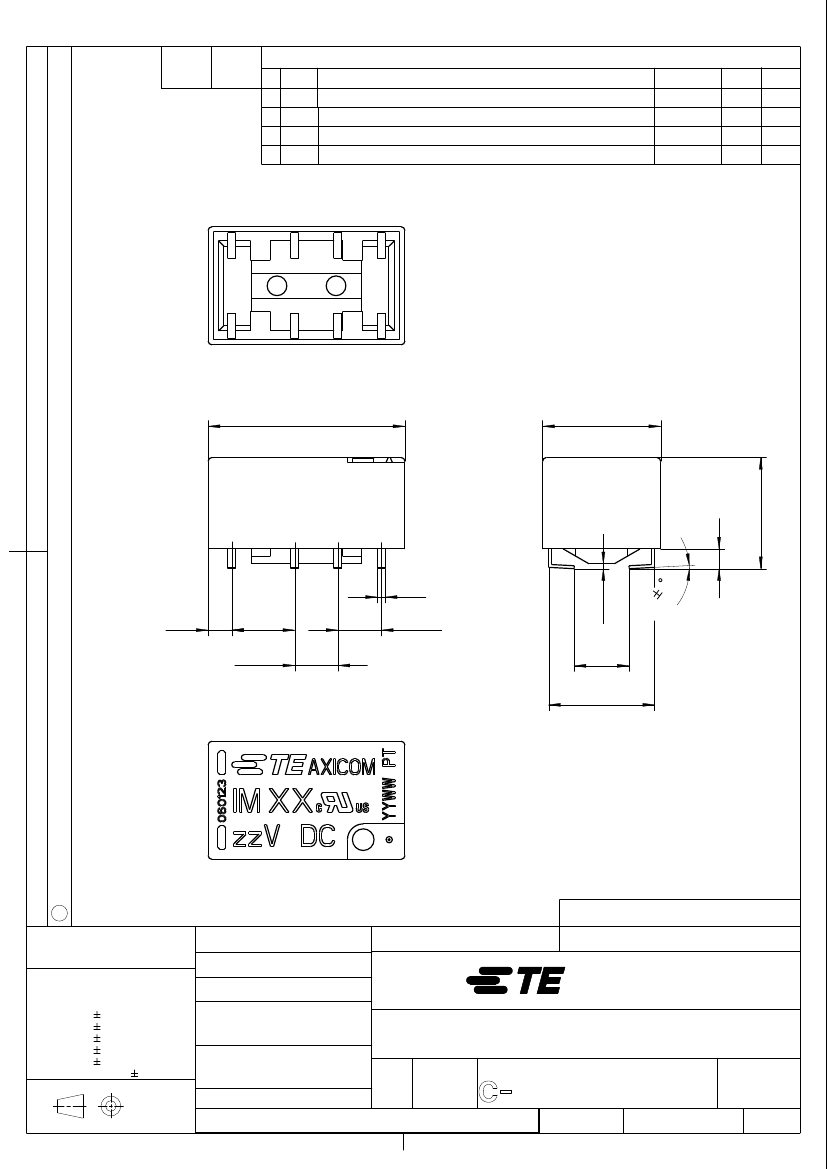

THIS DRAWING IS A CONTROLLED DOCUMENT.

LOC

DIST

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

HJ

-

A7

A8

A9

A10

2

additional marking

REVISED PER ECO-11-005150

REVISED PER ECR-11-015637

REVISED PER ECR-13-014508 (TE-Logo)

10OCT2008

25MAR2011

10JUN2013

16SEP2013

UKo

HD

HMR

AK

1

3

4

Relay - bottom view

2000

8

RELEASED FOR PUBLICATION

7

10

+0.08

-0.08

6

5

6

+0.08

-0.08

(0.25)

0.4

(1.2)

3.2

+0.15

-0.15

2.2

+0.15

-0.15

2.2

+0.15

-0.15

2.8

+0.2

-0.2

5.38

+0.1

-0.1

Coplanarity <0.10mm

THIS DRAWING IS UNPUBLISHED.

2000

COPYRIGHT

XX = Relay type

zz = nominal voltage

YYWW = Date code

DRAWING ALIAS:

DIMENSIONS:

DWN

CHK

C

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

UKo 9193

HD 9121

PRODUCT SPEC

APVD

08AUG1998

MATERIAL

-

FINISH

3°

E2001-DOK02

-

DIN 7168-m

-

TE Connectivity

NAME

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

-

APPLICATION SPEC

IM-Relay SMT J-Legs

Dimensions

CAGE CODE DRAWING NO

RESTRICTED TO

-

WEIGHT

-

CUSTOMER DRAWING

SIZE

A4

00779

1462037-3

SCALE

2

1469-35 (3/11)

5:1

0

5.65

-0.2

(1)

-

SHEET

1

OF

1

REV

A10
