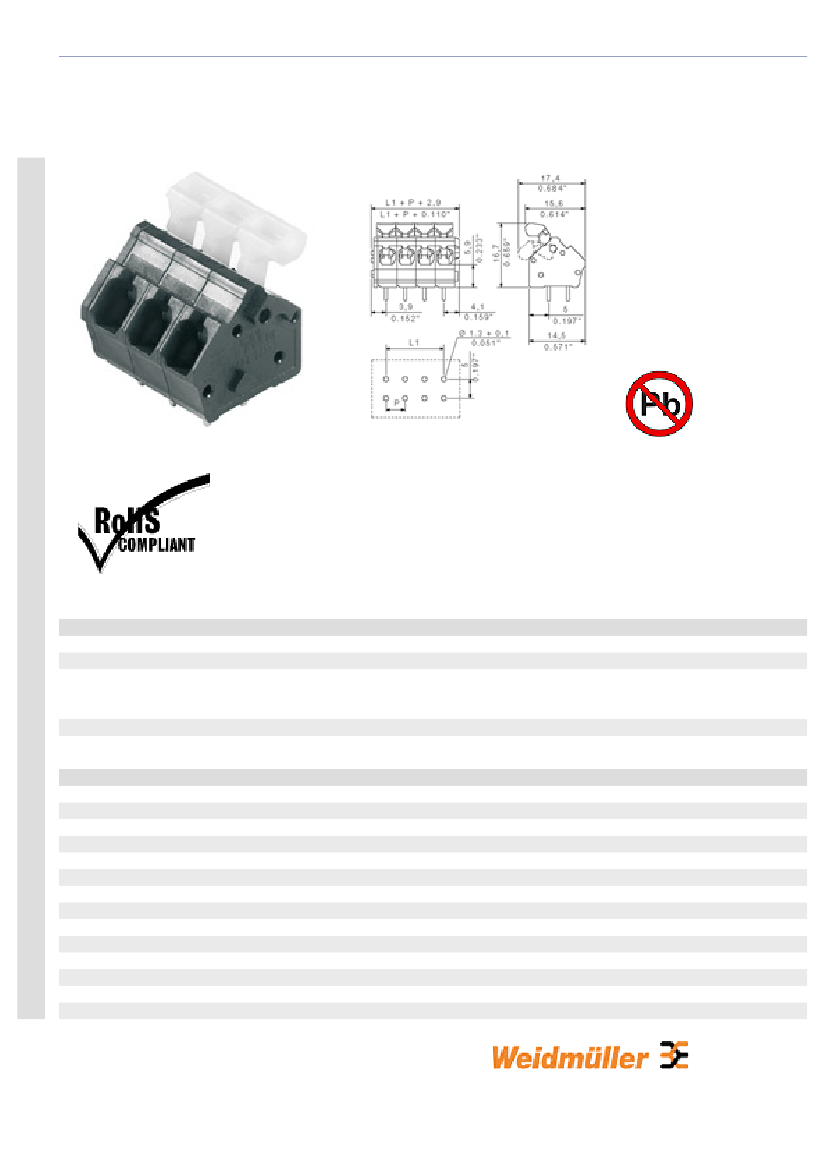

Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZFL 5/135
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Product family
Conductor connection system
Fitted to PCB
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
Max. adjacent poles per row
No. of rows
Solder pin length
Dia. of fitting hole
No. of solder pins per pole
Screwdriver blade
Stripping length
1957940000
LMZFL 5/15/135 3.5GN
PCB terminal, Tension clamp connection,
Soldered connection, Clamping range, max.: 2.5
mm², Pitch: 5.00 mm, No. of poles: 15, 135°, Box
4032248650729
100 pc(s).
System LM
Tension clamp connection
Soldered connection
135°
5 mm
0.197 inch
15
48
1
3.5 mm
1.3 mm
2
0.4 x 2.5
6 mm
-1-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZFL 5/135
System parameters
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Storage temperature, min.
Storage temperature, max.
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
CSA rating data
Rated voltage (Use group D)
70 mm
2.756 inch
IP 20
Safe from finger touch
Wemid (PA)
Pale green
Similar to RAL 6021
I
V-0
>= 600
E-Cu
tinned
-55 °C
120 °C
0.13 mm²
2.5 mm²
26
14
0.13 mm²
2.5 mm²
0.13 mm²
2.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
24 A
24 A
24 A
24 A
630 V
320 V
250 V
4 kV
4 kV
4 kV
300 V
-2-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZFL 5/135
CSA rating data
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
10 A
26
14
300 V
10 A
26
14
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 3.0
eClass 5.1
LMZFL.LIB
EC001284
27-26-11-01
Similar products
Order No.
1914560000
1811510000
1811620000
1811730000
1914580000
1811520000
1811630000
Part designation
LMZFL 5/2/135 3.5OR
LMZFL 5/2/135 3.5SW
LMZFL 5/2/135 3.5GR
LMZFL 5/2/135 3.5GN
LMZFL 5/3/135 3.5OR
LMZFL 5/3/135 3.5SW
LMZFL 5/3/135 3.5GR
Version
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
-3-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZFL 5/135
1811740000
1914590000
1811530000
1811640000
1811750000
1914600000
1811540000
1811650000
1811760000
1914640000
1811550000
1811660000
1811770000
1914720000
1811560000
1811670000
1811780000
LMZFL 5/3/135 3.5GN
LMZFL 5/4/135 3.5OR
LMZFL 5/4/135 3.5SW
LMZFL 5/4/135 3.5GR
LMZFL 5/4/135 3.5GN
LMZFL 5/5/135 3.5OR
LMZFL 5/5/135 3.5SW
LMZFL 5/5/135 3.5GR
LMZFL 5/5/135 3.5GN
LMZFL 5/6/135 3.5OR
LMZFL 5/6/135 3.5SW
LMZFL 5/6/135 3.5GR
LMZFL 5/6/135 3.5GN
LMZFL 5/7/135 3.5OR
LMZFL 5/7/135 3.5SW
LMZFL 5/7/135 3.5GR
LMZFL 5/7/135 3.5GN
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 5,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 5,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 5,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 5,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
-4-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZFL 5/135
1914790000
1811570000
1811680000
1811790000
1914830000
1811580000
1811690000
1811800000
1914860000
1811590000
1811700000
1811810000
1914990000
1811600000
1811710000
1811820000
1915030000
LMZFL 5/8/135 3.5OR
LMZFL 5/8/135 3.5SW
LMZFL 5/8/135 3.5GR
LMZFL 5/8/135 3.5GN
LMZFL 5/9/135 3.5OR
LMZFL 5/9/135 3.5SW
LMZFL 5/9/135 3.5GR
LMZFL 5/9/135 3.5GN
LMZFL 5/10/135 3.5OR
LMZFL 5/10/135 3.5SW
LMZFL 5/10/135 3.5GR
LMZFL 5/10/135 3.5GN
LMZFL 5/11/135 3.5OR
LMZFL 5/11/135 3.5SW
LMZFL 5/11/135 3.5GR
LMZFL 5/11/135 3.5GN
LMZFL 5/12/135 3.5OR
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 11,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 11,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 11,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 11,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 12,
135°, Box
-5-
