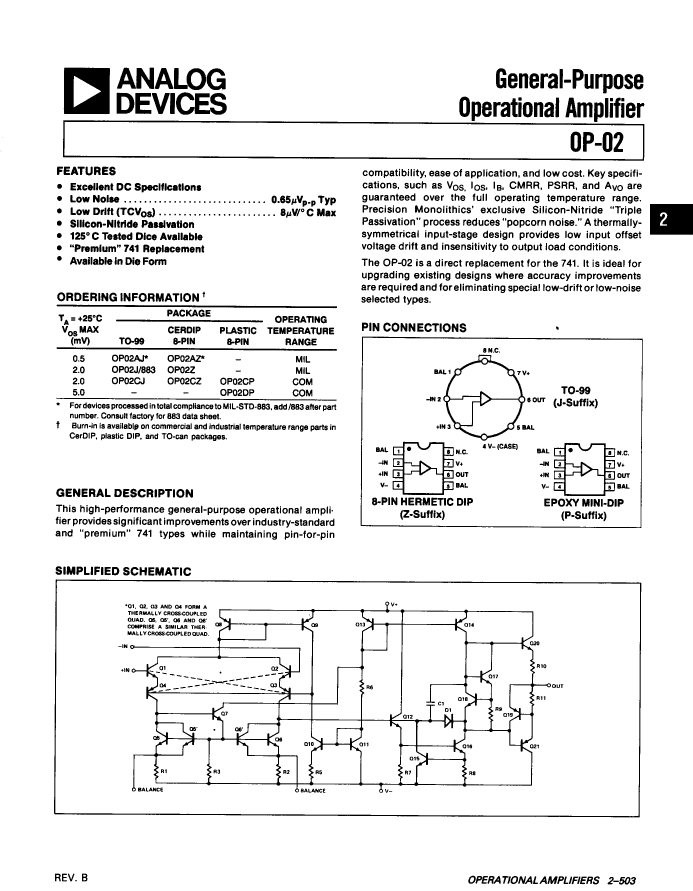

5962-01-186-2550 amplifier basic information:
5962-01-186-2550 is an OPERATIONAL AMPLIFIER.
5962-01-186-2550 amplifier core information:
The minimum operating temperature of 5962-01-186-2550 is , and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.05 µA
The minimum slew rate of 5962-01-186-2550 given by the manufacturer is 0.25 V/us. Its minimum voltage gain is 25000.
The nominal supply voltage of 5962-01-186-2550 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of 5962-01-186-2550 is 3000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)
Related dimensions for 5962-01-186-2550:
5962-01-186-2550 has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
5962-01-186-2550 amplifier additional information:
5962-01-186-2550 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-01-186-2550 is: YES. Its temperature grade is: COMMERCIAL. 5962-01-186-2550 is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T8. The packaging code of 5962-01-186-2550 is: DIP. 5962-01-186-2550 packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The 5962-01-186-2550 package pin format is: IN-LINE.
Its terminal form is: THROUGH-HOLE.
5962-01-186-2550 amplifier basic information:
5962-01-186-2550 is an OPERATIONAL AMPLIFIER.
5962-01-186-2550 amplifier core information:
The minimum operating temperature of 5962-01-186-2550 is , and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.05 µA
The minimum slew rate of 5962-01-186-2550 given by the manufacturer is 0.25 V/us. Its minimum voltage gain is 25000.
The nominal supply voltage of 5962-01-186-2550 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of 5962-01-186-2550 is 3000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)
Related dimensions for 5962-01-186-2550:
5962-01-186-2550 has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
5962-01-186-2550 amplifier additional information:
5962-01-186-2550 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-01-186-2550 is: YES. Its temperature grade is: COMMERCIAL. 5962-01-186-2550 is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T8. The packaging code of 5962-01-186-2550 is: DIP. 5962-01-186-2550 packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The 5962-01-186-2550 package pin format is: IN-LINE.
Its terminal form is: THROUGH-HOLE.

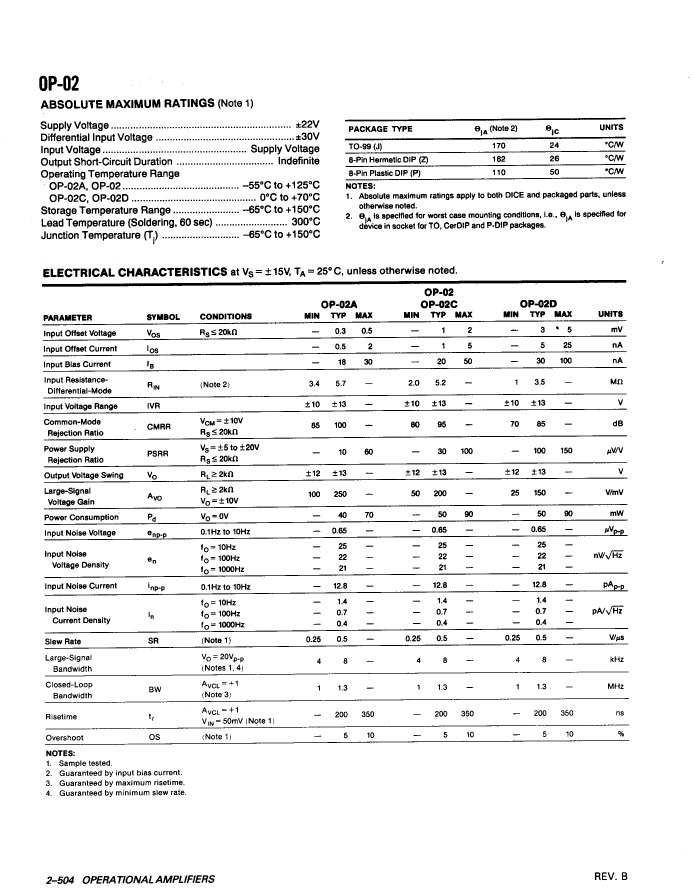

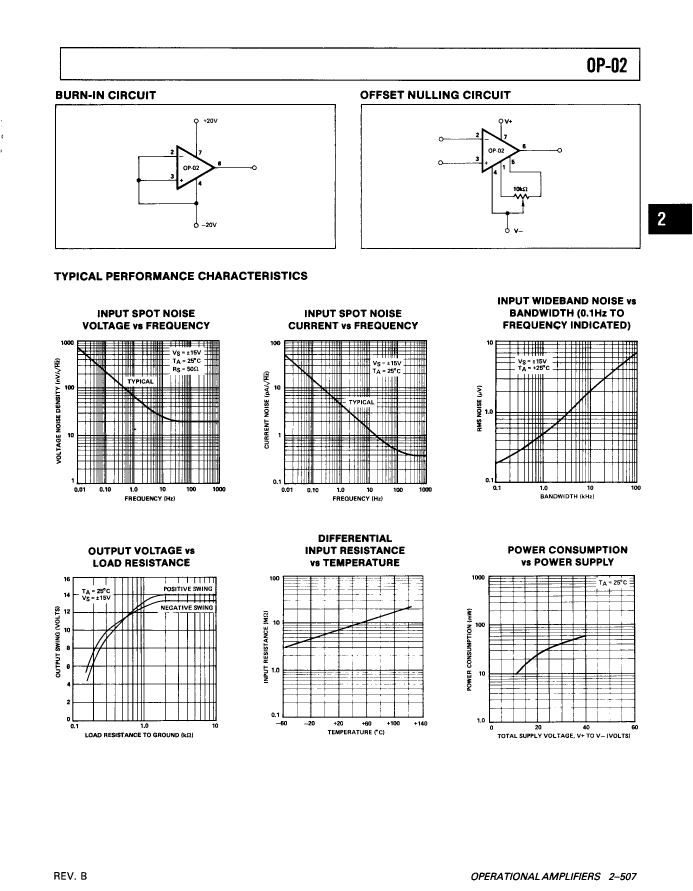

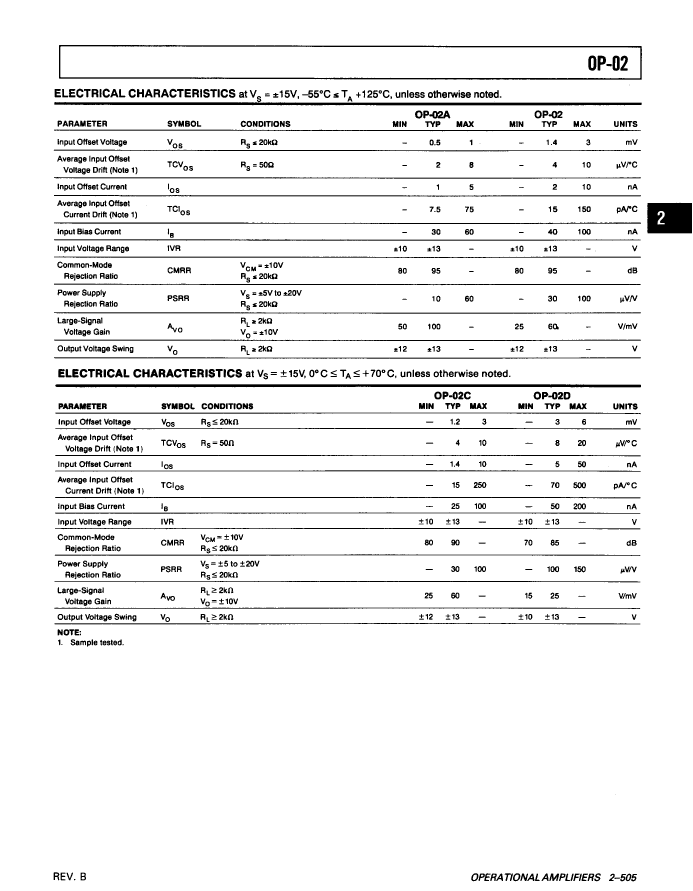

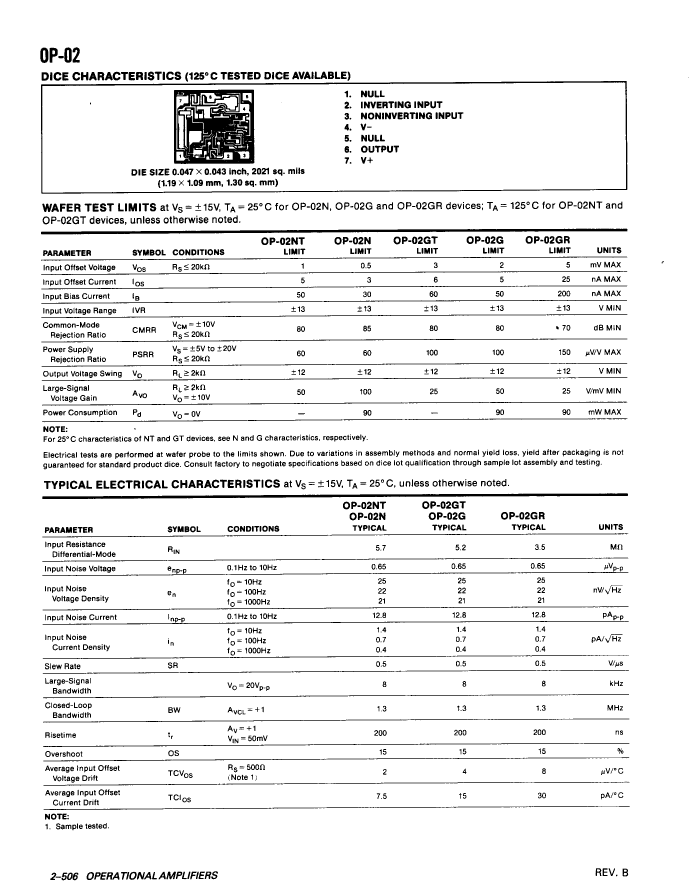

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| Contacts | 8 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.05 µA |
| frequency compensation | YES |
| Maximum input offset voltage | 3000 µV |
| JESD-30 code | R-PDIP-T8 |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 0.25 V/us |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Minimum voltage gain | 25000 |
| Base Number Matches | 1 |
| 5962-01-186-2550 | 5962-01-188-4380 | OP02GBC | OP02Z/883 | OP02J | OP02BJ/883 | OP02EP | |
|---|---|---|---|---|---|---|---|
| Description | IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC, Operational Amplifier | IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC, Operational Amplifier | IC IC,OP-AMP,SINGLE,BIPOLAR,DIE, Operational Amplifier | IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC, Operational Amplifier | IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier | IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier | IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC, Operational Amplifier |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIE | DIP | TO-99 | TO-99 | DIP |
| Reach Compliance Code | not_compliant | _compli | compliant | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| frequency compensation | YES | YES | YES | YES | YES | YES | YES |
| low-dissonance | NO | NO | NO | NO | NO | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 70 °C | 125 °C | 25 °C | 125 °C | 125 °C | 125 °C | 70 °C |
| Minimum operating temperature | - | -55 °C | 25 °C | -55 °C | -55 °C | -55 °C | - |
| Encapsulate equivalent code | DIP8,.3 | DIP8,.3 | DIE OR CHIP | DIP8,.3 | CAN8,.2 | CAN8,.2 | DIP8,.3 |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | MILITARY | OTHER | MILITARY | MILITARY | MILITARY | COMMERCIAL |
| Contacts | 8 | 8 | - | 8 | 8 | 8 | 8 |
| Maximum input offset voltage | 3000 µV | 1000 µV | - | 3000 µV | 3000 µV | 6000 µV | 1000 µV |
| JESD-30 code | R-PDIP-T8 | R-XDIP-T8 | - | R-XDIP-T8 | O-MBCY-W8 | O-MBCY-W8 | R-PDIP-T8 |
| Number of terminals | 8 | 8 | - | 8 | 8 | 8 | 8 |
| Package body material | PLASTIC/EPOXY | CERAMIC | - | CERAMIC | METAL | METAL | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | - | DIP | - | - | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | ROUND | ROUND | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | - | IN-LINE | CYLINDRICAL | CYLINDRICAL | IN-LINE |
| minimum slew rate | 0.25 V/us | 0.25 V/us | - | 0.25 V/us | 0.25 V/us | 0.25 V/us | 0.25 V/us |
| surface mount | NO | NO | - | NO | - | - | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | - | THROUGH-HOLE | WIRE | WIRE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | - | 2.54 mm | - | - | 2.54 mm |
| Terminal location | DUAL | DUAL | - | DUAL | BOTTOM | BOTTOM | DUAL |
| Is it lead-free? | - | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| package instruction | - | - | - | DIP, DIP8,.3 | , CAN8,.2 | , CAN8,.2 | DIP, DIP8,.3 |
| JESD-609 code | - | - | - | e0 | e0 | e0 | e0 |
| Terminal surface | - | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
