R185266000 datasheet, PDF - EEWORLD Datasheet

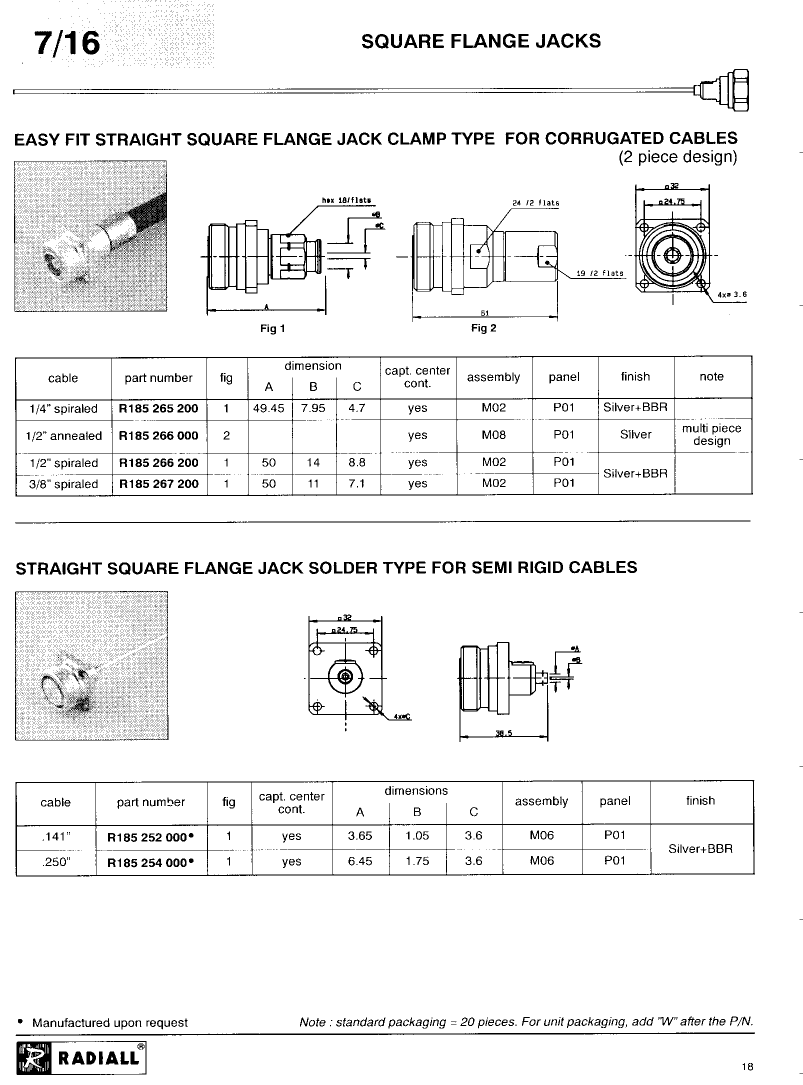

R185266000: DescriptionRF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R185266000 Overview

RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CONTACT
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
Insertion loss	0.14 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	7/16
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	7.5 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP
voltage standing wave ratio	1.04
Base Number Matches	1

	R185266000	R185266000W
Description	RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack	RF Connector, Female, Panel Mount, Cable Mount, Clamp Terminal, Jack
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Other features	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CONTACT	STANDARD: IEC 169-4; DIN 47223, CAPTIVE CONTACT
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	SILVER	SILVER
Contact completed and terminated	SILVER	SILVER
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Coupling type	THREADED	THREADED
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	YES	YES
Insertion loss	0.14 dB	0.14 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	7/16	7/16
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	7.5 GHz	7.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
Termination type	CLAMP	CLAMP
Base Number Matches	1	1
