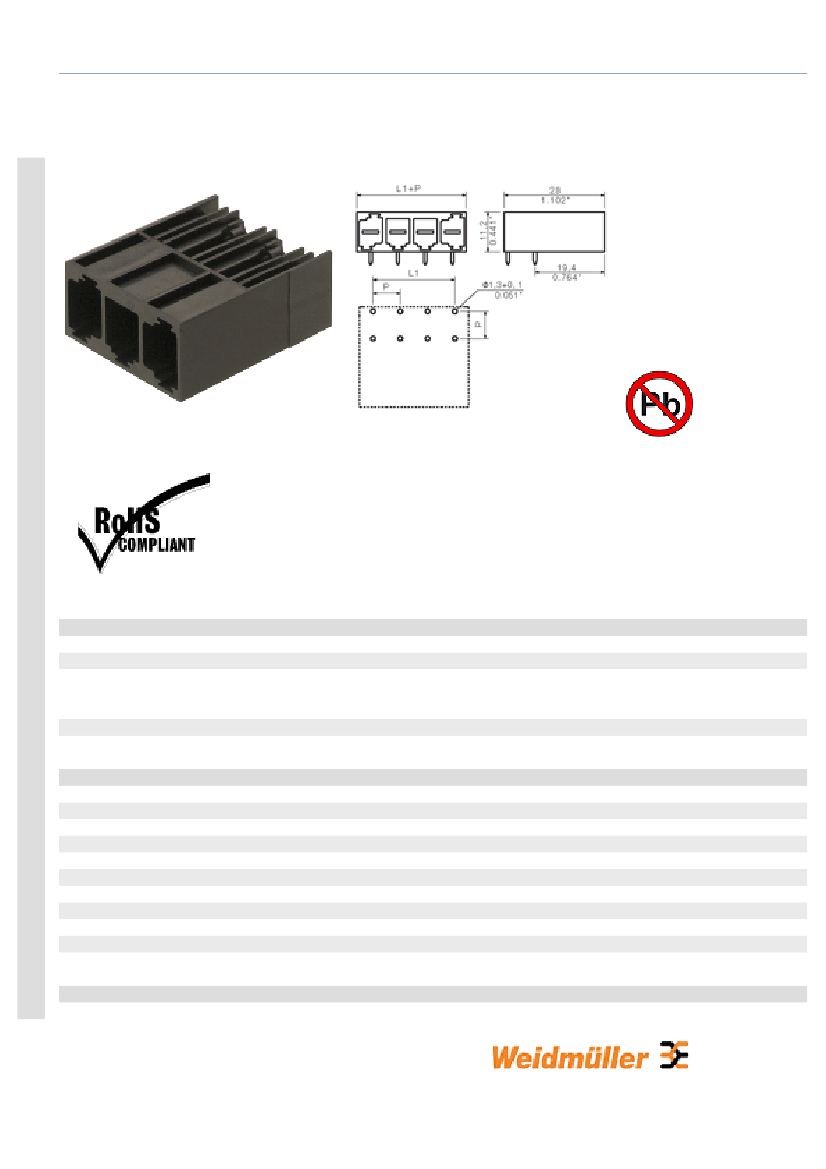

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62/270 | SV 7.62/270G
Material data
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
black
Similar to RAL 9011
IIIa
V-0
>= 200
Copper alloy
tinned
-25 °C
100
-25 °C
55 °C
41 A
38 A
38 A
31 A
500 V
6 kV
630 V
6 kV
800 V
6 kV
300 V
31 A
600 V
5A
300 V
31 A
600 V
5A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Plug
connectors, solder connection, pitch 7.62 | SV 7.62/270 | SV 7.62/270G
Approvals
Approvals institutes
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
SV.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1822750000
1822760000
1822770000
1822780000
1822790000
1822800000
1822810000
1822820000
1822830000
1822840000
Part designation
SV 7.62/02/270G 3.5 SW
SV 7.62/03/270G 3.5 SW
SV 7.62/04/270G 3.5 SW
SV 7.62/05/270G 3.5 SW
SV 7.62/06/270G 3.5 SW
SV 7.62/07/270G 3.5 SW
SV 7.62/08/270G 3.5 SW
SV 7.62/09/270G 3.5 SW
SV 7.62/10/270G 3.5 SW
SV 7.62/11/270G 3.5 SW
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 2, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 3, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 4, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 5, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 6, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 7, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 8, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 9, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 10, 270°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 11, 270°, Box
-3-
