760125559 | N-036-DZ-8W-FMUYL/B2
TeraSPEED® Low Smoke Zero Halogen Riser Distribution Cable,
interlocking aluminum armored with low smoke zero halogen riser jacket,
36 fiber multi-unit with 12 fiber subunits
Product Classification
Portfolio
Product Type
Regional Availability
CommScope®
Fiber indoor cable
Asia | Australia/New Zealand | EMEA | Latin America | North America
Standards And Qualifications
EN50575 CPR Cable EuroClass
Cable Qualification Standards
B2ca | s2 | d2 | a1
ANSI/ICEA S-83-596 | Telcordia GR-409

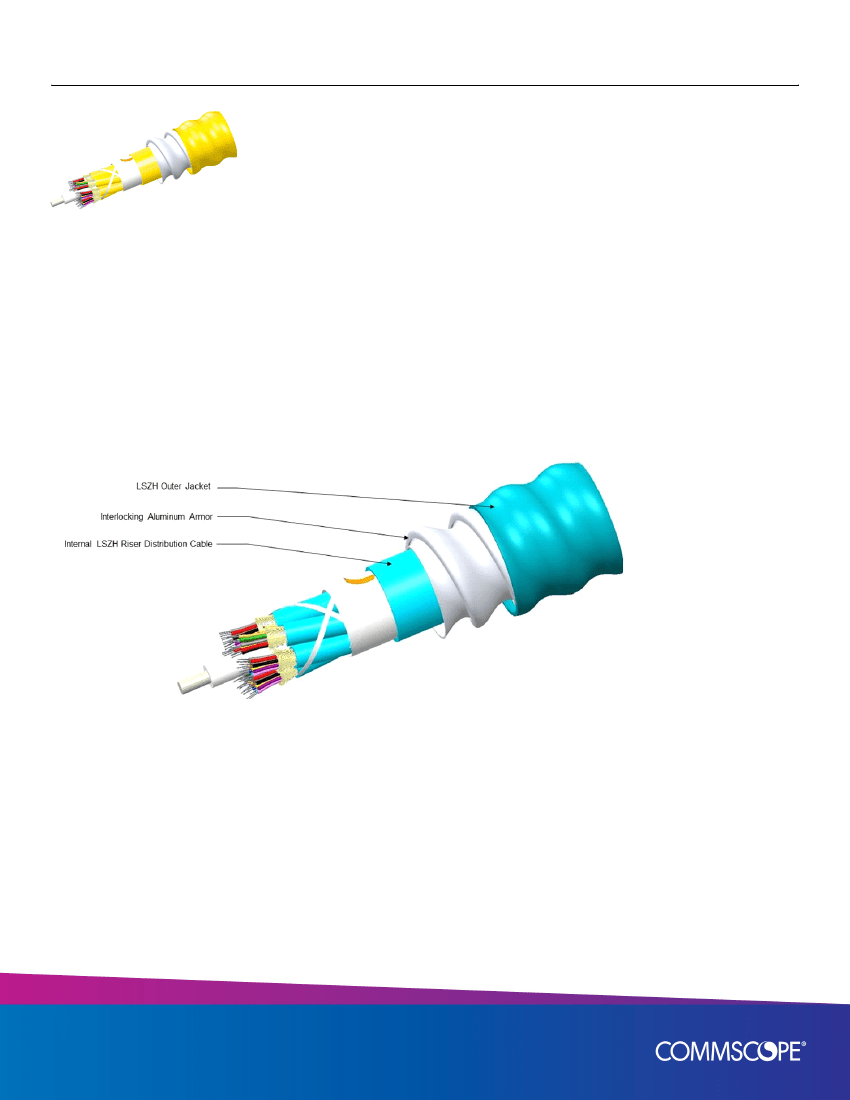

Representative Image
General Specifications
Cable Type
Construction Type
Subunit Type
Distribution
Armored
Gel-free
Construction Materials
Fiber Type Solution
Total Fiber Count
Armor Type
G.652.D and G.657.A1 , TeraSPEED®
36
Interlocking aluminum
page 1 of 3
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
760125559 | N-036-DZ-8W-FMUYL/B2
Fiber Type
Fiber Type, quantity
Fibers per Subunit, quantity
Jacket Color
G.652.D and G.657.A1, TeraSPEED®
36
12
Yellow
Dimensions
Buffer Tube/Subunit Diameter
Cable Weight
Diameter Over Armor
Diameter Over Jacket
Subunit, quantity
6.07 mm | 0.24 in
276.0 lb/kft | 411.0 kg/km
20.96 mm | 0.83 in
23.00 mm | 0.91 in
3
Physical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
46.0 cm | 18.1 in
32.2 cm | 12.7 in
Tensile Load, long term, maximum
90 lbf | 400 N
Tensile Load, short term, maximum
300 lbf | 1335 N
Vertical Rise, maximum
99.0 m | 324.8 ft
Flame Test Specifications
Flame Test Listing
Flame Test Method
NEC OFCR-LS (ETL) and c(ETL)
IEC 60332-3 | IEC 60754-2 | IEC 61034-2 | IEEE 383 | UL 1666 | UL 1685
Environmental Specifications
Environmental Space
Installation Temperature
Operating Temperature
Storage Temperature
Low Smoke Zero Halogen (LSZH) | Riser
-10 °C to +60 °C (+14 °F to +140 °F)
-20 °C to +70 °C (-4 °F to +158 °F)
-40 °C to +70 °C (-40 °F to +158 °F)
Mechanical Test Specifications
Compression
Compression Test Method
Flex
Flex Test Method
Impact
Impact Test Method
Strain
Strain Test Method
485 lb/in | 85 N/mm
FOTP-41 | IEC 60794-1 E3
25 cycles
FOTP-104 | IEC 60794-1 E6
25.80 ft lb | 35.00 N-m
FOTP-25 | IEC 60794-1 E4
See long and short term tensile loads
FOTP-33 | IEC 60794-1 E1
page 2 of 3
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
760125559 | N-036-DZ-8W-FMUYL/B2
Twist
Twist Test Method
10 cycles
FOTP-85 | IEC 60794-1 E7
Environmental Test Specifications
Heat Age
Heat Age Test Method
Low High Bend
Low High Bend Test Method
Temperature Cycle
Temperature Cycle Test Method
-20 °C to +85 °C (-4 °F to +185 °F)
IEC 60794-1 F9
-10 °C to +60 °C (+14 °F to +140 °F)
FOTP-37 | IEC 60794-1 E11
-20 °C to +70 °C (-4 °F to +158 °F)
FOTP-3 | IEC 60794-1 F1
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
CENELEC
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
EN 50575 compliant, Declaration of Performance (DoP) available
Included Products
CS -8W-TB (Product Component—not orderable)
—
TeraSPEED ® Singlemode Fiber
CS-8W-
Component—
TeraSPEED®
* Footnotes
Operating Temperature
Specification applicable to non-terminated bulk fiber cable
page 3 of 3
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
