1811790000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1811790000

1811790000: DescriptionBarrier Strip Terminal Block, 24A, 2.5mm2, 1 Row(s), 1 Deck(s), ROHS COMPLIANT; CategoryThe connector terminals; File Size89KB，9 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1811790000 Overview

Barrier Strip Terminal Block, 24A, 2.5mm2, 1 Row(s), 1 Deck(s), ROHS COMPLIANT

1811790000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: UL 94V-0
Fastening method	SPRING LOADED
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	8
Rated current	24 A
Rated voltage	630 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	14 AWG
Base Number Matches	1

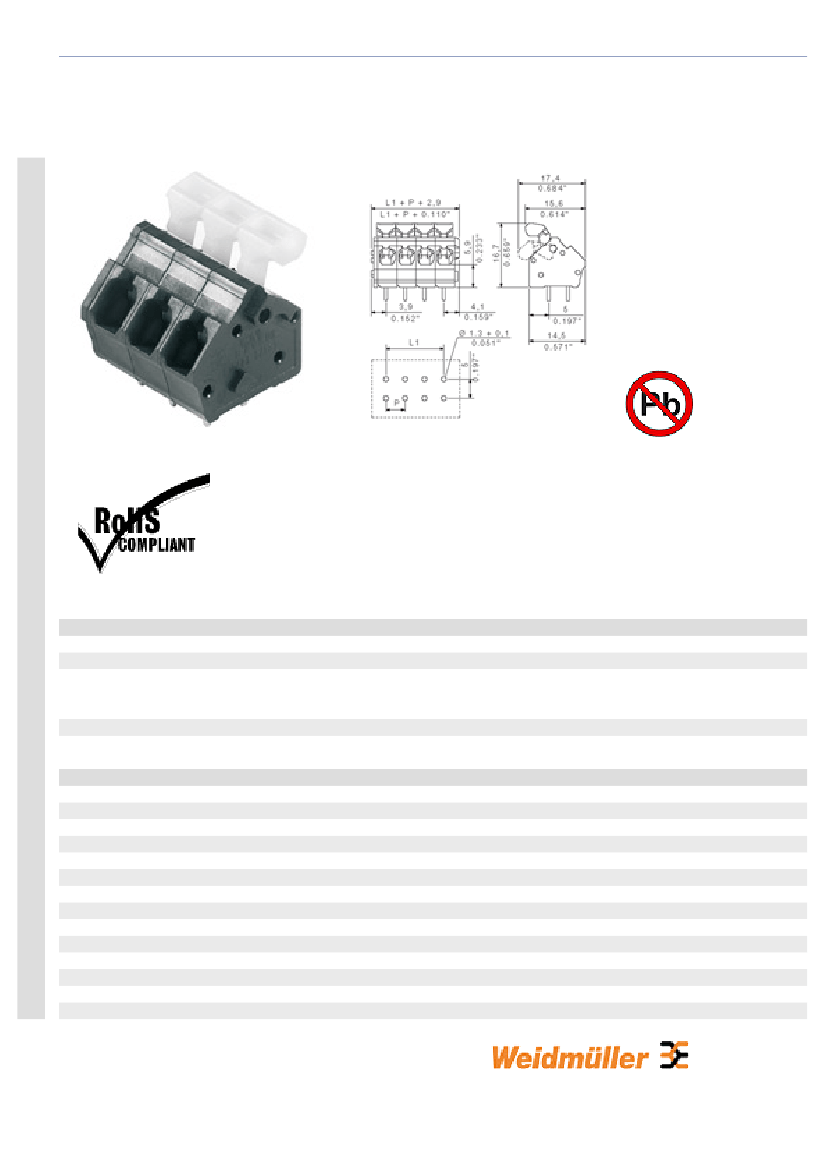

Preview

Download Datasheet

View All

General ordering data

Order No.

Part designation

Version

EAN

Qty.

System parameters

Product family

Conductor connection system

Fitted to PCB

Outgoing direction of conductor

Pitch

Pitch in inch

No. of poles

Max. adjacent poles per row

No. of rows

Solder pin length

Dia. of fitting hole

No. of solder pins per pole

Screwdriver blade

Stripping length

1811790000

LMZFL 5/8/135 3.5GN

PCB terminal, Tension clamp connection,

Soldered connection, Clamping range, max.: 2.5

mm², Pitch: 5.00 mm, No. of poles: 8, 135°, Box

4032248290963

100 pc(s).

System LM

Tension clamp connection

Soldered connection

135°

5 mm

0.197 inch

3.5 mm

1.3 mm

0.4 x 2.5

6 mm

-1-
