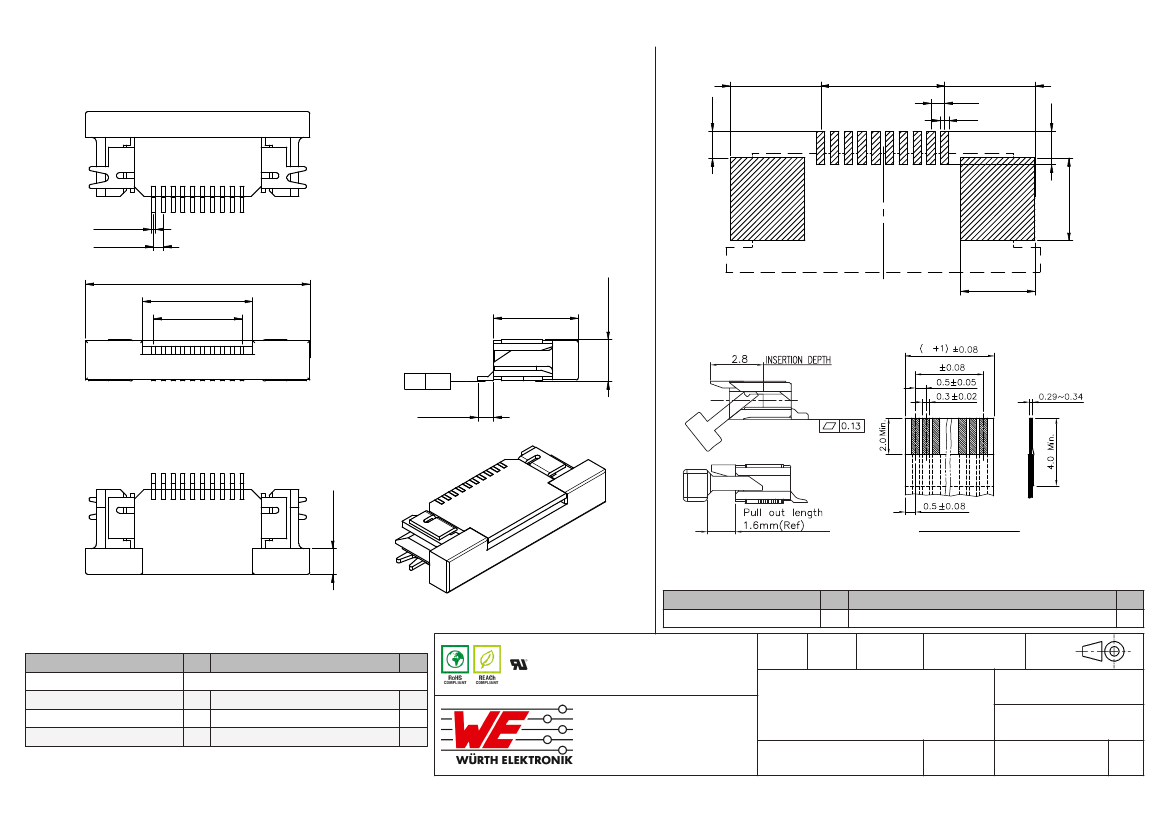

Kind Properties:
Properties
Pitch
Durability
P
Value
0.5
25 Mating cycles
Unit
mm
Certification:
REACh Approval
UL Approval
Conform or declared [(EC)1907/2006]
E323964
Packaging Properties:
Properties
Value
Tape and Reel
Qty.
2000
Packaging
Packaging Unit
Material Properties:
Insulator Material
Insulator Flammability Rating
Insulator Color
Actuator Material
Actuator Flammability Rating
Actuator Color
Contact Material
Contact Plating
Contact Type
Solder Tabs
LCP
UL94 V-0
Ivory
PA9T
UL94 V-0
Black
Phosphor Bronze
100 (µ") Tin over 50 (µ") Nickel
Stamped
Brass
Specific Recommendation:
In order to handle products correctly, please download our precaution guide which is available under “Tutorials” on our Homepage: www.
we-online.com/precaution_6873xx124422
General Information:
Operating Temperature
-25 up to +85 °C
Electrical Properties:
Properties
Rated Current
Working Voltage
Withstanding Voltage
Contact Resistance
Insulation Resistance
R
R
ISO
1 min
I
R
Test conditions
Value
0.5
50
250
20
100
Unit
A
V (AC)
V (AC)
mΩ
MΩ
max.
min.
Tol.
Certification:
RoHS Approval
Compliant [2011/65/EU&2015/863]
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
GM
DESCRIPTION
001.004
2020-04-07
DIN ISO 2768-1m
WR-FPC SMT ZIF Horizontal
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
68713614022
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
Top Contact, 0.50 mm
eiCan
Valid
2/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

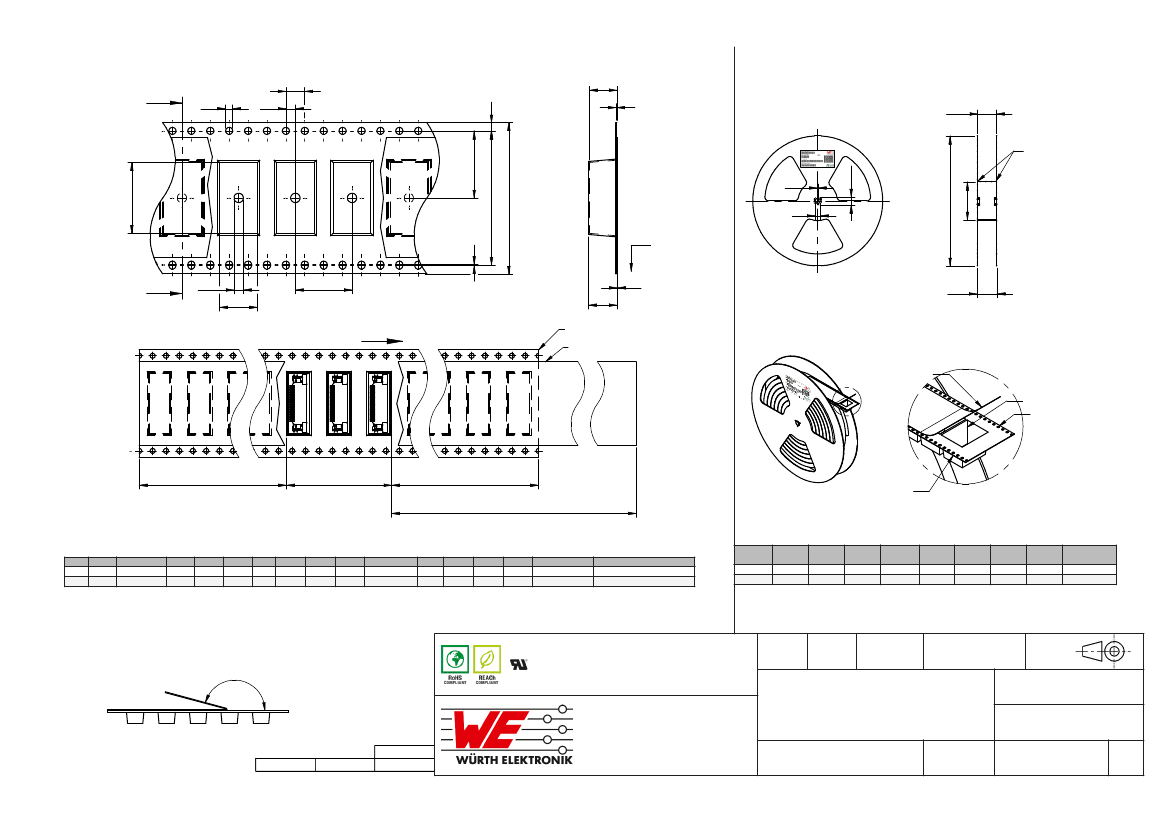

Packaging Specification - Tape and Reel: [mm]
P0
K0
E
T
Packaging Specification - Reel: [mm]
W3
W1
close to center
B
D
A
D0
P2
B0
F
W
S
C
Top Cover
Tape
T1
T2
Carrier Tape
W2
A
End
D1
A0
P1
Feeding direction
d
Start
Cover Tape
detail B
B
Cover Tape
Chip Cavity
Sprocket Hole
No Component
min. 160mm
Components
No Component
min. 100mm
Cover Tape
min. 400mm
A
(mm)
± 2,0
330,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
Embossment
NB: Actual packaging may slightly differ from datasheet
Packaging is reffered to the international standard
IEC 60286-3:2013
A0
typ.
5,8
B0
typ.
24,7
W
+0,3/-0,1
44,0
T
max.
1,0
T1
max.
0,1
T2
max.
3,4
K0
typ.
2,4
P0
±0,1
4,0
P1
±0,1
12,0
P2
±0,1
2,0
D0
+0,1/ -0,0
1,5
D1
min.
2,0
E
±0,1
1,75
S
±0,1
40,4
F
±0,1
20,2
Tape Type 3
Polystyrene
VPE / packaging unit
pcs.
2000
D
(mm)
min.
20,20
N
(mm)
min.
100,00
W1
(mm)
+ 2,0
44,40
W2
(mm)
max.
50,40
N
W3
(mm)
min.
43,90
A
W3
(mm)
max.
47,40
Material
Polysytrene
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
GM
001.004
2020-04-07
DIN ISO 2768-1m
165° -180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WR-FPC SMT ZIF Horizontal
ORDER CODE
68713614022
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
Pull-of force
Tape width
44 mm
0,1 N - 1,3 N
Top Contact, 0.50 mm
eiCan
Valid
3/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

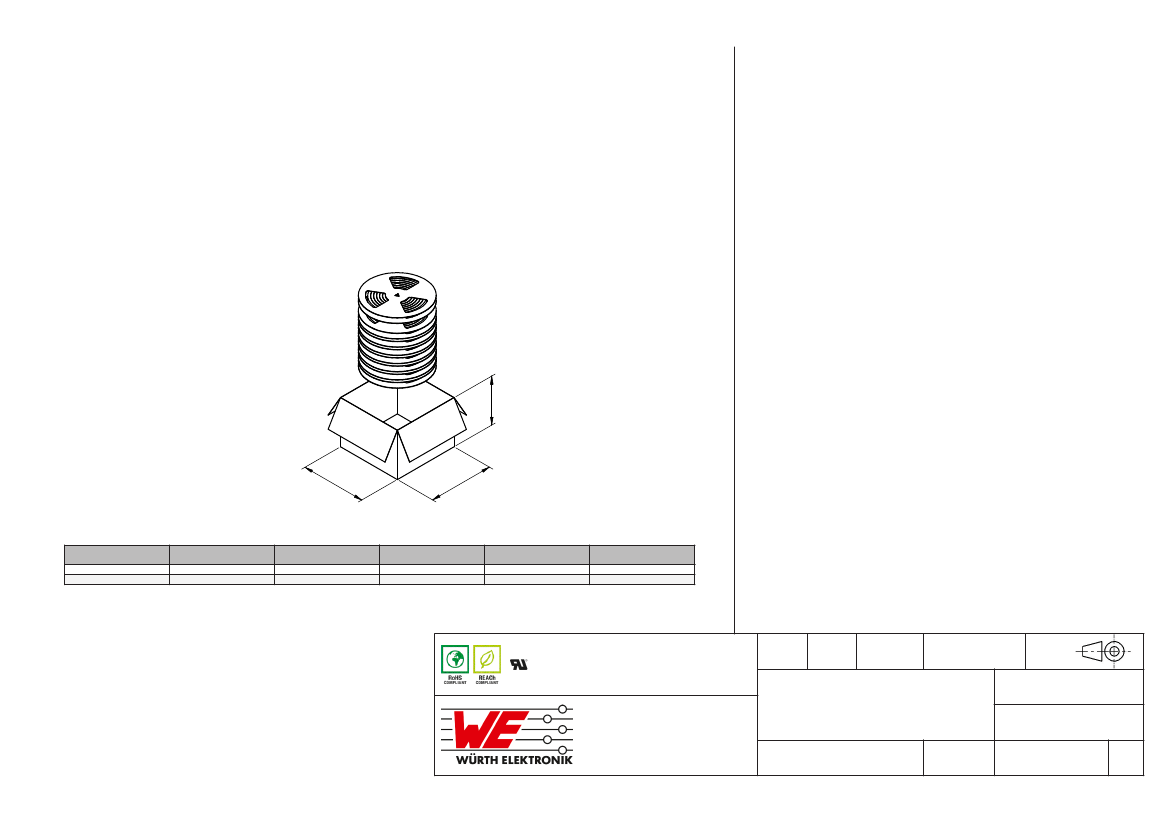

Packaging Specification - Carton: [mm]
W
C
L
C
NB: Actual packaging may slightly differ from datasheet
L
C
(mm)
typ.
365
W
C
(mm)
typ.
365
H
C
(mm)
typ.
220
No. of reel
outer packaging
reel.
4
Packaging
Unit
pcs.
8000
Material
Paper
H
C
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
GM
DESCRIPTION
001.004
2020-04-07
DIN ISO 2768-1m
WR-FPC SMT ZIF Horizontal
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
68713614022
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
Top Contact, 0.50 mm
eiCan
Valid
4/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

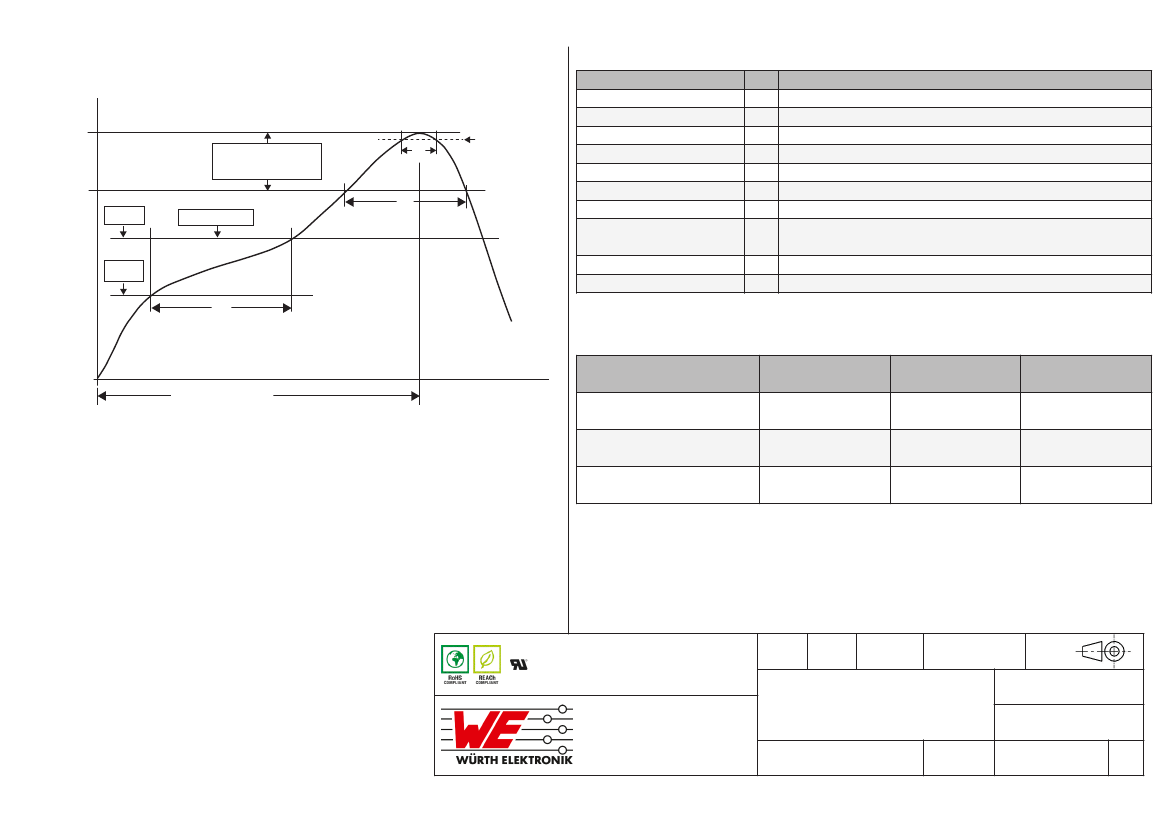

Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature
Min
1)
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
T
p
≤ T
c
, see Table below
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak
temperature
Temperature
Preheat Area
T
s min
t
S
Ramp-down Rate (T
P
to T
L
)
Time 25°C to peak temperature
1)
refer
to IPC/JEDEC J-STD-020D
refer to IPC/ JEDEC J-STD-020E
Package Classification Reflow Temperature (T
c
):
25
Time 25°C to Peak
Properties
Volume mm³
<350
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
Time
PB-Free Assembly | Package Thickness
260 °C
< 1.6 mm
1)
PB-Free Assembly | Package Thickness
260 °C
1.6 mm - 2.5 mm
PB-Free Assembly | Package Thickness
250 °C
≥ 2.5 mm
1)
refer
to IPC/JEDEC J-STD-020D
refer to IPC/ JEDEC J-STD-020E
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
GM
DESCRIPTION
001.004
2020-04-07
DIN ISO 2768-1m
WR-FPC SMT ZIF Horizontal
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
68713614022
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
Top Contact, 0.50 mm
eiCan
Valid
5/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
