1SSA125203R0100 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 1SSA125203R0100

1SSA125203R0100: DescriptionStrip Terminal Block, 13.5A, 1mm2, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size119KB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric Compare View All

1SSA125203R0100 Overview

Strip Terminal Block, 13.5A, 1mm2, 1 Row(s), 1 Deck(s)

1SSA125203R0100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	94V-0
Fastening method	IDC
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	3
Rated current	13.5 A
Rated voltage	320 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	1 mm2
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

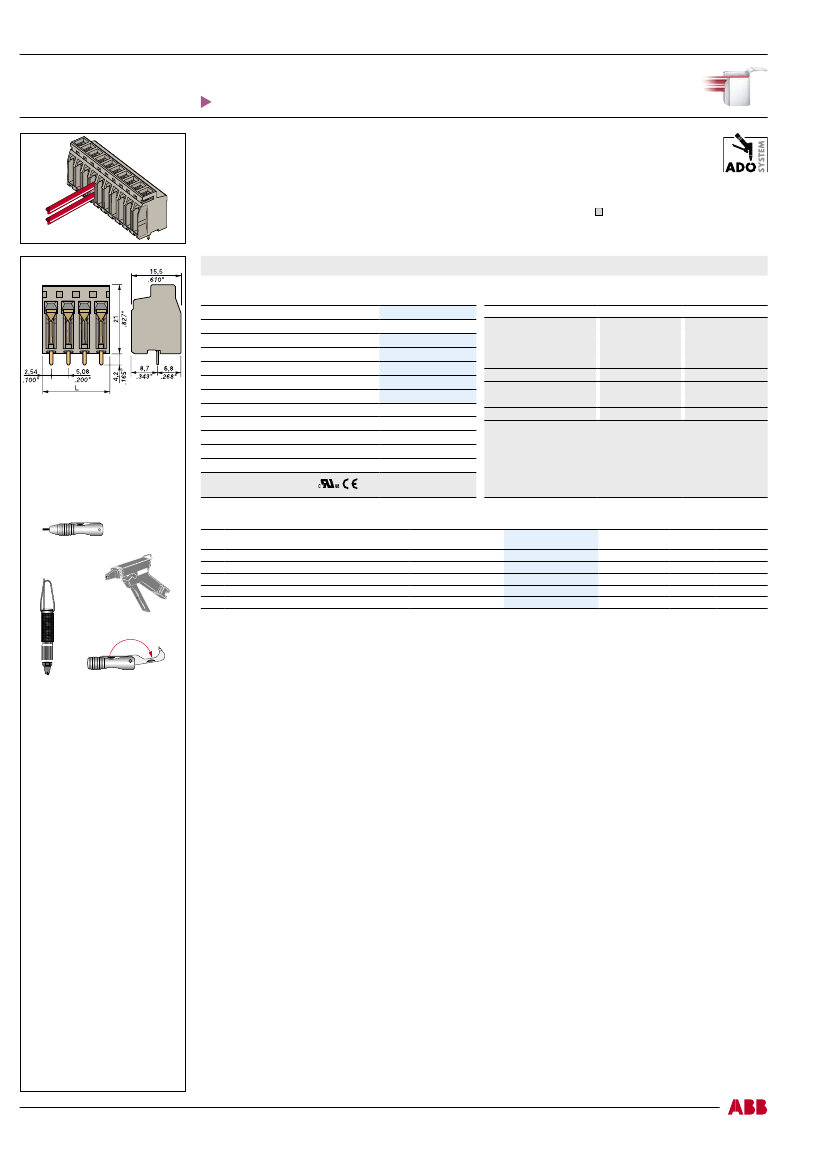

L 125 200

P.C.B. terminal blocks

0.55 x 1 x 4.2 mm

.021" x .039" x .165"

Expert Range - Insulation displacement connection (A.D.O.)

Terminal blocks for connection parallel to P.C.B.

Single deck block, 1 pin per pole.

Single-block from 2 to 6 poles without loss of spacing.

A.D.O. terminal blocks allow connection of 2 wires of

the same size and nature, up to 1 mm².

P.C.B. thickness ≤ 3.2 mm

.126"

P.C.B. holes Ø 1.3 mm

.051"

Body : UL94 V0 - PA

Grey

1 mm² - Spacing 5.08 mm

.200"

Ordering details

N. Poles

Weight kg

Packaging

L. mm

Order code

1SSA

125 202

R0100

1SSA

125 203

R0100

1SSA

125 204

R0100

1SSA

125 205

R0100

1SSA

125 206

R0100

0.0032

100

10.16

0.0056

100

15.24

0.0064

100

20.32

0.0053

25.40

0.0104

30.48

Other numbers of poles, consult us

Technical data

IEC

Wire size

Solid wire

Stranded wire

With ferrule

Rated voltage

Rated current

Short-circuit current

Rated wire size / Gauge

Storage temperature range

Insulation resistance

Wire stripping length

Recommended screwdriver

Recommended torque

Protection

0.22 - 1 mm²

320 V

13.5 A

1 mm²

24 - 16 AWG

UL / CSA

300 V

10 A

16 AWG (Solid)

-20 ~ +80 °C

≥ 10

Ω

no wire stripping required

no screwdriver

IP 20 /

NEMA 1

Accessories

Rep.

Description

Type

OUMAD

OUPAD

OUTAD

EXAD2

OUTA

Order code

1SNA

179 466

R0600

1SNA

178 944

R0400

1SNA

205 710

R1100

1SNA

205 721

R0000

1SNA

205 284

R0300

Packaging

Weight kg

0.0290

0.2050

0.5000

0.0290

Manual tool

Semi-automatic tool

Pneumatic tool

Extraction tool

Removable head kit

P200020
