PRODUCT INFORMATION
ZVL1.5
The integrated cross-connection
The heart of the modular terminal
Integrated cross-connections in each individual element are unique to
this snap-connect terminal;
On the one side there is the socket contact and on the other the pins.
They reliable connect together when the elements are clipped together.
So there is no need for time-consuming assembly of cross-connections. The
modular stripwise construction lets you build distribution strips of almost
unlimited length.
Tension clamp from the Z series
Front wiring
• best access and unrestricted view
• low pressure required to move the spring
• maintenance-free

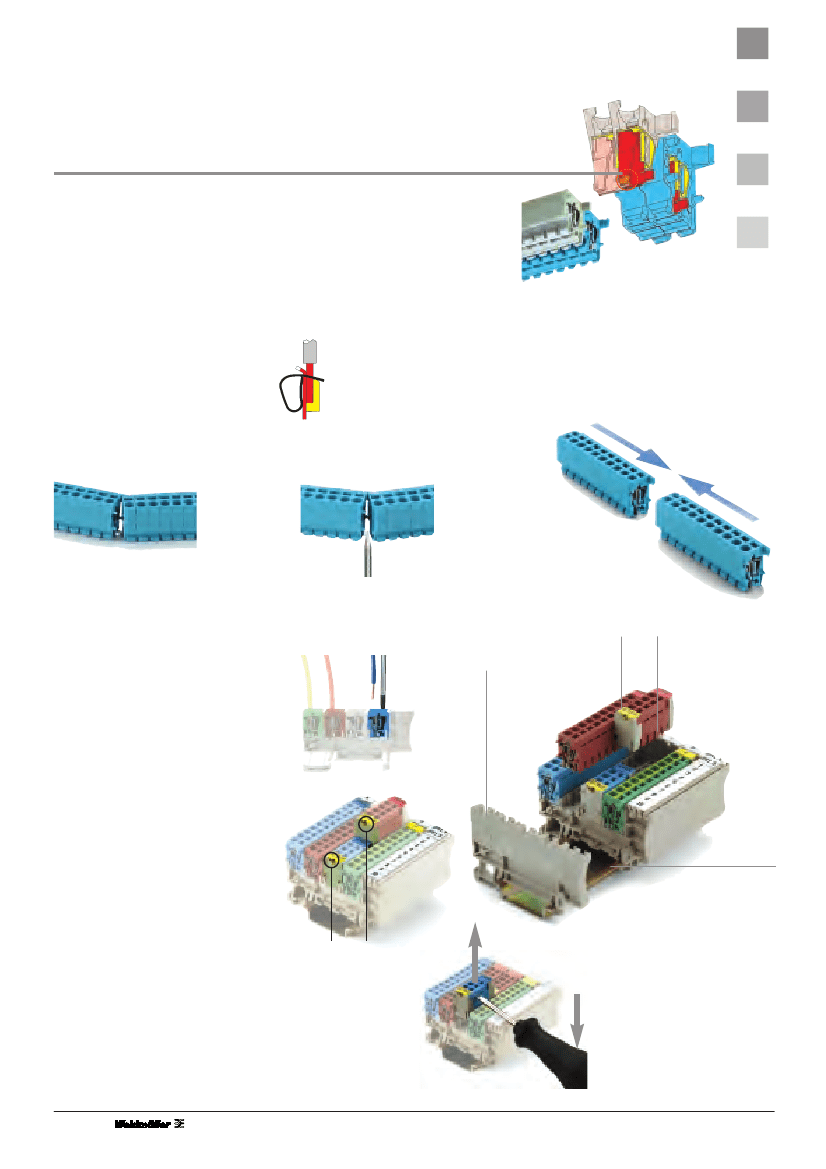

Easy to assemble
• easy to clip together and to dismantle
• variable number of connections
• assembly errors are a thing of the past
simply click together . . .
easy to dismantle . . .
. . . or using a screwdriver
. . . by hand
ZPV 1.5
Easy, money-saving installation
• ZPV 1.5 is modular. You decide on site
the number of connections you need.
• The blocks can be modified in seconds
• ZPV 1.5 with 4 elements bays is the
basis of the system
• No electrical connection between
the individual rows
• ZPV 1.5 fits into the smallest enclosure
The potential distribution system
Marker carrier
Endplate also for
marking distributor
strips
Cross-connections
already integrated
Base elements
latches onto a
TS 35 rail
Comfortable marking and
partitioning
• Markers go directly onto the base
element or on marker carriers.
• Marker carriers with and without lugs.
• Easy to read marking by rows possible
• Electrical separation along a row using
marker carriers.
BZT 1.5 ZA
with lugs
BZT 1.5 o.ZA
without lugs
Easy to dismantle
Levering off the distribution strip
with a screwdriver releases the
latch.
2
ZIK•ZAK
The modular solution . . .
Easy to assemble and
quick to dismantle
• The ZVL 1.5 distributor strips are simply
latched into the base element – that’s all.
• Unbelievably easy to dismantled, even in
wired-up state – just lever out the
distributor strip with a screwdriver.
The ZIK•ZAK module system
brings benefits long overdue

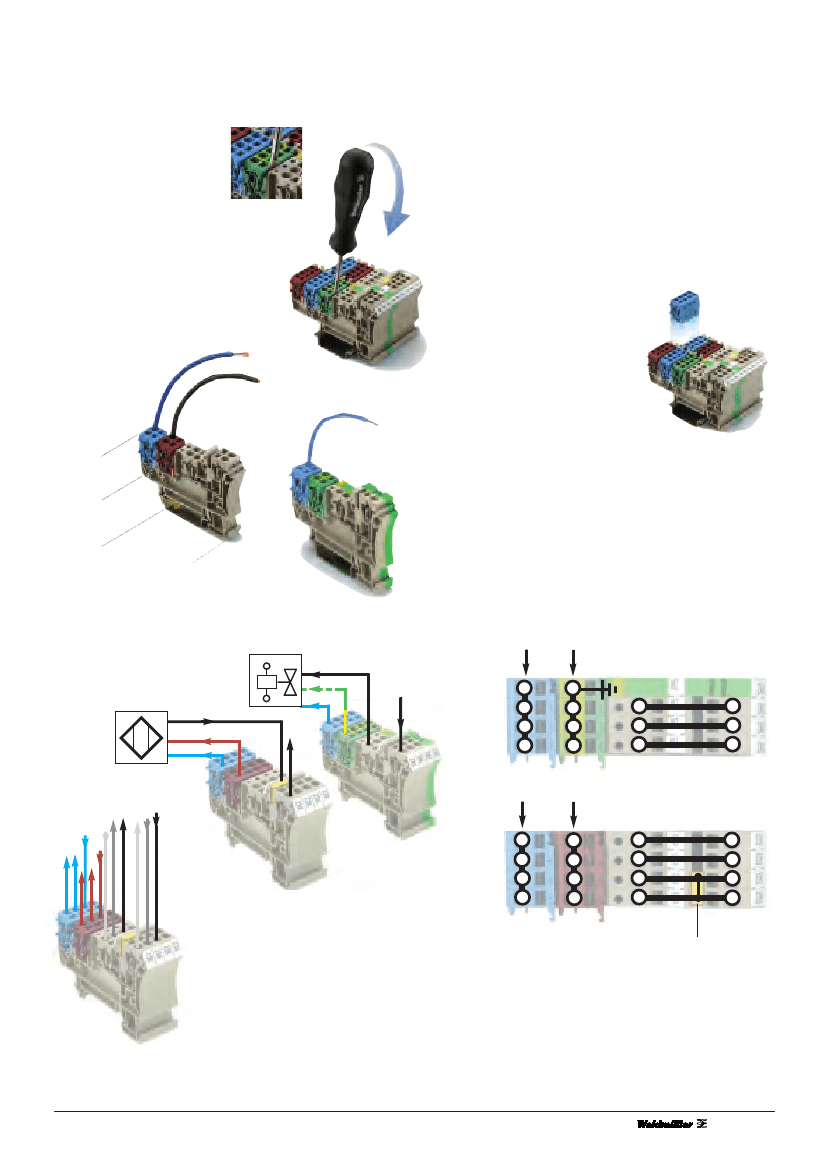

Easy feed
for initators ...
• Potential is fed through 1 additional standard base
element => n + 1 base element or distributor elements
(n = number of initiators)
• Automatic distribution of plus and minus via the built-in
cross-connection in the distributor strips
... and actuators
• Potential is fed through 1 additional PE base element
=> n + 1 base element or distributor elements
(n = number of actuators)
• Automatic distribution of plus and minus via the built-in
cross-connection in the distributor strips
• The PE base element is put at the left-hand side of the
terminal block for construction reasons.
• Only 1 PE base element is needed
n+1
n+1
The modular solution as ...
an initiator/actuator terminal
Feed (-)
Feed (PE)
S
PE
S
S
Feed (-)
Feed (PE)
S
+
-
C
AB C A B
X
Y
...
a
or ...
feed-though terminal (A, B, C)
... as combined
and a potential distribution terminal (X, Y) ...
ZQV 2.5/2
... or ...
?
3
The ZIK•ZAK modular distribution system
takes you to a new world of perfect wiring.

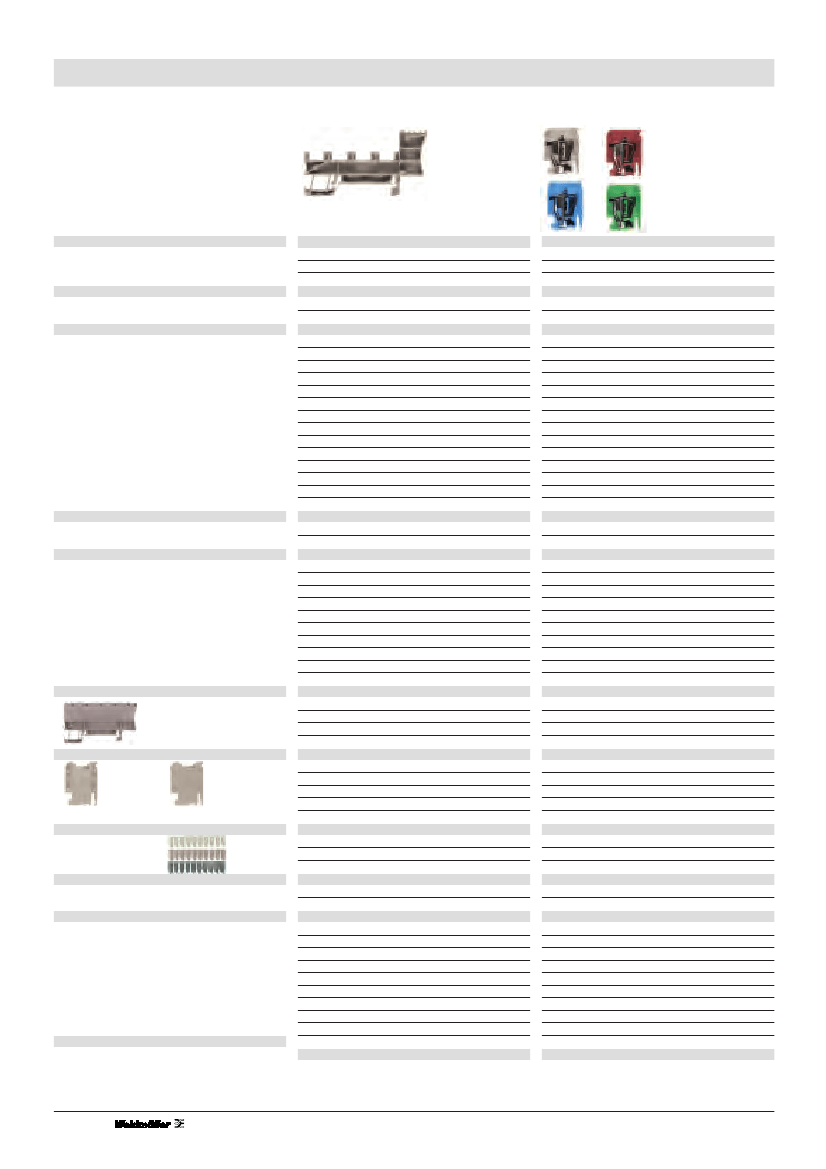

ZPV 1.5 Variable-pole potential distributors
ZPV 1.5
Terminal base
ZVL 1.5
Distributor strips
Dimensions/Approvals
Width/length/height (mm)
with TS 35 x 7.5
W
Width/length/height (mm)
Insulation stripping length/clamping screw/bit size
Rated data VDE 0611 Part 1/8.92 / IEC 60 947-7-1
Rated voltage/current/cross-section
Rated peak voltage/contamination level
Further technical data
Clampable conductor
mm2
Solid H07V-U
mm2
Stranded H07V-R
mm2
Flexible H07V-K and ferrule according to DIN 46 228/1 mm2
Flexible H07V-K and ferrule with plastic collar
mm2
arq#
5,08/68/38
arq#
5,08/12.9/17.5
8 mm/-/3,5 x 0,6
250 V/17,5 A/1,5 mm
2
4 kV/3
250 V/17,5 A/1,5 mm
2
4 kV/3
0,08 ... 2,5
0,5 ... 2,5
0,5 ... 2,5
0,5 ... 1,5
0,5 ... 1,5
Plug gauge according to IEC 60 947-1
Continuous current of terminal block for conductor size
UL/CSA rated data
Voltage/current/conductor size
Voltage/current/conductor size
Ordering data
Standard version
Size
A1
24 A / 2,5 mm
2
300 V / 10 A / 26...14 AWG
300 V/ 10 A/ 26...14 AWG
W
ZPV 1.5
300 V / 10 A / 26...14 AWG
300 V/10 A/ 26...14 AWG
Type
ZVL 1.5
ZVL 1.5
ZVL 1.5
ZVL 1.5
ZVL
ZVL
ZVL
ZVL
ZVL
Type
ZAP/TW ZPV1,5
Cat. No.
1674650000
Qty.
50
1.5
1.5
1.5
1.5
1.5
Beige
Blue
Brown
Green
UL
CSA
Type
Wemid
Wemid
Wemid
Wemid
Cat. No.
1676630000
Qty.
100
Cat. No.
1649300000
1650360000
1650370000
1697820000
1711930000
1714700000
1714690000
1714680000
1678490000
1674650000
Qty.
100
2
100
2
100
2
100
2
100
20
20
20
20
50
Special version
Cross-connection
End plates/Dividers
Without pin and socket, beige
Without pin brown
Without pin blue
Without pin beige Wemid
For ZVL 1.5
Wemid
ZAP/TW ZPV 1,5
Marker carriers
BZT ZVL 1,5 o.ZA
BZT ZVL 1,5 ZA
1676620000
1676610000
100
100
BZT ZVL1.5 ZA
BZT ZVL1.5 o.ZA
3)
Reduction collar
ZRH for conductor 0.13...0.2 mm2
ZRH for conductor 0.25...0.5 mm2
ZRH for conductor 0.75...1 mm2
Screwdriver
SD to DIN 5264 A
Marking tags
Colour
White
Grey
Dark grey
ZRH 1.5N /1
ZRH 1.5N /2
ZRH 1.5N /3
1632140000
1632130000
1632120000
100
100
100
ZRH 1.5N /1
ZRH 1.5N /2
ZRH 1.5N /3
SD 0,6 x 3,5
1632140000
1632130000
1632120000
9008330000
100
100
100
1
For terminal base element ZPV 1.5
Marker carriers BZT ZVL 1.5
and for endplate ZAP/TW ZPV 1.5
Blank
Blank
Blank
Blank
ZGB15
ZGB30
DEK 5
ZS 10/5
WS 8/5
WS 10/5
WS 12/5
1636530000
1611930000
see Accessories
1610000000
1640740000
1675000000
1609960000
20
20
480
720
720
720
2
3
) Preassembled in blocks of 20
) Each standard pack contains 100 x 10-pole strips
4
