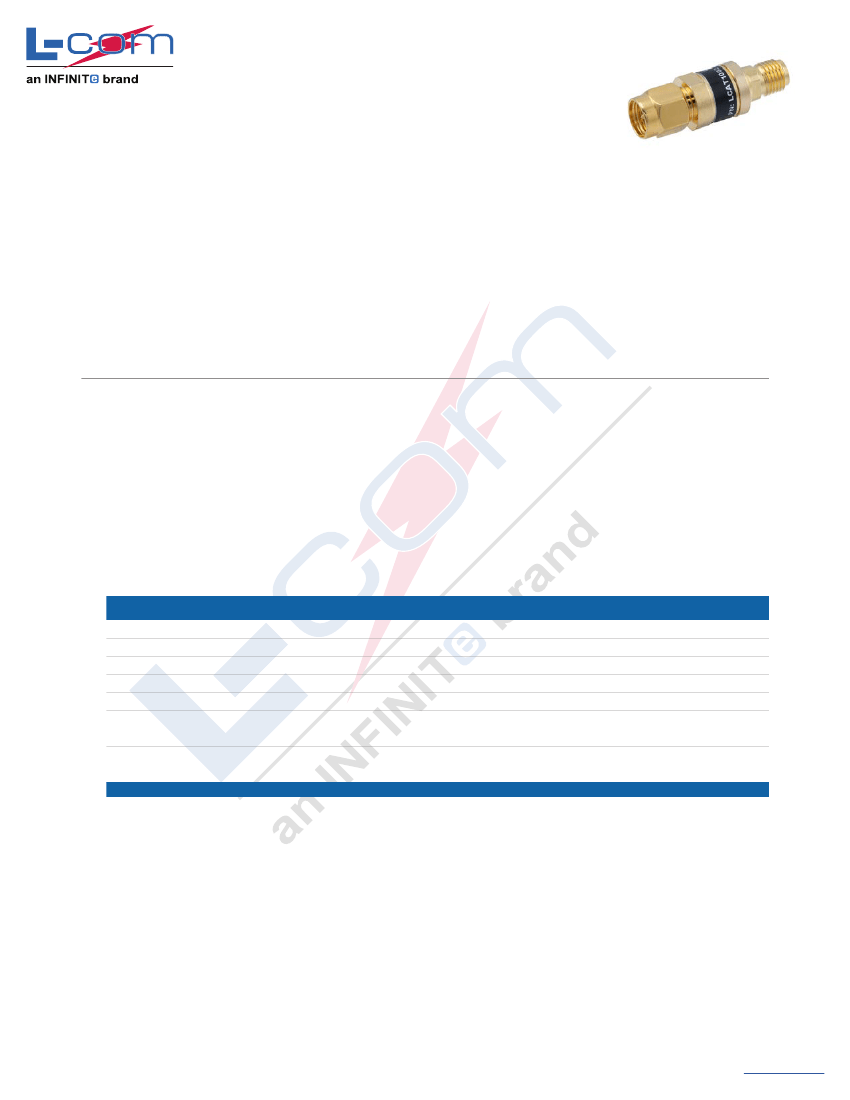

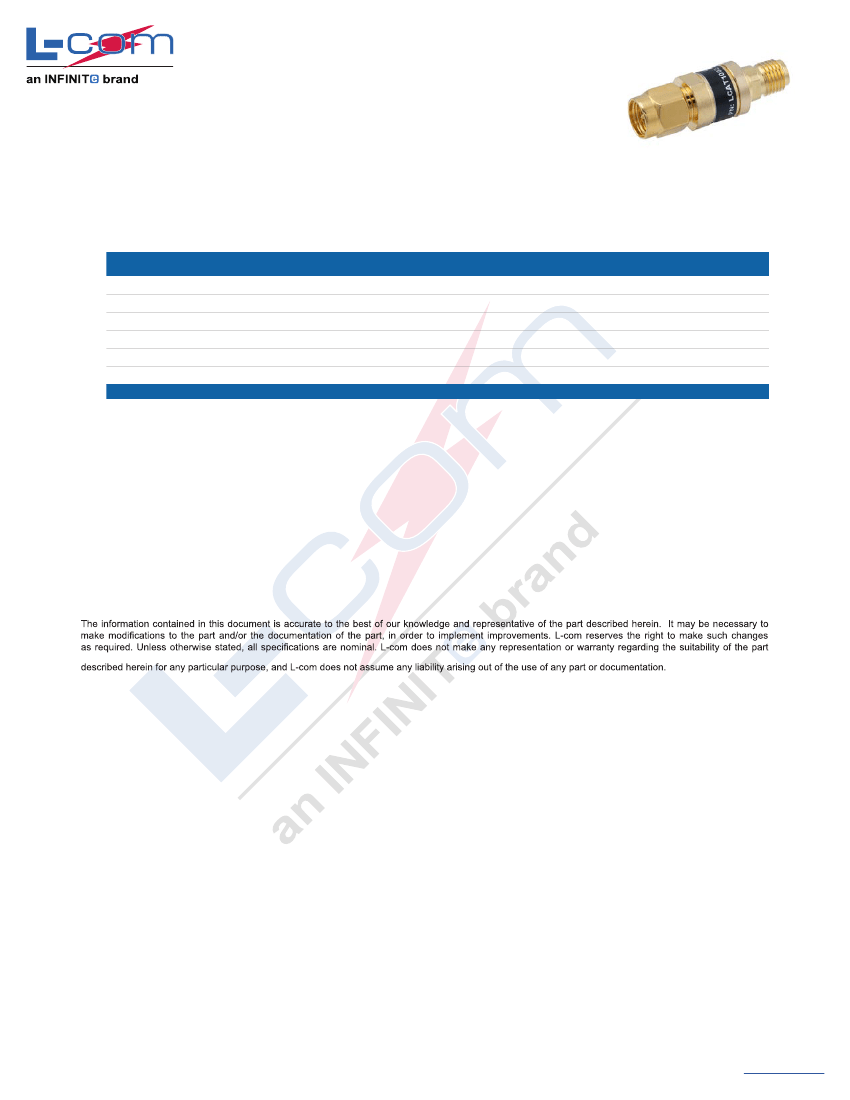

2W/20dB RF Fixed Attenuator, SMA Male to SMA
Female Brass Gold Body Up to 3 GHz
RF Fixed Attenuators Technical Data Sheet
Features
• SMA connector interface
• DC to 3 GHz Frequency Range
• Attenuation 20±0.6 dB
• Max Power 2 Watt (CW)
• VSWR < 1.2:1
LCAT1002-20
Applications
• Instrumentation
• RF test systems
• Prototyping and characterization
.
• Production systems
• Precision measurements
Description
L-com carries a wide range of fixed attenuators with a broad selection of attenuation levels and frequency ranges. RF fixed
attenuators lower the amplitude of a signal (attenuate) by specific amount and can be used in a wide variety of applications.
These attenuators are used when signal levels need to be reduced to protect measurement equipment or other circuitry, to
extend the range of power meters and amplifiers, and to impedance match circuits by reducing the VSWR seen by adjacent
components. RF attenuators can prevent signal overload in amplifiers, receivers and detectors, adjusting the signal level to
optimal power range.
Few RF components are as commonly used as fixed coaxial attenuators, and L-com carries one of the largest in-stock variet-
ies and ships them same day. The 20 dB Fixed Attenuator LCAT1002-20 is rated to 2 Watts and operates from DC to 3 GHz.
The versatile coaxial package uses SMA male to SMA female connectors and is also RoHS compliant.
Electrical Specifications
Description
Frequency Range
Impedance
Nominal Attenuation
Attenuation Accuracy
VSWR
Input Power, Peak
5µs pulse with 0.2% duty cycle
Input Power, CW
0.5W @ 125°C
.
2
Watts
Minimum
DC
Typical
50
20
0.6
Maximum
3
Units
GHz
Ohms
dB
dB
1.2:1
500
Watts
Mechanical Specifications
Size
Length
Width/Diameter
.
1.1811 in [30 mm]
0.312 in [7.92 mm]
0.022 lbs [9.98 g]
Brass, Gold
Weight
Body Material and Plating
Configuration
Design
Fixed
L-com, Inc. • 50 High St., West Mill, 3rd Floor, Suite #30 North Andover, MA 01845
© 2019 L-com, Inc All Right Reserved
Phone:
1-800-343-1455 •
sales@L-com.com
LCAT1002-20 REV 1.0
2W/20dB RF Fixed Attenuator, SMA Male to SMA
Female Brass Gold Body Up to 3 GHz
RF Fixed Attenuators Technical Data Sheet
Connectors
Description
Type
Contact Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size
Body Material and Plating
.
LCAT1002-20
Connector 1
SMA Male
Brass, Gold
Brass, Gold
Brass, Gold
5/16 inch
Brass, Gold
Connector 2
SMA Female
Beryllium Copper, Gold
Brass, Gold
Brass, Gold
Environmental Specifications
Temperature
Operating Range
-55 to +125 deg C
Compliance Certifications
Plotted and Other Data
Our portfolio includes coaxial cable assemblies, connectors, adapters and custom products as well as lightning and surge
protectors, NEMA rated enclosures, and an RF product line which includes antennas, amplifiers, passive, and active
components.
L-com, Inc. • 50 High St., West Mill, 3rd Floor, Suite #30 North Andover, MA 01845
© 2019 L-com, Inc All Right Reserved
Phone:
1-800-343-1455 •
sales@L-com.com
LCAT1002-20 REV 1.0
REVISIONS
REV.
A
INITIAL RELEASE
05/23/2019
BPUCHASKI
DESCRIPTION
DATE
APPROVED
© 2019 L-com, Inc All Right Reserved
L-com
PN: LCAT1002-20 Date Code: YYWW
APPLIED WRAP
LABEL
SMA FEMALE
CONNECTOR
SMA MALE
CONNECTOR
LCAT1002-20
CAD Drawing
.39
10
1.18
30
UNLESS OTHERWISE SPECIFIED
LEADING DIMENSIONS ARE INCHES
DIMENSIONS IN [ ] ARE MILLIMETERS
THE INFORMATION AND
DESIGN IN THIS DOCUMENT
IS THE PROPERTY OF
L-COM GLOBAL CONNECTIVITY.
ALL RIGHTS RESERVED.
2W/20dB RF Fixed Attenuator, SMA Male to SMA Female Brass Gold Body Up to 3 GHz
TOLERANCES:
.X=± .2 [5.08]
FRACTIONS
± 1/32
.XX=± .01 [ .25 ]
ANGLES ± 1
°
.XXX=± .005 [ .13 ]
ALL DIMENSIONS SHOWN
ARE FOR REFERENCE ONLY.
THIRD-ANGLE PROJECTION
1
OF
1
N/A
SIZE
CAGE
DRAWN BY
PART NUMBER
REV
50 High Street, West Mill, 3rd Floor, Suite #30
SHEET
North Andover, MA 01845 USA.
Phone: 1.800.341.5266
│
1.978.682.6936
Fax: 1.978.689.9484
SCALE
www.L-com.com
│e-mail:
CustomerService@L-com.com
THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT
ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
A
43321
BPUCHASKI
LCAT1002-20
A
LCAT1002-20 REV 1.0
