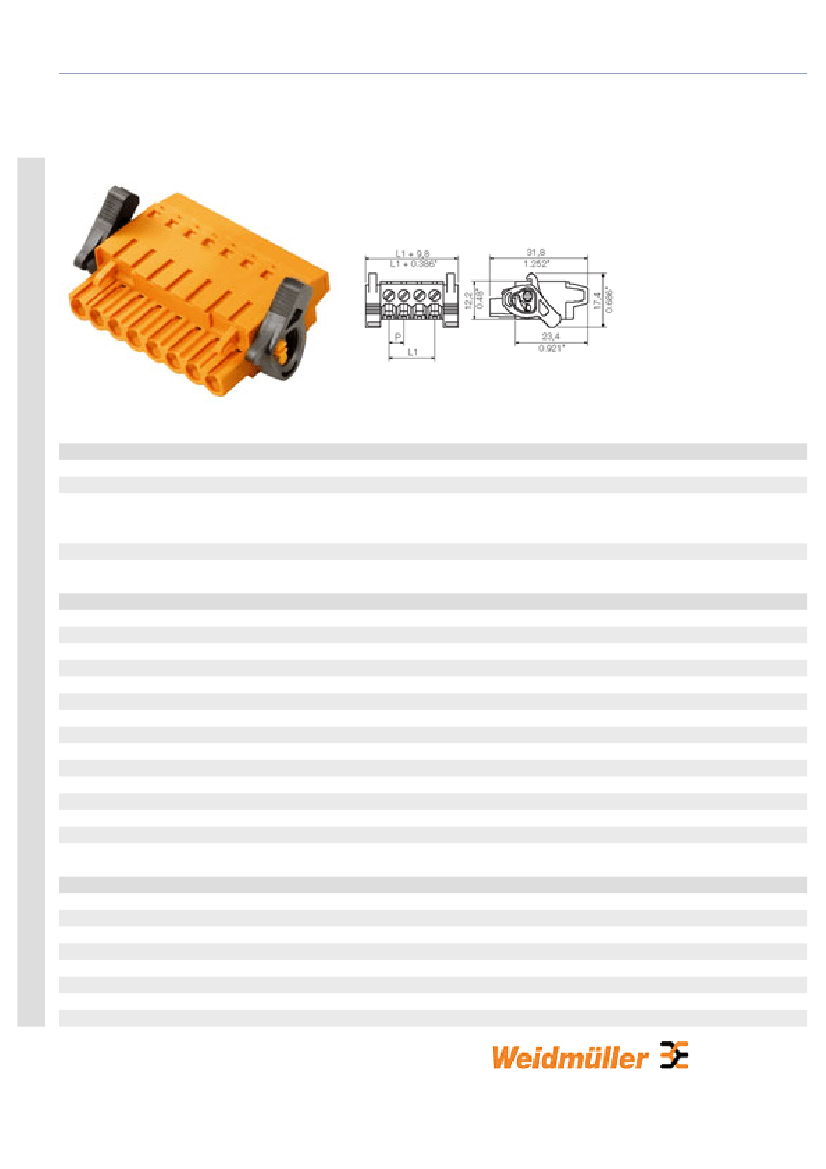

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08LR
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1890410000
BLT 5.08/21LR SN OR
PCB plug-in connector, Female connectors, TOP
connection, Clamping range, max.: 2.5 mm²,
Pitch: 5.08 mm, No. of poles: 21, 180°, Box
4032248498895
20 pc(s).
TOP connection
180°
5.08 mm
0.2 inch
21
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
13 mm
101.6 mm
4 inch
Safe from finger touch
PBT
orange
Similar to RAL 2000
IIIa
V-0
>= 200
CuSn
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08LR
Material data
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
0.13 mm²
2.5 mm²
28
14
0.2 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
2.4 mm x 1.5 mm ; 2.4 mm
17 A
14 A
15 A
11.5 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 100 A
300 V
10 A
26
14
300 V
10 A
26
14
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08LR
Approvals
Approvals institutes
Classifications
ETIM 3.0
eClass 5.1
EC001284
27-26-07-04
Similar products
Order No.
1890220000
1894130000
1890230000
1894140000
1890240000
1894150000
1890250000
1894160000
1890260000
1894170000
Part designation
BLT 5.08/02LR SN OR
BLT 5.08/02/LR SN SW
BLT 5.08/03LR SN OR
BLT 5.08/03/LR SN SW
BLT 5.08/04LR SN OR
BLT 5.08/04/LR SN SW
BLT 5.08/05LR SN OR
BLT 5.08/05/LR SN SW
BLT 5.08/06LR SN OR
BLT 5.08/06/LR SN SW
Version
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6,
180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08LR
1890270000
1894180000
1890280000
1894190000
1890290000
1894200000
1890300000
1894210000
1890310000
1894220000
1890320000
1894230000
1890330000
1894240000
1890340000
1894250000
1890350000
BLT 5.08/07LR SN OR
BLT 5.08/07/LR SN SW
BLT 5.08/08LR SN OR
BLT 5.08/08/LR SN SW
BLT 5.08/09LR SN OR
BLT 5.08/09/LR SN SW
BLT 5.08/10LR SN OR
BLT 5.08/10/LR SN SW
BLT 5.08/11LR SN OR
BLT 5.08/11/LR SN SW
BLT 5.08/12LR SN OR
BLT 5.08/12/LR SN SW
BLT 5.08/13LR SN OR
BLT 5.08/13/LR SN SW
BLT 5.08/14LR SN OR
BLT 5.08/14/LR SN SW
BLT 5.08/15LR SN OR
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 14,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, TOP connection, pitch 5.00/5.08 | BLT 5.08 | BLT 5.08LR
1894260000
1890360000
1894270000
1890370000
1894280000
1890380000
1894290000
1890390000
1894310000
1890400000
1894330000
1894340000
1890420000
1894350000
1890430000
1894360000
1890440000
BLT 5.08/15/LR SN SW
BLT 5.08/16LR SN OR
BLT 5.08/16/LR SN SW
BLT 5.08/17LR SN OR
BLT 5.08/17/LR SN SW
BLT 5.08/18LR SN OR
BLT 5.08/18/LR SN SW
BLT 5.08/19LR SN OR
BLT 5.08/19/LR SN SW
BLT 5.08/20LR SN OR
BLT 5.08/20/LR SN SW
BLT 5.08/21/LR SN SW
BLT 5.08/22LR SN OR
BLT 5.08/22/LR SN SW
BLT 5.08/23LR SN OR
BLT 5.08/23/LR SN SW
BLT 5.08/24LR SN OR
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 23,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 23,
180°, Box
PCB plug-in connector, Female connectors, TOP connection,
Clamping range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 24,
180°, Box
-5-
