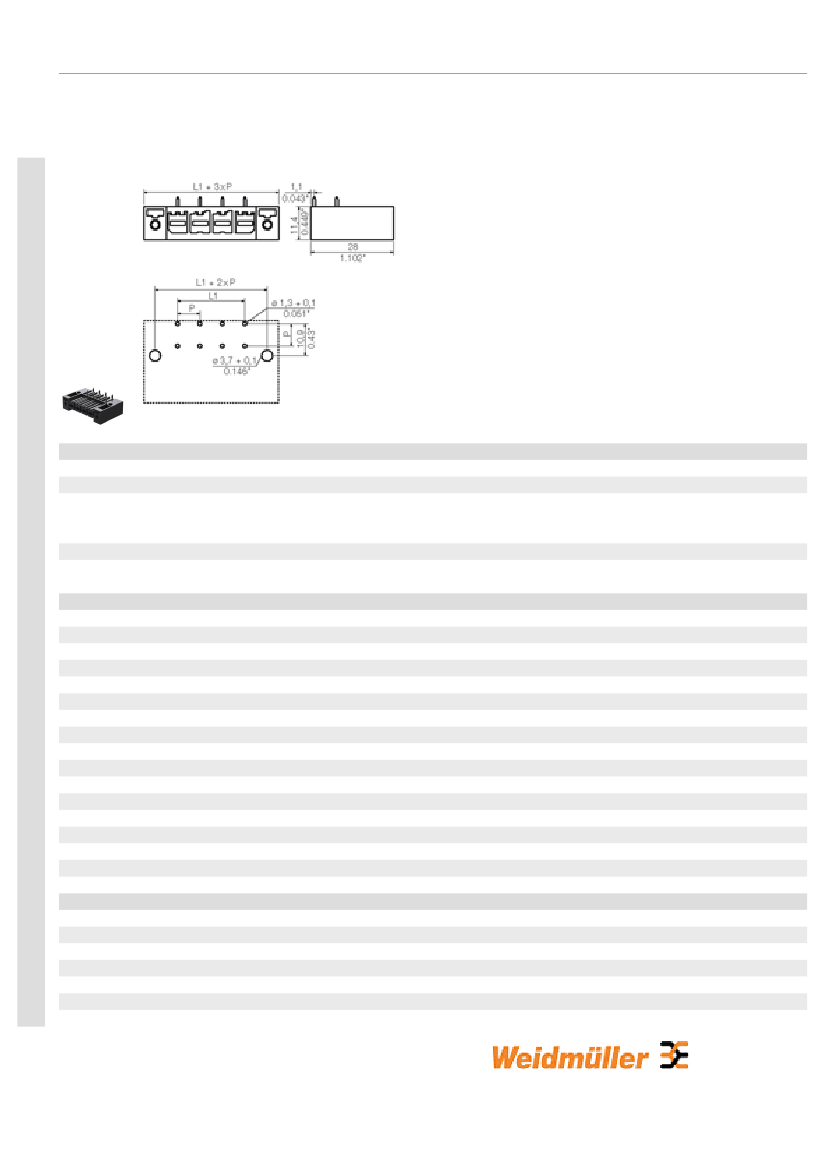

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Female
connectors, solder connection, pitch 7.62 | BVL 7.62HP 270 | BVL 7.62HP 270SFI SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1929600000
BVL 7.62HP/10/270SFI SW
PCB plug-in connector, Female connectors,
Soldered connection, Pitch: 7.62 mm, No. of
poles: 10, 270°, Box
4032248579044
50 pc(s).
Soldered connection
270°
7.62 mm
0.3 inch
10
3.5 mm
Yes
1
2
1.3 mm
+ 0.1 mm
68.58 mm
2.7 inch
1,000 MΩ
IP 20
Safe from finger touch, plugged
PA GF
black
Similar to RAL 9011
I
V-0
>= 475
Copper alloy
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Female
connectors, solder connection, pitch 7.62 | BVL 7.62HP 270 | BVL 7.62HP 270SFI SN
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group C)
Rated current (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
tinned
-25 °C
130 °C
-25 °C
55 °C
80 %
41 A
41 A
41 A
41 A
630 V
6 kV
630 V
6 kV
1,000 V
6 kV
3 x 1s with 420 A
300 V
35 A
600 V
5A
300 V
35 A
600 V
5A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Female
connectors, solder connection, pitch 7.62 | BVL 7.62HP 270 | BVL 7.62HP 270SFI SN
Approvals
Approvals institutes
Classifications
eClass 5.1
27-26-07-04
Similar products
Order No.
1929520000
1929530000
1929540000
1929550000
1929560000
1929570000
1929580000
1929590000
1929610000
1929620000
Part designation
BVL 7.62HP/02/270SFI SW
BVL 7.62HP/03/270SFI SW
BVL 7.62HP/04/270SFI SW
BVL 7.62HP/05/270SFI SW
BVL 7.62HP/06/270SFI SW
BVL 7.62HP/07/270SFI SW
BVL 7.62HP/08/270SFI SW
BVL 7.62HP/09/270SFI SW
BVL 7.62HP/11/270SFI SW
BVL 7.62HP/12/270SFI SW
Version
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 2, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 3, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 4, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 5, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 6, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 7, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 8, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 9, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 11, 270°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 7.62 mm, No. of poles: 12, 270°, Box
-3-
