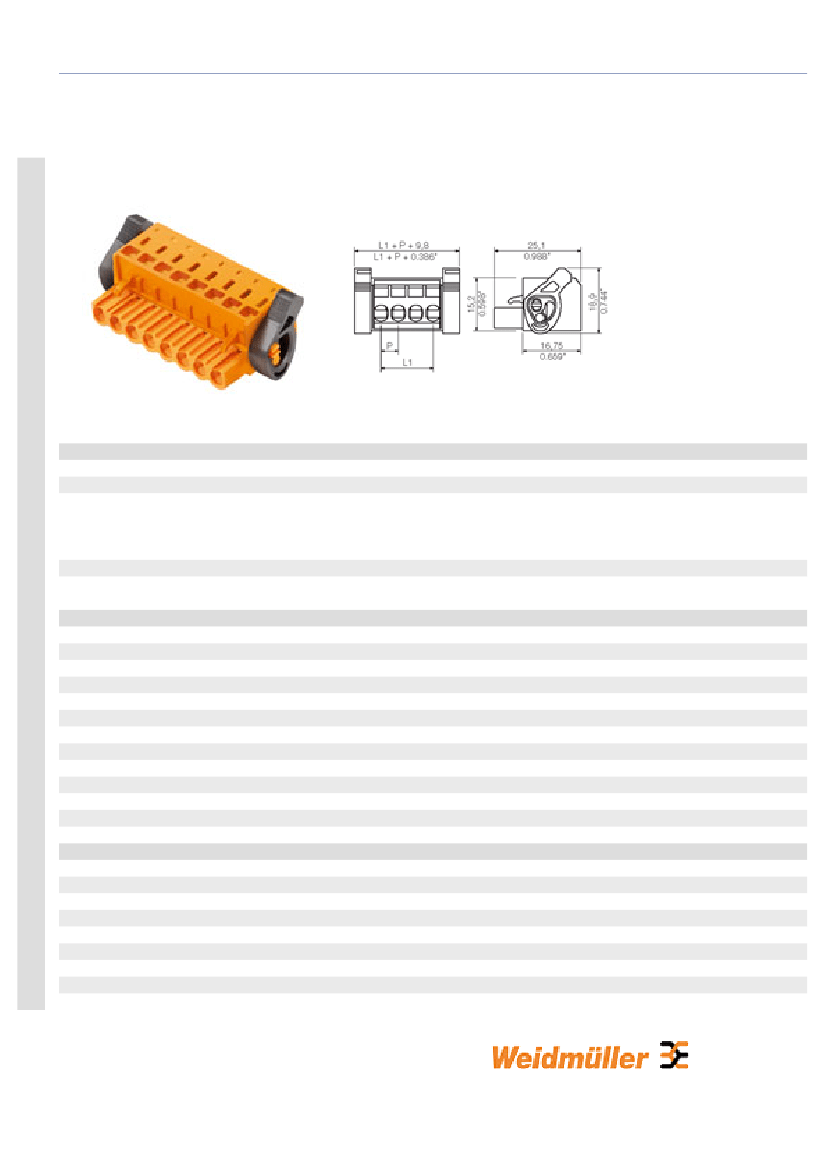

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension spring connection, pitch 5.00/5.08 | BLZF 5.08/180 | BLZF 5.08/180LH
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1895910000
BLZF 5.08/21/180 LH SN OR
PCB plug-in connector, Female connectors,
Tension clamp connection, Clamping range, max.:
3.31 mm², Pitch: 5.08 mm, No. of poles: 21, 180°,
Box
4032248510733
20 pc(s).
Tension clamp connection
180°
5.08 mm
0.2 inch
21
1
0.6 x 3.5
DIN 5264-A
10 mm
101.6 mm
4 inch
Safe from finger touch
PBT
orange
Similar to RAL 2000
IIIa
V-0
>= 200
Copper alloy
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension spring connection, pitch 5.00/5.08 | BLZF 5.08/180 | BLZF 5.08/180LH
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Classifications
ETIM 3.0
eClass 5.1
0.13 mm²
3.31 mm²
26
12
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
2.8 mm x 2.0 mm;
17 A
12.5 A
14.5 A
11 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
300 V
10 A
26
12
300 V
10 A
26
12
EC001284
27-26-07-04
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension spring connection, pitch 5.00/5.08 | BLZF 5.08/180 | BLZF 5.08/180LH
Similar products
Order No.
1895720000
1893160000
1895730000
1893170000
1895740000
1893180000
1895750000
1893190000
1895760000
1893200000
1895770000
1893210000
1895780000
1893220000
1895790000
1893230000
Part designation
BLZF 5.08/02/180 LH SN OR
BLZF 5.08/02/180 LH SW
BLZF 5.08/03/180 LH SN OR
BLZF 5.08/03/180 LH SW
BLZF 5.08/04/180 LH SN OR
BLZF 5.08/04/180 LH SW
BLZF 5.08/05/180 LH SN OR
BLZF 5.08/05/180 LH SW
BLZF 5.08/06/180 LH SN OR
BLZF 5.08/06/180 LH SW
BLZF 5.08/07/180 LH SN OR
BLZF 5.08/07/180 LH SW
BLZF 5.08/08/180 LH SN OR
BLZF 5.08/08/180 LH SW
BLZF 5.08/09/180 LH SN OR
BLZF 5.08/09/180 LH SW
Version
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 2, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 2, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 3, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 3, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 5, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 5, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 7, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 7, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 8, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 8, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 9, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension spring connection, pitch 5.00/5.08 | BLZF 5.08/180 | BLZF 5.08/180LH
1895800000
1893240000
1895810000
1893250000
1895820000
1893260000
1895830000
1893270000
1895840000
1893280000
1895850000
1893290000
1895860000
1893300000
1895870000
1893310000
1895880000
BLZF 5.08/10/180 LH SN OR
BLZF 5.08/10/180 LH SW
BLZF 5.08/11/180 LH SN OR
BLZF 5.08/11/180 LH SW
BLZF 5.08/12/180 LH SN OR
BLZF 5.08/12/180 LH SW
BLZF 5.08/13/180 LH SN OR
BLZF 5.08/13/180 LH SW
BLZF 5.08/14/180 LH SN OR
BLZF 5.08/14/180 LH SW
BLZF 5.08/15/180 LH SN OR
BLZF 5.08/15/180 LH SW
BLZF 5.08/16/180 LH SN OR
BLZF 5.08/16/180 LH SW
BLZF 5.08/17/180 LH SN OR
BLZF 5.08/17/180 LH SW
BLZF 5.08/18/180 LH SN OR
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 10, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 10, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 11, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 11, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 12, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 12, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 13, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 13, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 14, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 14, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 15, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 15, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 16, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 16, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 17, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 17, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 18, 180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension spring connection, pitch 5.00/5.08 | BLZF 5.08/180 | BLZF 5.08/180LH
1893320000
1895890000
1893330000
1895900000
1893340000
1893350000
1895920000
1893360000
1895930000
1893370000
1895940000
1893380000
BLZF 5.08/18/180 LH SW
BLZF 5.08/19/180 LH SN OR
BLZF 5.08/19/180 LH SW
BLZF 5.08/20/180 LH SN OR
BLZF 5.08/20/180 LH SW
BLZF 5.08/21/180 LH SW
BLZF 5.08/22/180 LH SN OR
BLZF 5.08/22/180 LH SW
BLZF 5.08/23/180 LH SN OR
BLZF 5.08/23/180 LH SW
BLZF 5.08/24/180 LH SN OR
BLZF 5.08/24/180 LH SW
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 18, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 19, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 19, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 20, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 20, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 21, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 22, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 22, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 23, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 23, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 24, 180°, Box
PCB plug-in connector, Female connectors, Tension clamp
connection, Clamping range, max.: 3.31 mm², Pitch: 5.08 mm, No.
of poles: 24, 180°, Box
-5-
Embedded System
京公网安备 11010802033920号
EEWORLD
