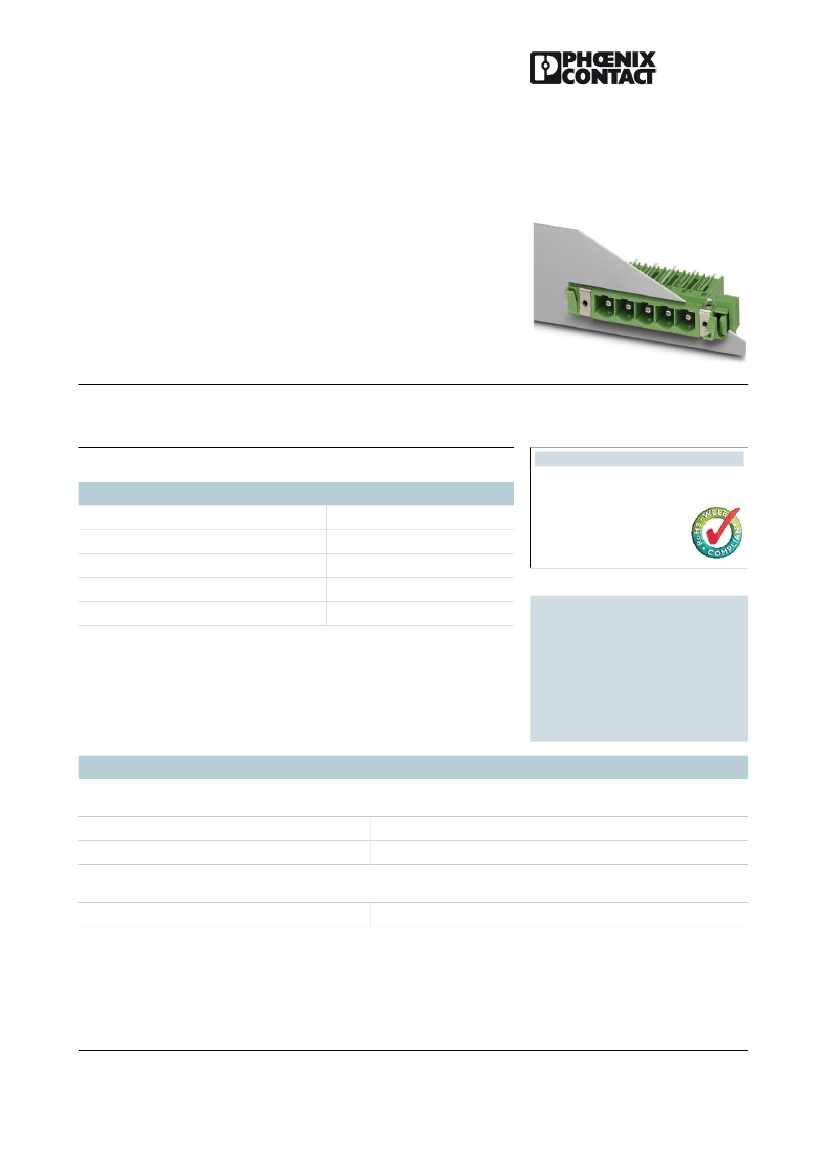

DFK-PCV 6-16/ 4-GF-10,16
Order No.: 1702277
The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1702277
Header, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 10.16
mm, Number of positions: 4, Color: green, Assembly: Soldering
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4046356031103
10 pcs.
85366990
0.02834 KG
Page 431 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
11/25/2004
Technical data
Dimensions / positions
Pitch
Number of positions
Technical data
Connection in acc. with standard
EN-VDE
10.16 mm
4
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 4
Jul 6, 2009
DFK-PCV 6-16/ 4-GF-10,16
Order No.: 1702277
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1702277
Nominal current I
N
Nominal voltage U
N
Maximum load current
Inflammability class acc. to UL 94

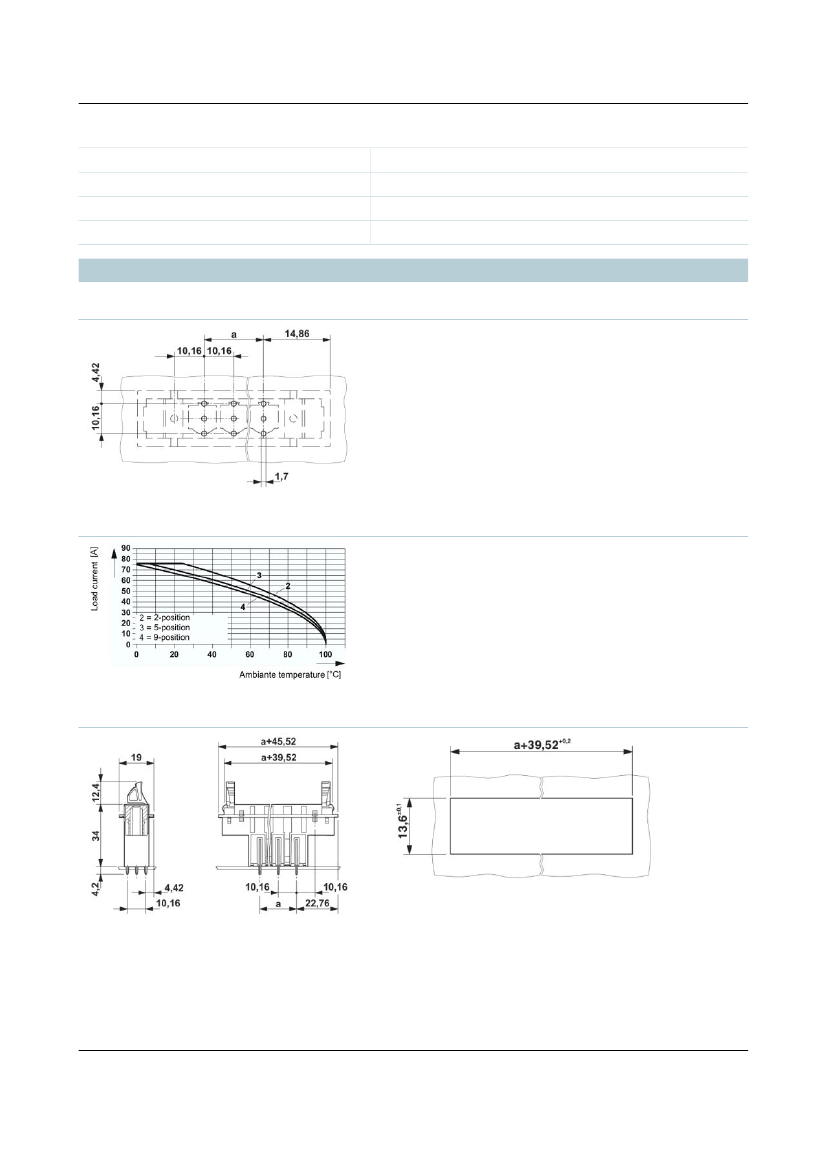

Drawings
Drilling diagram
76 A
1000 V
76 A
V0
Diagram
The illustration shows the derating curve for plugs DFK-PC(V)
6-16/...-G(F)(U)-(SH)-10,16 in combination with header PC 16/....-
ST(F)-(SH)-10,16.
Dimensioned drawing
Sheet metal cutout for snap-on.
