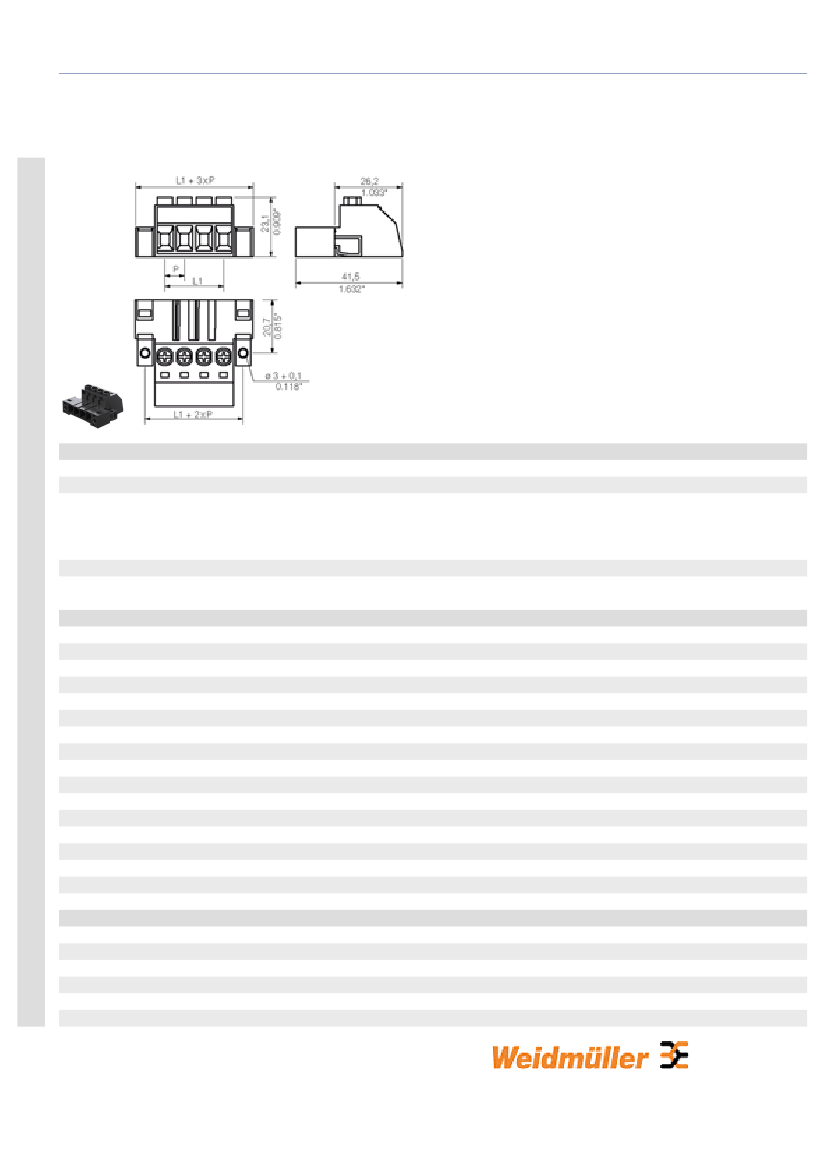

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Male
connectors, clamping yoke connection, pitch 7.62 | SVZ 7.62HP 180 | SVZ 7.62HP 180SF SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
1932050000
SVZ 7.62HP/11SF SN SW
PCB plug-in connector, Male connectors,
Clamping yoke connection, Clamping range, max.:
6 mm², Pitch: 7.62 mm, No. of poles: 11, 180°,
Box
4032248582167
50 pc(s).
Clamping yoke connection
180°
7.62 mm
0.3 inch
11
1
0.8 x 4.0
DIN 5264-A
0.5 Nm
0.6 Nm
M3
12 mm
76.2 mm
3 inch
IP20 plugged
Safe from finger touch
PA GF
black
Similar to RAL 9011
I
V-0
>= 600
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Male
connectors, clamping yoke connection, pitch 7.62 | SVZ 7.62HP 180 | SVZ 7.62HP 180SF SN
Material data
Contact base material
Contact surface
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group C)
Rated current (Use group C)
AWG conductor, min.
AWG conductor, max.
Copper alloy
tinned
0.2 mm²
6 mm²
22
10
0.2 mm²
6 mm²
0.5 mm²
6 mm²
0.25 mm²
6 mm²
0.25 mm²
6 mm²
2.8 mm x 2.0 mm; 2.4 mm
41 A
41 A
41 A
41 A
1,000 V
1,000 V
800 V
6 kV
8 kV
8 kV
600 V
35 A
24
10
600 V
35 A
24
10
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Male
connectors, clamping yoke connection, pitch 7.62 | SVZ 7.62HP 180 | SVZ 7.62HP 180SF SN
Approvals
Approvals institutes
Classifications
eClass 5.1
27-26-07-04
Similar products
Order No.
1931960000
1931970000
1931980000
1931990000
1932000000
1932010000
1932020000
1932030000
1932040000
Part designation
SVZ 7.62HP/02SF SN SW
SVZ 7.62HP/03SF SN SW
SVZ 7.62HP/04SF SN SW
SVZ 7.62HP/05SF SN SW
SVZ 7.62HP/06SF SN SW
SVZ 7.62HP/07SF SN SW
SVZ 7.62HP/08SF SN SW
SVZ 7.62HP/09SF SN SW
SVZ 7.62HP/10SF SN SW
Version
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 10, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.62 mm (0.300 inch) - SV/BV | Male
connectors, clamping yoke connection, pitch 7.62 | SVZ 7.62HP 180 | SVZ 7.62HP 180SF SN
1932060000
SVZ 7.62HP/12SF SN SW
PCB plug-in connector, Male connectors, Clamping yoke
connection, Clamping range, max.: 6 mm², Pitch: 7.62 mm, No. of
poles: 12, 180°, Box
-4-
