B061-1812-258-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B061-1812-258-Z

B061-1812-258-Z: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-1812-258-Z Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug

B061-1812-258-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.433 inch
body length	0.9 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	DUAL PRONG
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	B061
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.48 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

HOW TO ORDER:

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

04 thru 64

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

1 - ONE

HOUSING DIMESIONS:

Height - 11.00mm

Width - 5.00mm

Contact Tail - 12.20mm

CONTACT STYLE:

2 - TUNING FORK

Date

08/25/03

12/1/06

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

MATERIAL:

INSULATOR: High Temperature Nylon 6T (UL94V-0)

CONTACT: COPPER ALLOY

Rev

Issued

A Revised for RoHS Compliance

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved

A.M.

S.M.

B.S

S.M.

SMP TECHNOLOGY, INC.

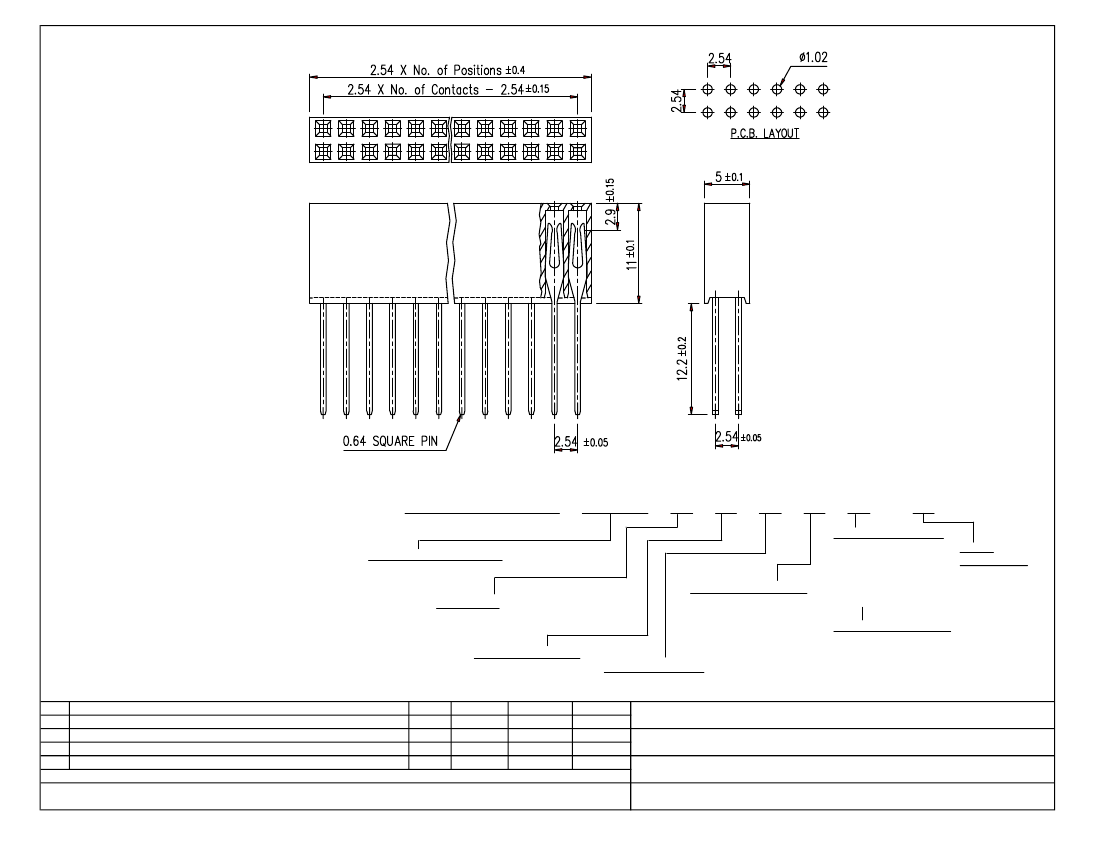

Receptacle Assembly, 2.54mm Pitch, Top Entry, Double Row, Straight

Tuning Fork Contact, 11.00mm Height, 5.00mm Width, Wire Wrap Tail, Thru Hole

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

SERIES: B061-XX12-25X-Z

Pg: 1
