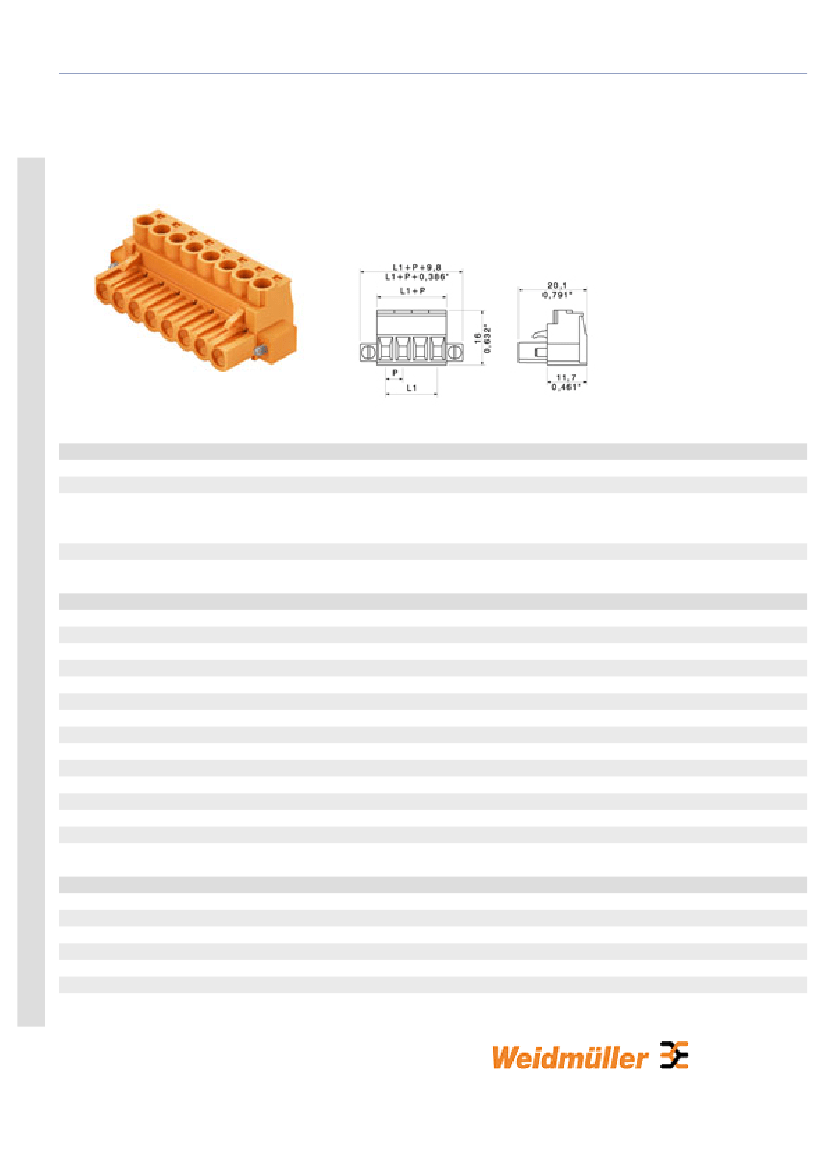

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00/5.08/180 | BLZP 5.08/180F SN
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
1944520000
BLZP 5.08/21F SN SW
, Female connectors, Clamping yoke connection,
Clamping range, max.: 4 mm², Pitch: 5.08 mm,
No. of poles: 21, 180°, Box
4032248619092
18 pc(s).
Clamping yoke connection
180°
5.08 mm
0.2 inch
21
1
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
7 mm
101.6 mm
4 inch
Safe from finger touch
PBT
black
IIIa
V-0
>= 200
Copper alloy
tinned
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00/5.08/180 | BLZP 5.08/180F SN
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group C)
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
0.13 mm²
4 mm²
26
12
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
2.8 mm x 2.4 mm
19 A
15.5 A
16 A
13 A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
50 V
300 V
10 A
26
12
50 V
300 V
10 A
26
12
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00/5.08/180 | BLZP 5.08/180F SN
Approvals
Approvals institutes
Similar products
Order No.
1944090000
1944330000
1944100000
1944340000
1944110000
1944350000
1944120000
1944360000
1944130000
1944370000
1944140000
1944380000
1944150000
1944390000
1944160000
Part designation
BLZP 5.08/02F SN OR
BLZP 5.08/02F SN SW
BLZP 5.08/03F SN OR
BLZP 5.08/03F SN SW
BLZP 5.08/04F SN OR
BLZP 5.08/04F SN SW
BLZP 5.08/05F SN OR
BLZP 5.08/05F SN SW
BLZP 5.08/06F SN OR
BLZP 5.08/06F SN SW
BLZP 5.08/07F SN OR
BLZP 5.08/07F SN SW
BLZP 5.08/08F SN OR
BLZP 5.08/08F SN SW
BLZP 5.08/09F SN OR
Version
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 2, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 2, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 3, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 3, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 4, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 4, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 5, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 5, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 6, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 6, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 7, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 7, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 8, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 8, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 9, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00/5.08/180 | BLZP 5.08/180F SN
1944400000
1944170000
1944410000
1944180000
1944420000
1944190000
1944430000
1944200000
1944440000
1944210000
1944450000
1944220000
1944460000
1944230000
1944470000
1944240000
1944480000
1944250000
1944490000
1944260000
1944500000
1944270000
1944510000
1944280000
1944290000
1944530000
BLZP 5.08/09F SN SW
BLZP 5.08/10F SN OR
BLZP 5.08/10F SN SW
BLZP 5.08/11F SN OR
BLZP 5.08/11F SN SW
BLZP 5.08/12F SN OR
BLZP 5.08/12F SN SW
BLZP 5.08/13F SN OR
BLZP 5.08/13F SN SW
BLZP 5.08/14F SN OR
BLZP 5.08/14F SN SW
BLZP 5.08/15F SN OR
BLZP 5.08/15F SN SW
BLZP 5.08/16F SN OR
BLZP 5.08/16F SN SW
BLZP 5.08/17F SN OR
BLZP 5.08/17F SN SW
BLZP 5.08/18F SN OR
BLZP 5.08/18F SN SW
BLZP 5.08/19F SN OR
BLZP 5.08/19F SN SW
BLZP 5.08/20F SN OR
BLZP 5.08/20F SN SW
BLZP 5.08/21F SN OR
BLZP 5.08/22F SN OR
BLZP 5.08/22F SN SW
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 9, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 10, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 10, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 11, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 11, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 12, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 12, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 13, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 13, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 14, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 14, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 15, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 15, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 16, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 16, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 17, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 17, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 18, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 18, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 19, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 19, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 20, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 20, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 21, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 22, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 22, 180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Socket connectors, tension clamp connection, pitch 5.00/5.08 | BLZP 5.00/5.08/180 | BLZP 5.08/180F SN
1944300000
1944540000
1944310000
1944550000
BLZP 5.08/23F SN OR
BLZP 5.08/23F SN SW
BLZP 5.08/24F SN OR
BLZP 5.08/24F SN SW
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 23, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 23, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 24, 180°, Box
, Female connectors, Clamping yoke connection, Clamping range,
max.: 4 mm², Pitch: 5.08 mm, No. of poles: 24, 180°, Box
-5-
