LED Traffic Signal
433 Series
12
to 24
Vdc

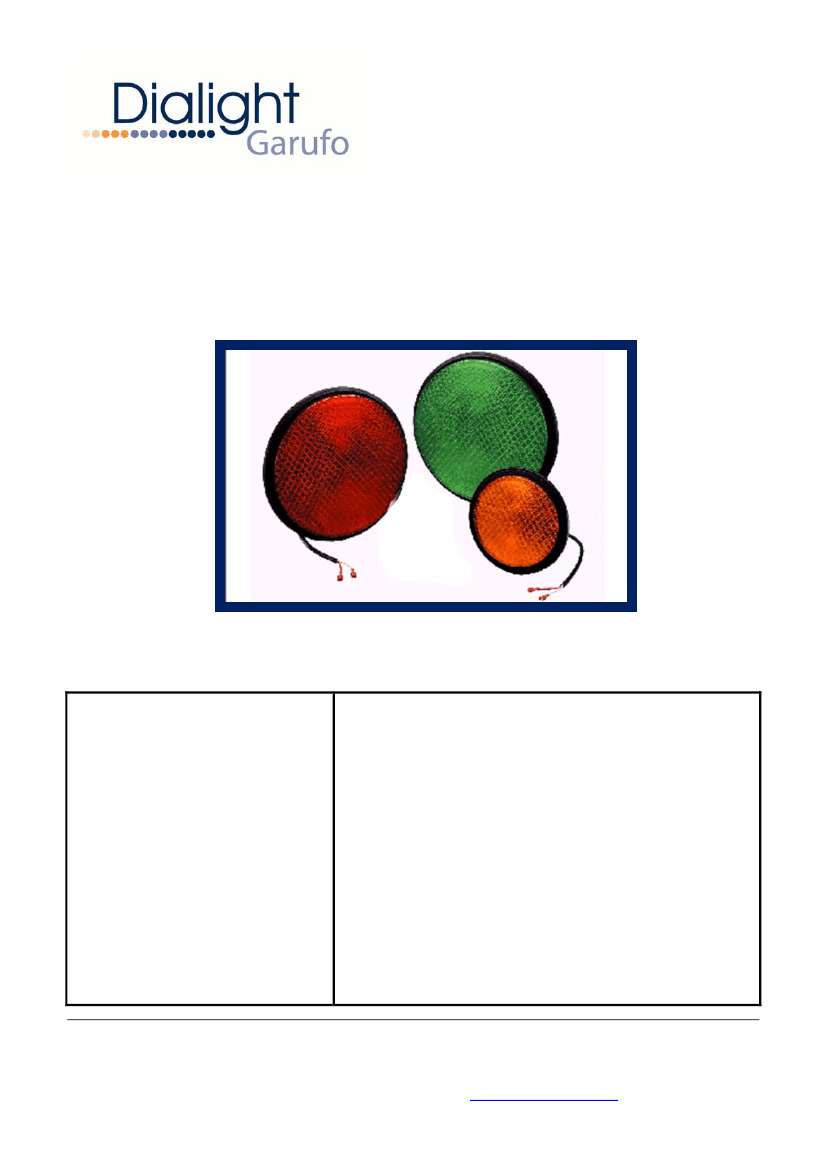

Features:
•
•
•
•
Clustered LED’s as Light
Source
Sealed for Life Unit
Durable Materials
Rim Dimensions Matching Existing
Housings
Benefits:
•
•
•
•
Low Energy Consumption
Uniform Luminance of the Front
Lens
Long and Reliable Service Life
Easy Installation in the Door of a
Signal Housing
A fully contained low wattage LED Traffic Signal
Module meeting European specification EN12368 class
A2/1 type W. The module is primarily intended for use as a
retrofit unit for traffic signals that are currently equipped with
incandescent, low voltage Krypton or Halogen light sources.
The LED Traffic Signal Module comprises a high Flux LED
light source, Fresnel lens, and tinted or non tinted front lens.
The Fresnel lens is sealed to the housing to create a dust
and waterproof system. Key features of the signal are very
low power consumption and a smooth, uniform
appearance when illuminated. The optics and drive circuits
are designed so that the failure of a single LED will neither
create a dark spot, nor reduce the signal intensity.
- 1
of
3 -
Dialight Garufo
Gewerbepark Spörerau 25, D-85368 Wang Tel.: +49(0)8709/9249-0 Fax: +49(0)8709/9249-10
Email: sales@dialightgarufo.com Internet:
www.dialightgarufo.com
Subject to change

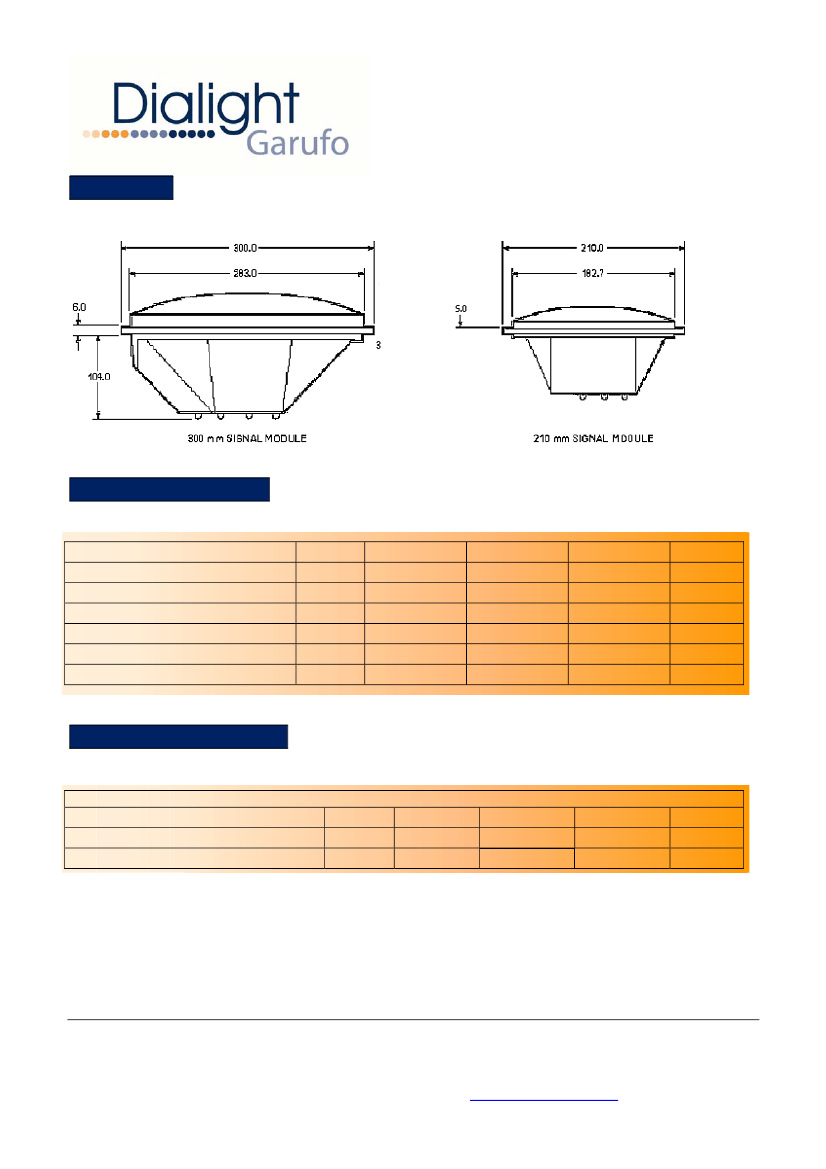

Dimensions:
Optical Characteristics:
at T
A
= 25
o
C
(Typical Values 200 mm Unless Otherwise Stated)
Parameter
Symbol
Red
Amber
Green
Units
Light distribution
Luminous Intensity
Dominant Wavelength
Luminance Uniformity
Phantom Class tinted lens
Phantom Class non tinted lens
I
V
λ
d
A2/1 type W
300
615-631,5
>1:10
3
1
A2/1 type W
300
585-597
>1:10
3
1
A2/1 type W
400
498,5-508
>1:10
5
1
cd
nm
L
min
:L
max
I
s
:I
ph
I
s
:I
ph
Electrical Characteristics:
at T
A
= 25
o
C
(Input
Voltage range 9-30VDC)
Parameter
12-24Vdc
Voltage
Red
Amber
Green
Units
Typical
Power Consumption
Typical Power Consumption
12VDC
24VDC
9
8
9
8
9
8
W
W
- 2
of
3 -
Dialight Garufo
Gewerbepark Spörerau 25, D-85368 Wang Tel.: +49(0)8709/9249-0 Fax: +49(0)8709/9249-10
Email: sales@dialightgarufo.com Internet:
www.dialightgarufo.com
Subject to change
Thermal Characteristics:
(All Part Numbers)
Parameter
Symbol
210 mm
300 mm
Units
Operating Temperature
[1]
Thermal Resistance, Junction to
Ambient
[2]
T
OP
RΘ
J-A
2,5
-40 to +60
2
°C
K/W
Notes:
1.Refers to the ambient temperature range when power is applied to the module.
2.At 60
°C
based on total dissipated system power.
Mechanical Data:
Parameter
210 mm
300 mm
Units
Minimum Weight
Vibrations
Impact Lens
Protection Grade
Relative Humidity
Flammability
Minimum Cable Length Outside of
Housing
Symbols
Packing
1,53
IEC 68-2-34
EN 60598-1 Clause 4.13.4,Class IR3
EN 60529 test 13 and 14,rating IP 65
Up to 95%
V-0 (US requirement)
1
kg
m
6 signals per box
Painted on the Outer Lens
12 signals per box
Part Numbers
143423
143424
143425
143429
143430
143431
143432
200mm
Red
(coloured lens)
Amber (coloured lens)
Green (coloured lens)
Red
(clear lens)
Amber (clear lens)
Green (clear lens)
White (clear lens)
143426
143427
143428
143433
143434
143435
143400
300mm
Red
(coloured lens)
Amber (coloured lens)
Green (coloured lens)
Red
(clear lens)
Amber (clear lens)
Green (clear lens)
White (clear lens)
July 2007
- 3
of
3 -
Dialight Garufo
Gewerbepark Spörerau 25, D-85368 Wang Tel.: +49(0)8709/9249-0 Fax: +49(0)8709/9249-10
Email: sales@dialightgarufo.com Internet:
www.dialightgarufo.com
Subject to change
