108-555-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 108-555-01

108-555-01: DescriptionSingle Color LED Array, Red, Diffused, 5mm, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size40KB，1 Pages; ManufacturerMarl International; Websitehttps://www.leds.co.uk

Download Datasheet Parametric Compare View All

108-555-01 Overview

Single Color LED Array, Red, Diffused, 5mm, 2 PIN

108-555-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	2 PIN
Reach Compliance Code	unknown
Is Samacsys	N
color	RED
color@wavelength	Red
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.002 A
JESD-609 code	e0
Lens type	DIFFUSED
minimum luminous intensity	0.0005 cd
Nominal luminous intensity	0.5 mcd
Installation features	RADIAL MOUNT
Number of functions	4
Number of LEDs in the array	4
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	6.2 mm
method of packing	BULK
peak wavelength	650 nm
shape	ROUND
size	5 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	44 deg
Base Number Matches	1

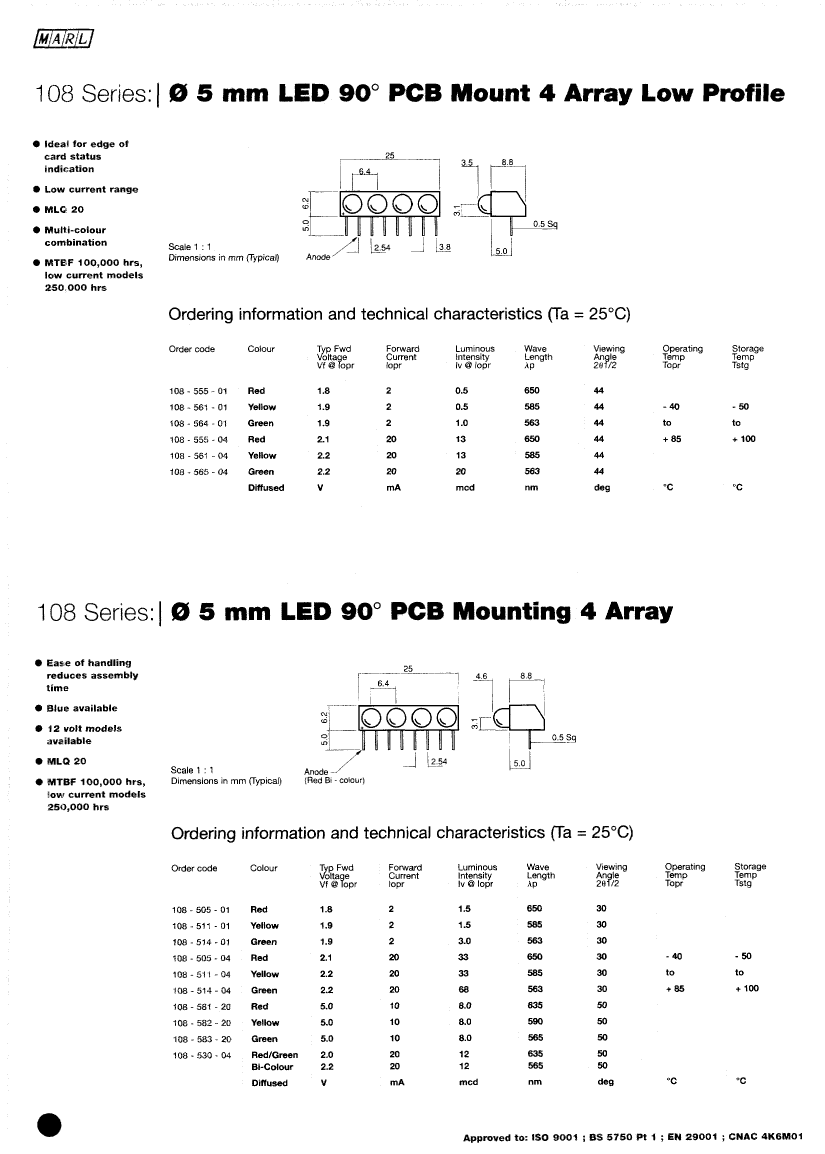

Preview

Download Datasheet

View All

108-555-01 Related Products

	108-555-01	108-561-04	108-555-04	108-561-01	108-564-04	108-564-01
Description	Single Color LED Array, Red, Diffused, 5mm, 2 PIN	Single Color LED Array, Yellow, Diffused, 5mm, 2 PIN	Single Color LED Array, Red, Diffused, 5mm, 2 PIN	Single Color LED Array, Yellow, Diffused, 5mm, 2 PIN	Single Color LED Array, Green, Diffused, 5mm, 2 PIN	Single Color LED Array, Green, Diffused, 5mm, 2 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	2 PIN	2 PIN	2 PIN	2 PIN	2 PIN	2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N
color	RED	YELLOW	RED	YELLOW	GREEN	GREEN
color@wavelength	Red	Yellow	Red	Yellow	Green	Green
Configuration	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS
Maximum forward current	0.002 A	0.02 A	0.02 A	0.002 A	0.02 A	0.002 A
JESD-609 code	e0	e0	e0	e0	e0	e0
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
minimum luminous intensity	0.0005 cd	0.013 cd	0.013 cd	0.0005 cd	0.02 cd	0.001 cd
Nominal luminous intensity	0.5 mcd	13 mcd	13 mcd	0.5 mcd	20 mcd	1 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	4	4	4	4	4	4
Number of LEDs in the array	4	4	4	4	4	4
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm	6.2 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	650 nm	585 nm	650 nm	585 nm	563 nm	563 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	44 deg	44 deg	44 deg	44 deg	44 deg	44 deg
Base Number Matches	1	1	1	1	1	1
