6120.3300.15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6120.3300.15

6120.3300.15: DescriptionMains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size206KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric Compare View All

6120.3300.15 Overview

Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

6120.3300.15 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: IEC/EN 60320-1/C16A, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Manufacturer's serial number	6120
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/PG07

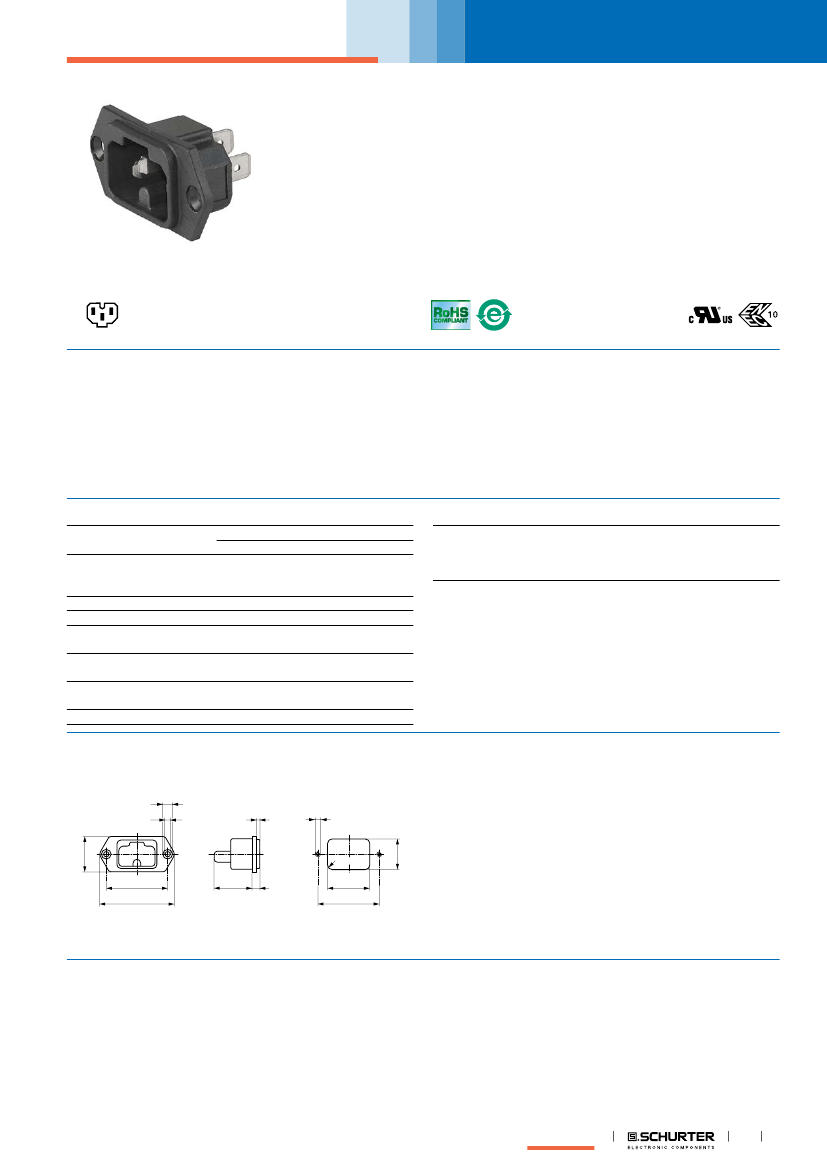

IEC Appliance Inlet C16A, Screw-on Mounting, Front or Rear Side, Solder or Quick-connect Terminal

6120-3

C16 A

155° C

Description

- Panel Mount:

Screw-on mounting from front or rear-side

- 1 Function:

- Appliance Inlet, Pin temperature 155 °C, Protection class I

- Solder terminals or quick connect terminals

Other versions on request

- Quick connect terminals 4.8 x 0.8 mm

- Types for enhanced glow wire test requirements acc. IEC 60695-2-

12 and -13 for the use in unattended household equipment acc. IEC

60335-1

Weblinks

Approvals

- VDE Certificate Number: 40015595

- UL File Number: E96454

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,

e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-

Drawings, Accessories, Detailed request for product

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 2 kVAC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 155 °C

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Solder terminals or quick connect ter-

minals

Screw: max 8 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

Appliance Inlet

C16A acc. to IEC 60320,

UL 498, CSA C22.2 no. 42 (for very hot

conditions) pin-temperature 155 °C,

10 A, Protection Class I

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

Dimensions

6120-3

6.3x90˚

3.5

2.5

max.R3

min.27.5

E: Solder terminals: 22.5 mm

E: Quick connect terminals: 25.5 mm

min.20

Connectors

6120.3300.15 Related Products

	6120.3300.15	6120.3100	6120.3100.15	6120.3200.15	6120.3200
Description	Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT	Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, Socket, ROHS COMPLIANT	Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT	Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT	Mains Power Connector, 10/15A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: IEC/EN 60320-1/C16A, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT	STANDARDS: IEC/EN 60320-1/C16A, UL 94V-0; UL 498, CSA C22.2, VDE	STANDARDS: IEC/EN 60320-1/C16A, UL 94V-0; UL 498, CSA C22.2, VDE	STANDARDS: IEC/EN 60320-1/C16A, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT	STANDARDS: IEC/EN 60320-1/C16A, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO
Power Connector Ratings	10/15A, 250VAC	10/15A, 250VAC	10/15A, 250VAC	10/15A, 250VAC	10/15A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	3	3	3
Manufacturer's serial number	6120	-	6120	6120	6120
Base Number Matches	1	1	1	-	-
Maker	-	SCHURTER	SCHURTER	SCHURTER	SCHURTER
