EURO
QUARTZ
14 pin Dual-in-Line
FEATURES
Sine Wave output in industry-standard 14 DIL package
High purity and low total harmonic distortion
Ideal for audio modulation applications
Supply Voltage 3.3V or 5.0V
DESCRIPTION
HS14 sine wave clock oscillators provide a true sine wave output.
Packaged in the industry-standard, 14 pin DIL outline package, the
oscillator is capable of being produced with close tolerances and
exhibits low current consumption.
HS14 Sine Wave Oscillators
10.0MHz to 800.0MHz

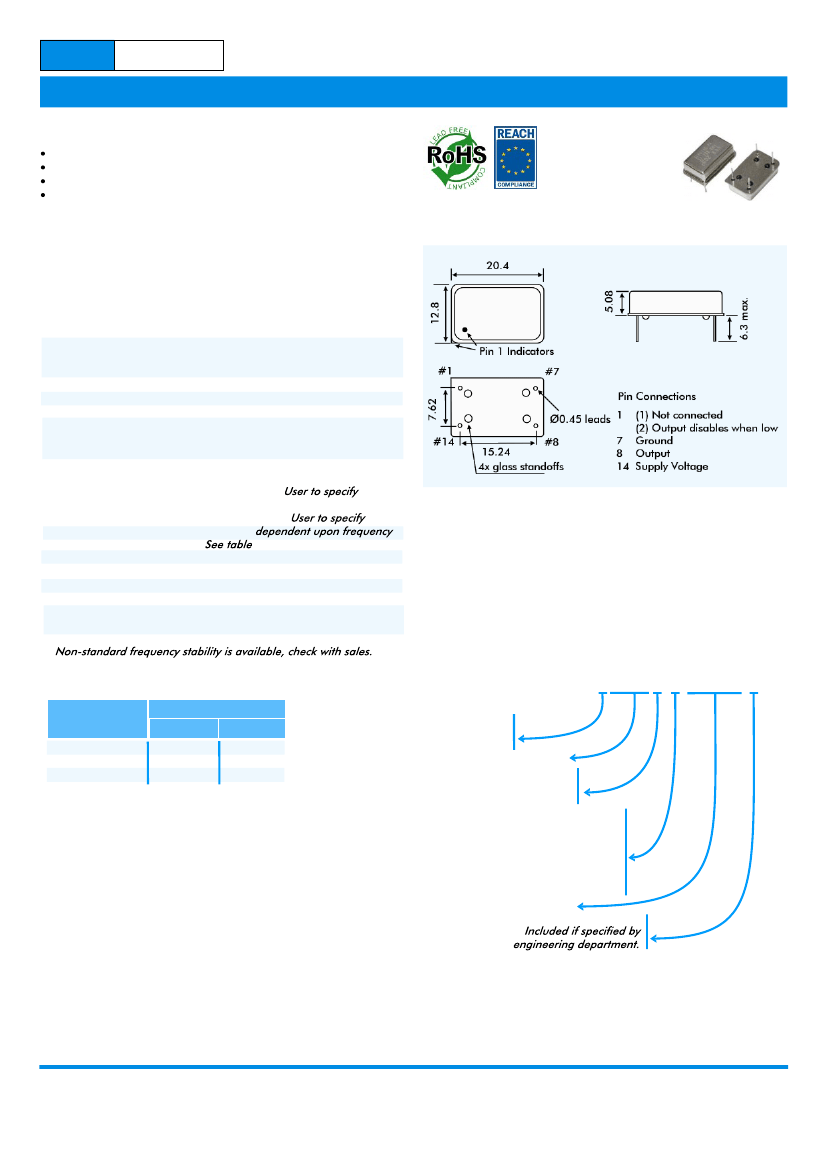

OUTLINE & DIMENSIONS
SPECIFICATION
Frequency Range
HS14 at 3.3 Volts:
HS14 at 5.0 Volts:
Load:
Input Voltage:
Output Wave Form:
Frequency Stability
0°~70°C:
-40° ~+85°C:
Output Level
At +3.3V:
At +5.0V:
Harmonics:
Current Consumption:
Start-up Time:
Storage Temperature:
Sub-Harmonics:
Ageing:
Environmental:
10.0MHz to 800.0MHz
10MHz to 156.0 MHz
50Ω
(internally AC coupled)
+3.3V±5% or +5.0VDC ±10%
True sine wave
±25ppm, ±50ppm or ±100ppm*
±25ppm, ±50ppm or ±100ppm*
+3dBm standard into 50Ω.
Max.
power +7dBm (
)
+5dBm standard into 50Ω.
Max.
power +13dBm (
)
<-30dBc (
6ms typical
-50° to +100°C
None
±5ppm/year maximum
RoHS Compliant standard. (Non-
compliant versions are available.
)
*
PART NUMBERING
CURRENT CONSUMPTION
Frequency
10MHz
100MHz
150MHz
Supply Voltage
+3.3V
9mA
18mA
19mA
+5.0V
18mA
34mA
36mA
Example:
3HS14G-B-25.000-X
Supply Voltage
3 = 3.3 Volts
5 = 5.0 Volts
Series Designation HS14
RoHS
G = Compliant
Blank = Non-compliant
Stability
A = ±25ppm 0° to +70°C
B = ±50ppm 0° to +70°C
C = ±100ppm 0° to +70°C
D = ±25ppm -40° to +85°C
E = ±50ppm -40° to +85°C
F = ±100ppm -40° to +85°C
Frequency (MHz)
Customer-Specific Code
(
)
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
