TT10531M/B2AJC datasheet, PDF - EEWORLD Datasheet

TT10531M/B2AJC: DescriptionD Flip-Flop, 2-Func, Master-slave Triggered, ECL, CQCC20; Categorylogic logic; File Size749KB，12 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric Compare View All

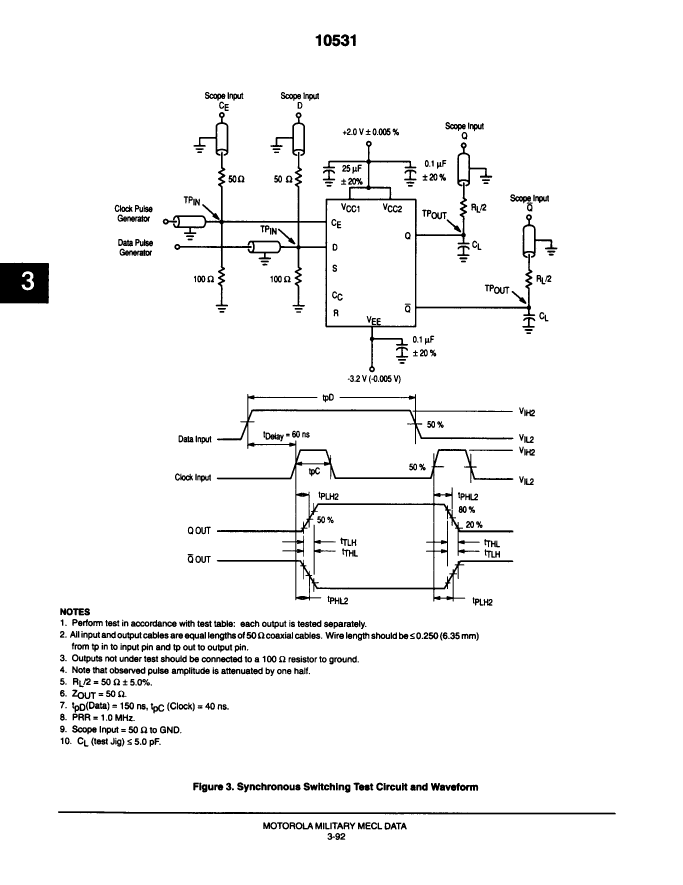

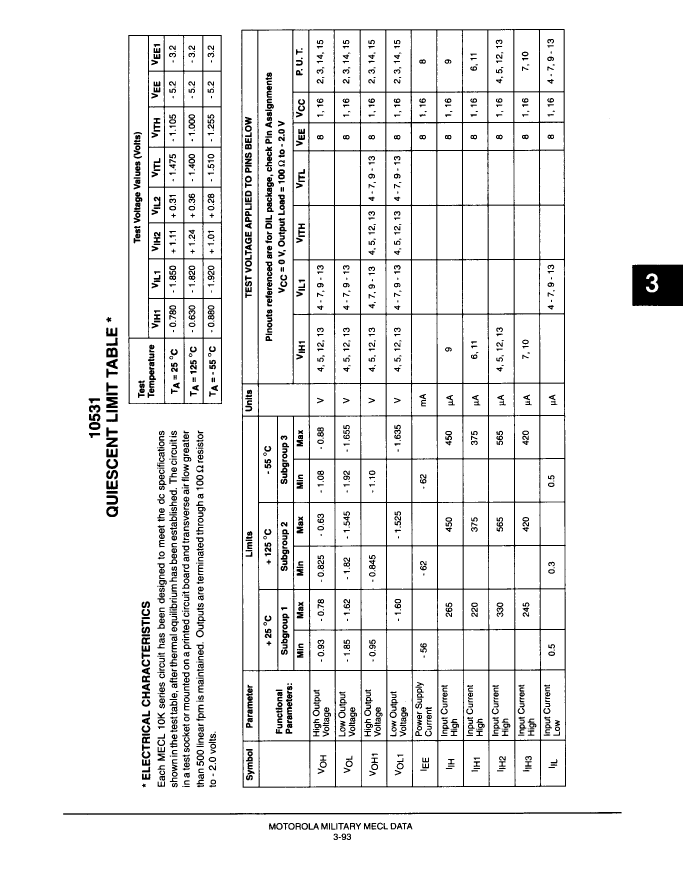

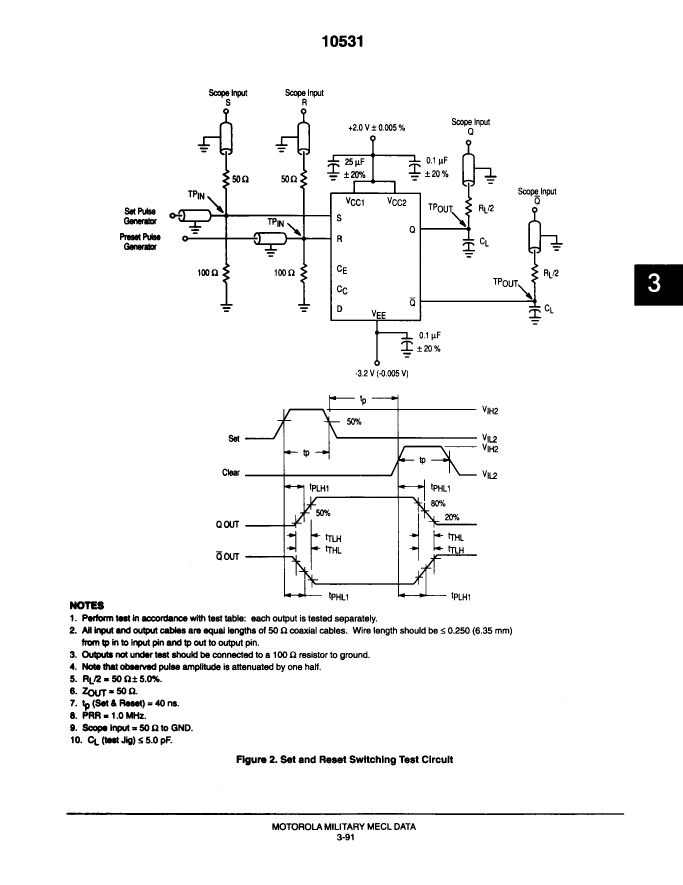

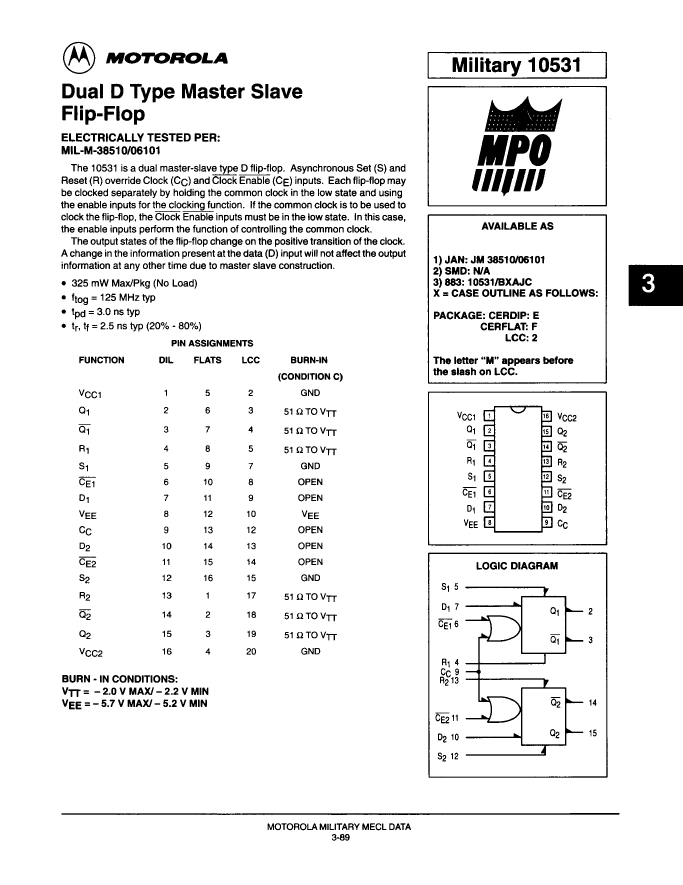

TT10531M/B2AJC Overview

D Flip-Flop, 2-Func, Master-slave Triggered, ECL, CQCC20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	S-XQCC-N20
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	105000000 Hz
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	-5.2 V
Maximum supply current (ICC)	62 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	MASTER-SLAVE
Base Number Matches	1

	TT10531M/B2AJC	TT10531/BFAJC	ATS-03C-144-C2-R0
Description	D Flip-Flop, 2-Func, Master-slave Triggered, ECL, CQCC20	D Flip-Flop, 2-Func, Master-slave Triggered, ECL, CDFP16	Heat Sink Assembly
Is it Rohs certified?	incompatible	incompatible	-
package instruction	QCCN, LCC20,.35SQ	DFP, FL16,.3	-
Reach Compliance Code	unknown	unknown	-
Is Samacsys	N	N	-
JESD-30 code	S-XQCC-N20	R-XDFP-F16	-
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	-
Maximum Frequency@Nom-Sup	105000000 Hz	105000000 Hz	-
Number of functions	2	2	-
Number of terminals	20	16	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	CERAMIC	CERAMIC	-
encapsulated code	QCCN	DFP	-
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3	-
Package shape	SQUARE	RECTANGULAR	-
Package form	CHIP CARRIER	FLATPACK	-
power supply	-5.2 V	-5.2 V	-
Maximum supply current (ICC)	62 mA	62 mA	-
Certification status	Not Qualified	Not Qualified	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
surface mount	YES	YES	-
technology	ECL	ECL	-
Temperature level	MILITARY	MILITARY	-
Terminal form	NO LEAD	FLAT	-
Terminal pitch	1.27 mm	1.27 mm	-
Terminal location	QUAD	DUAL	-
Trigger type	MASTER-SLAVE	MASTER-SLAVE	-
Base Number Matches	1	1	-
