17803CB-801: DescriptionSingle Color LED Display Cluster, White; CategoryLED optoelectronic/LED photoelectric; File Size247KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

17803CB-801 Overview

Single Color LED Display Cluster, White

17803CB-801 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Is Samacsys	N
color	WHITE
JESD-609 code	e0
Number of functions	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

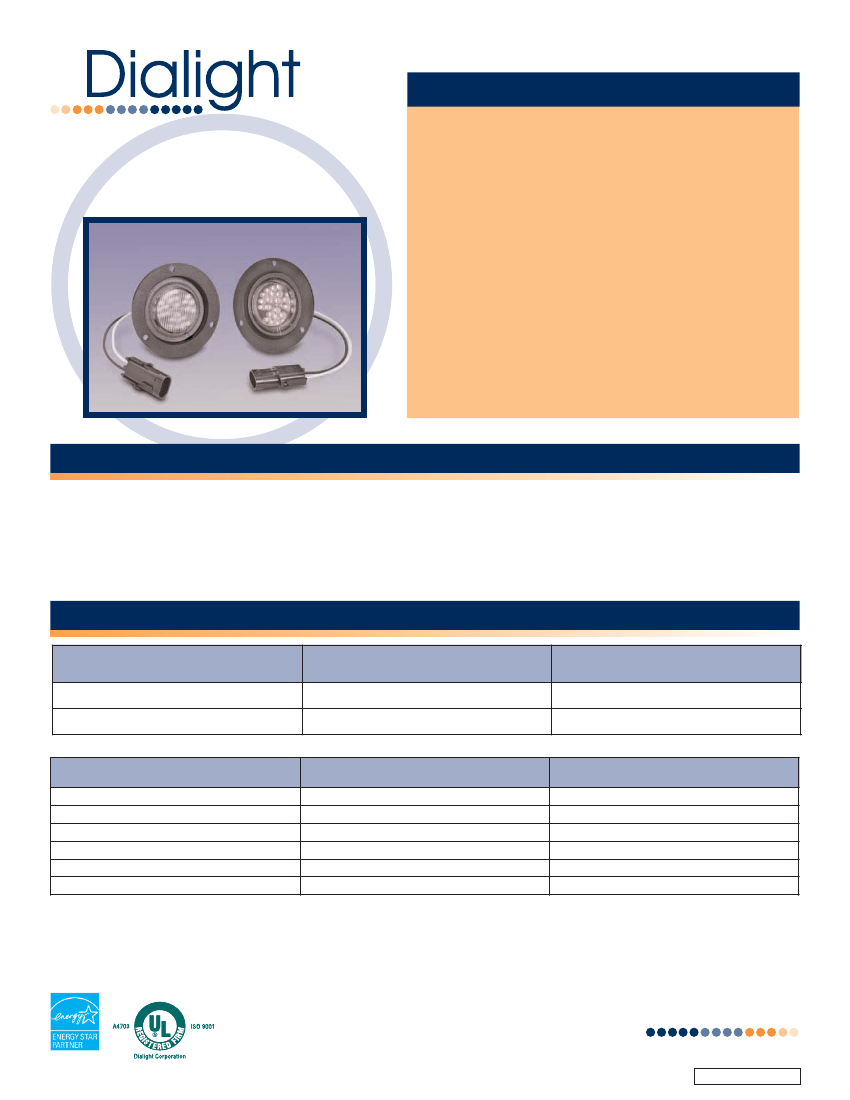

FEATURES / BENEFITS

17 SERIES

2

1

/

2

” Round Flanged Mount

White LED Lamps

Wide-Beam / Step light lens with optics to spread light

output

Spot light lens with no optics to give bright narrow beam

Designed to replace incandescent and halogen lighting

12 and 24 volt operation

Integral wiring

Optional connectors available

Polycarbonate lens / housing

Welded lens / housing

High vibration resistance

Reduced current draw

Longer Life

APPLICATION

The 17 Series white LED lamps offer unique options to make the lamps suitable for a wide variety of applications ranging from

stairway lighting to the replacement of small halogen lamps typically used for reading and spot light applications. The vibration

resistant design make these devices ideal for use in rail, heavy-duty vehicle, and rugged industrial applications. The lamps

welded construction provide a sealed operating environment for the LEDs and the integral wiring is readily adaptable to a wide

variety of installations and applications.

SPECIFICATIONS

Part Number

17081CB(-8xx)

17083CB(-8xx)

Operating Voltage

12 Volts DC

24 Volts DC

Typical Current

175 mAmps

80 mAmps

Part Number

17081CB

17081CB-801

17081CB-802

17083CB

17083CB-801

17083CB-803

Voltage

12

24

VDC

Application

Wide-Beam Light

Step Light

Spot Light

Wide-Beam Light

Step Light

Spot Light

Note:

Part numbers 1708xCB and 1708xCB-801 contain optics that spread the light output along the horizontal axis.

Part number 17081CB-802 and 17083CB-803 contain no optics in the lens.

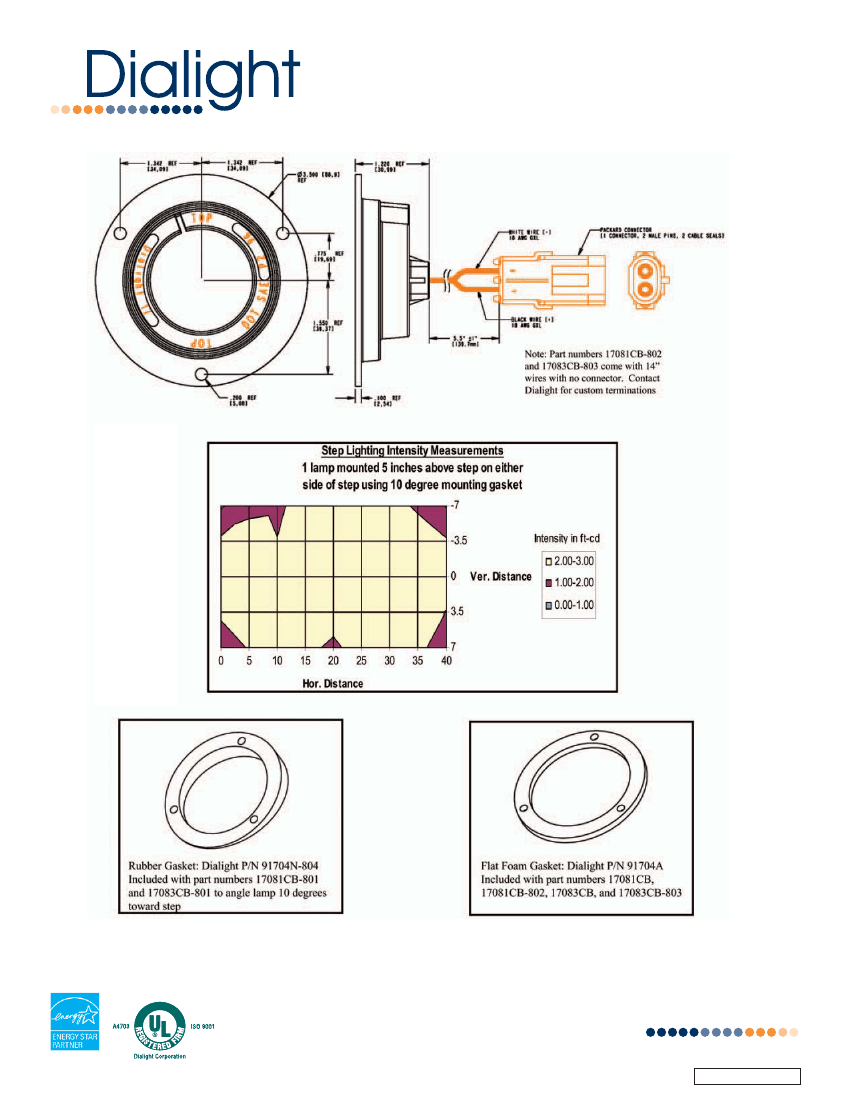

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDTB17BX001_A

17803CB-801 Related Products

	17803CB-801	17801CB-802	17801CB-801	17801CB	17803CB-803	17803CB
Description	Single Color LED Display Cluster, White	Single Color LED Display Cluster, White	Single Color LED Display Cluster, White	Single Color LED Display Cluster, White	Single Color LED Display Cluster, White	Single Color LED Display Cluster, White
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N	N
color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1
