19220352: DescriptionSingle Color LED, Yellow, Diffused, T-4, 10mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size138KB，2 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

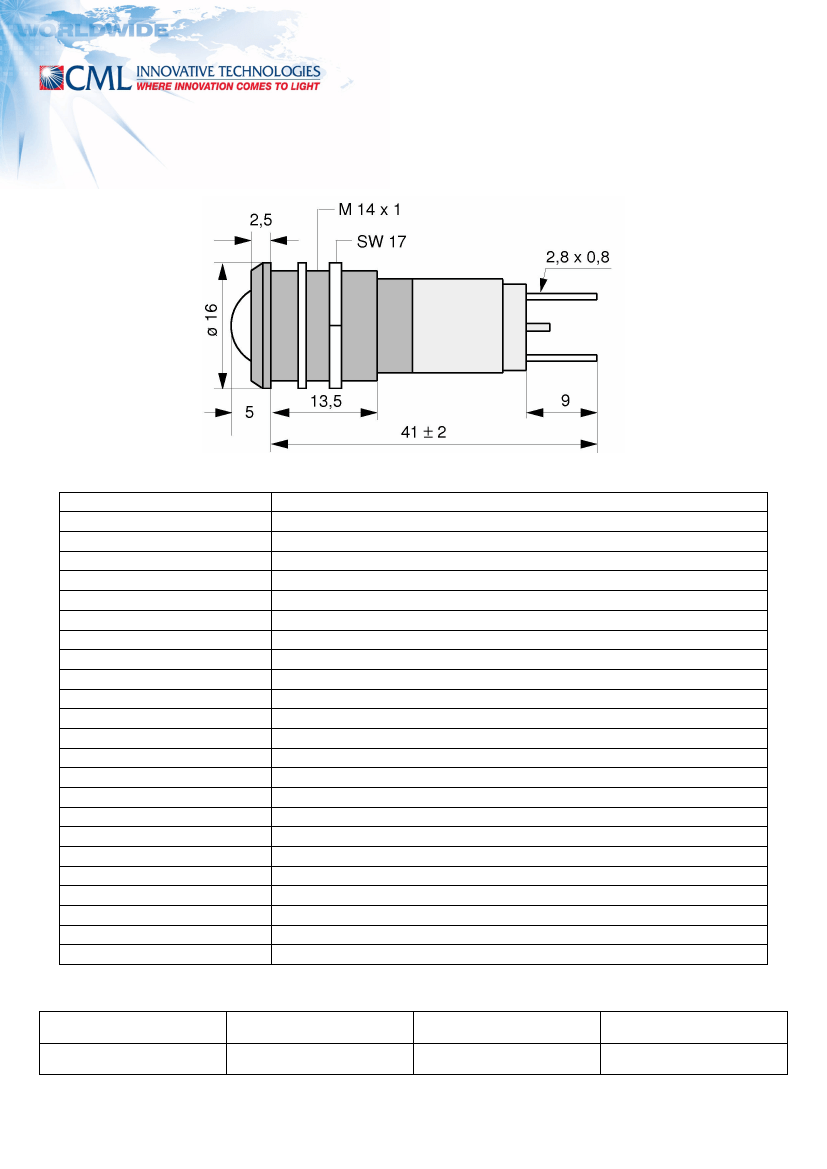

19220352 Overview

Single Color LED, Yellow, Diffused, T-4, 10mm, ROHS COMPLIANT PACKAGE-2

19220352 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Is Samacsys	N
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.056 A
Lens type	DIFFUSED
Nominal luminous intensity	70.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5 mm
method of packing	BULK
shape	ROUND
size	10 mm
surface mount	NO
T code	T-4
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number : 19220352

Serial Number : 1922

LEDs Indicators

Mounting hole (inch)

Mounting hole (metric)

Indicator type

Mounting type

Bezel type

Bezel material

Bezel color

Bezel size

Protection

Lens type

Lens color

Lens size

Connector Tpe

Connector number

Connector for lamp test

Number LED chip

Indicator color

Dom wave length

Peak Wave Lenght (mA)

Op. voltage (V)

Forward volt max.

Rectifier

AC current

DC current

0.5512"

14mm

flashing

with bezel

prominent

metal

satin chrome

M14

IP40

round

yellow diffused

10mm

tab terminals 2.8x0.8

2

no

1

yellow

588nm

24V DC

-

38-56mA

Drawn : ROJ

Revision :

Ch'd : ROJ

Revision date : 2006-03-15

Datasheet : 1922

Name : ROJ

Print date : 03/10/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
