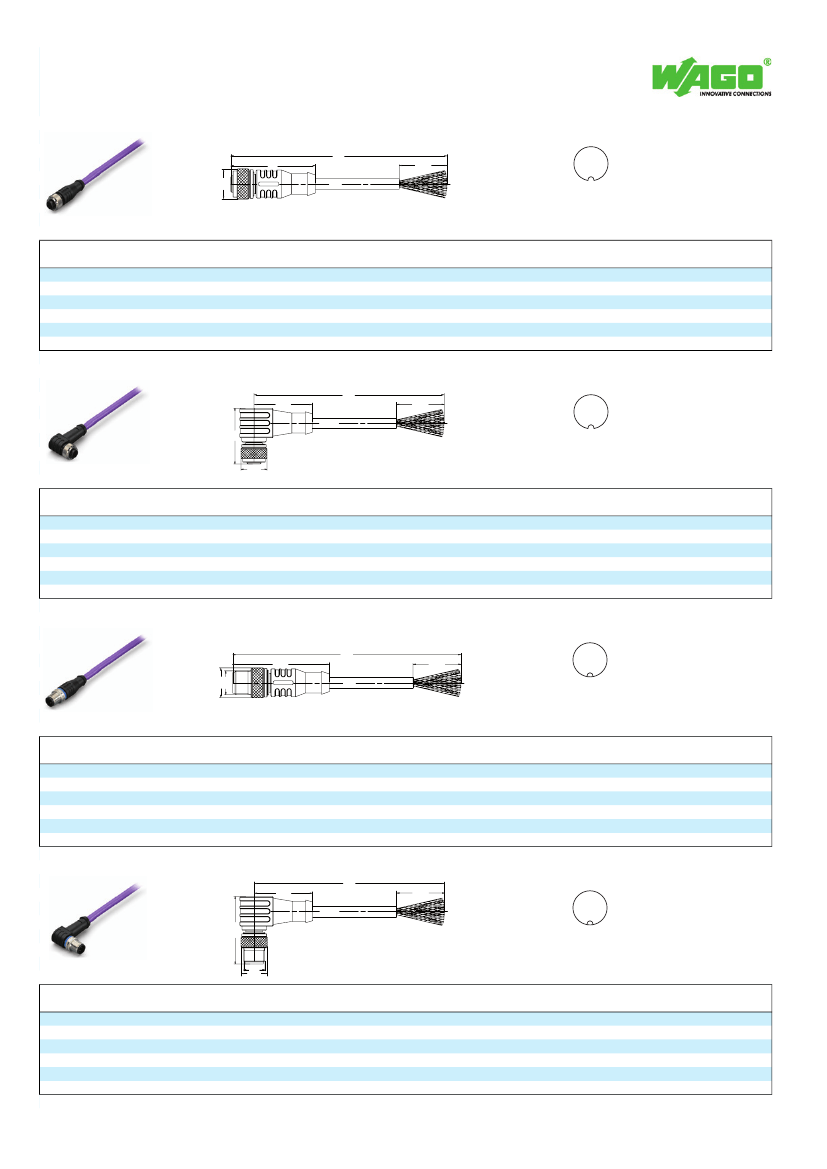

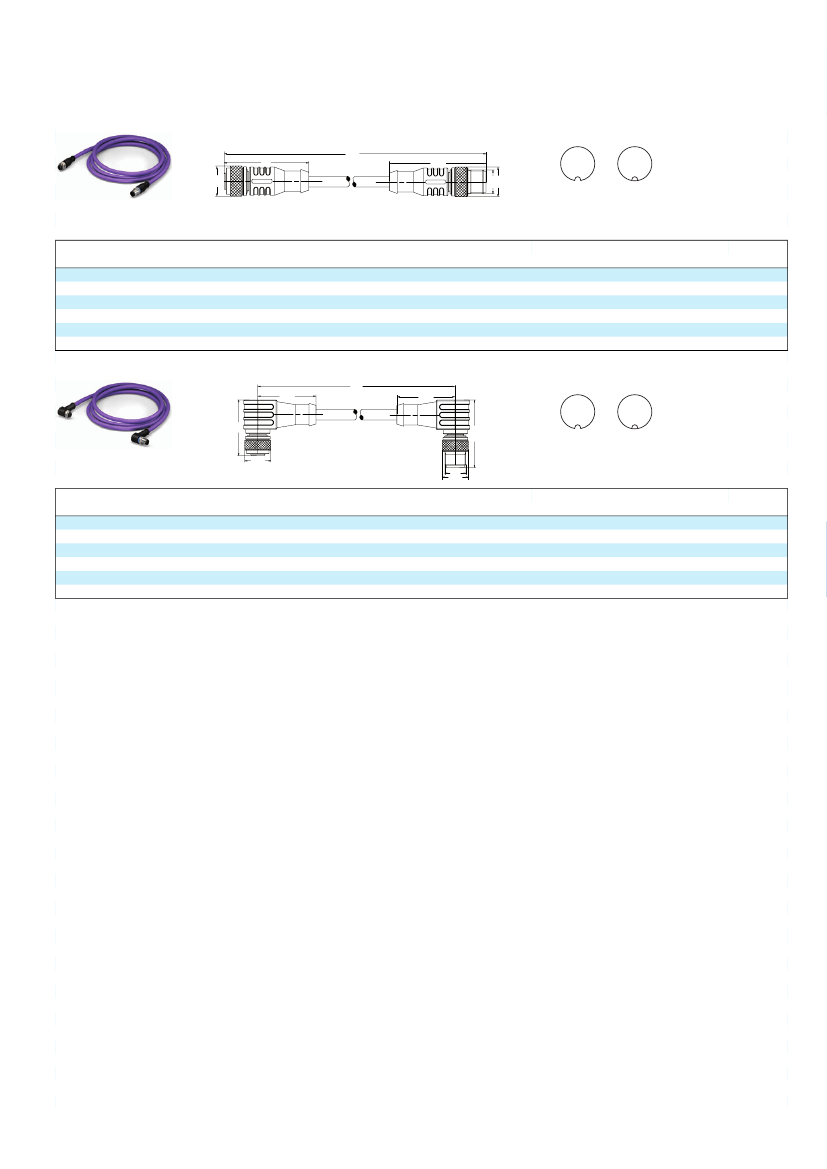

WAGO-SPEEDWAY 767
CANopen, DeviceNet cables, with one end of cable fitted
L*)
42
ø15
35±2
3
5
2
4
1
Pin 2 and 3: 0.38 mm²
Pin 4 and 5: 0.67 mm²
1 = Shield
2 = red
3 = black
4 = white
5 = blue
(mm)
M12 socket, straight, A coded
M12 socket, straight, one free cable end, 2.0 m
M12 socket, straight, one free cable end, 5.0 m
M12 socket, straight, one free cable end, 10.0 m
M12 socket, straight, one free cable end, 20.0 m
Item No.
756-1401/060-020
756-1401/060-050
756-1401/060-100
756-1401/060-200
Pack. Unit
1
1
1
1
L*)
33,5
35±2
3
5
2
1
4
(mm)
ø15
Pin 2 and 3: 0.38 mm²
Pin 4 and 5: 0.67 mm²
1 = Shield
2 = red
3 = black
4 = white
5 = blue
M12 socket, right angle, A coded
M12 socket, right angle, one free cable end, 2.0 m
M12 socket, right angle, one free cable end, 5.0 m
M12 socket, right angle, one free cable end, 10.0 m
M12 socket, right angle, one free cable end, 20.0 m
32
Item No.
756-1402/060-020
756-1402/060-050
756-1402/060-100
756-1402/060-200
Pack. Unit
1
1
1
1
L*)
48,5
M12x1
4
3
5
2
35±2
1
Pin 2 and 3: 0.38 mm²
Pin 4 and 5: 0.67 mm²
1 = Shield
2 = red
3 = black
4 = white
5 = blue
ø15
(mm)
M12 plug, straight, A coded
M12 plug, straight, one free cable end, 2.0 m
M12 plug, straight, one free cable end, 5.0 m
M12 plug, straight, one free cable end, 10.0 m
M12 plug, straight, one free cable end, 20.0 m
Item No.
756-1403/060-020
756-1403/060-050
756-1403/060-100
756-1403/060-200
Pack. Unit
1
1
1
1
L*)
33,5
35±2
4
5
1
2
3
(mm)
Pin 2 and 3: 0.38 mm²
Pin 4 and 5: 0.67 mm²
1 = Shield
2 = red
3 = black
4 = white
5 = blue
38,5
M12x1
ø15
M12 plug, right angle, A coded
M12 plug, right angle, one free cable end, 2.0 m
M12 plug, right angle, one free cable end, 5.0 m
M12 plug, right angle, one free cable end, 10.0 m
M12 plug, right angle, one free cable end, 20.0 m
Item No.
756-1404/060-020
756-1404/060-050
756-1404/060-100
756-1404/060-200
Pack. Unit
1
1
1
1
WAGO Kontakttechnik GmbH & Co. KG
Subject to design changes
18.02.2010
Postfach 2880 - D-32385 Minden
Hansastr. 27 - D-32423 Minden
Phone: +49(0)571/887-0
Fax: +49(0)571/887-169
E-Mail: info@wago.com
www.wago.com
WAGO-SPEEDWAY 767
