1697230000: DescriptionModular Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size70KB，1 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1697230000 Overview

Modular Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s)

1697230000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Fastening method	SCREW
Manufacturer's serial number	LP7.50
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	3
Rated current	15 A
Rated voltage	300 V
safety certificate	UL; VDE; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

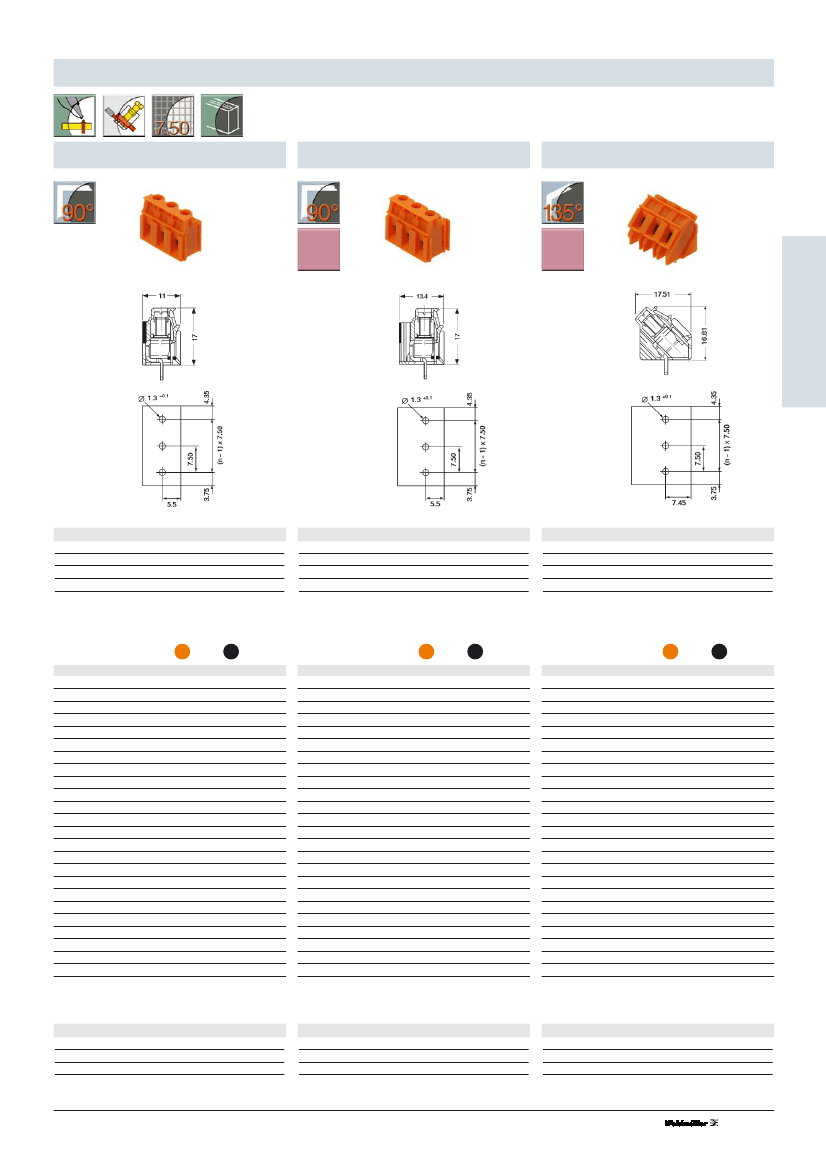

Rated cross-section

≤

2.5 mm

2

LP 7.50/90

LPP 7.50/90

LP 7.50/135

Technical Data

VDE

UL

300

15

12

CSA

300

15

12

Technical Data

VDE

UL

300

15

12

CSA

300

15

12

Technical Data

VDE

UL

300

15

12

CSA

300

15

12

Rated voltage

V

500*

Rated current

A

26

Clamping range max.

mm

2

/AWG

4.0

*Overvoltage category III / Pollution severity 3

Additional technical data see page 59

Rated voltage

V

500*

Rated current

A

26

Clamping range max.

mm

2

/AWG

4.0

*Overvoltage category III / Pollution severity 3

Additional technical data see page 59

Rated voltage

V

500*

Rated current

A

26

Clamping range max.

mm

2

/AWG

4.0

*Overvoltage category III / Pollution severity 3

Additional technical data see page 59

Solder pin length

Colour

Poles Type

2

LP 7.50/2/90

3

LP 7.50/3/90

3.2 mm

4.5 mm

Solder pin length

Colour

Poles Type

2

LPP 7.50/2/90

3

LPP 7.50/3/90

3.2 mm

4.5 mm

Solder pin length

Colour

Poles Type

2

LP 7.50/2/135

3

LP 7.50/3/135

3.2 mm

4.5 mm

Cat. No.

Qty.

1594420000 1697220000

100

1594430000 1697230000

100

Cat. No.

Qty.

1594440000 1697260000

100

1594450000 1697270000

100

Cat. No.

Qty.

1595770000 1697300000

100

1595810000 1697310000

100

Accessories

Marking

Fixing

Miscellaneous

Page

40

46

Accessories

Marking

Fixing

Miscellaneous

Page

40

46

43, 46

Accessories

Marking

Fixing

Miscellaneous

Page

40

-

46

29

Rated cross-section

≤

2.5 mm

2

with

test point

with

test point
