1020600000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1020600000

1020600000: DescriptionModular Terminal Block, 125A, 35mm2; CategoryThe connector terminals; File Size950KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1020600000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1020600000	-	-	View	Buy Now

1020600000 Overview

Modular Terminal Block, 125A, 35mm2

1020600000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Is Samacsys	N
Fastening method	SCREW
Manufacturer's serial number	WDU35
Installation type	C RAIL
Rated current	125 A
Rated voltage	1000 V
safety certificate	UL; VDE; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	35 mm2
Wire gauge	1 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

Feed Through Terminals

WDU 16N

WDU 16

WDU 35N

WDU 35

Single Level

Part No.

1036100000

1036180000

Part No.

1020400000

1020480000

Single Level

Part No.

1040400000

1040480000

Single Level

Part No.

1020500000

1020580000

1020600000

1020680000

1752300000

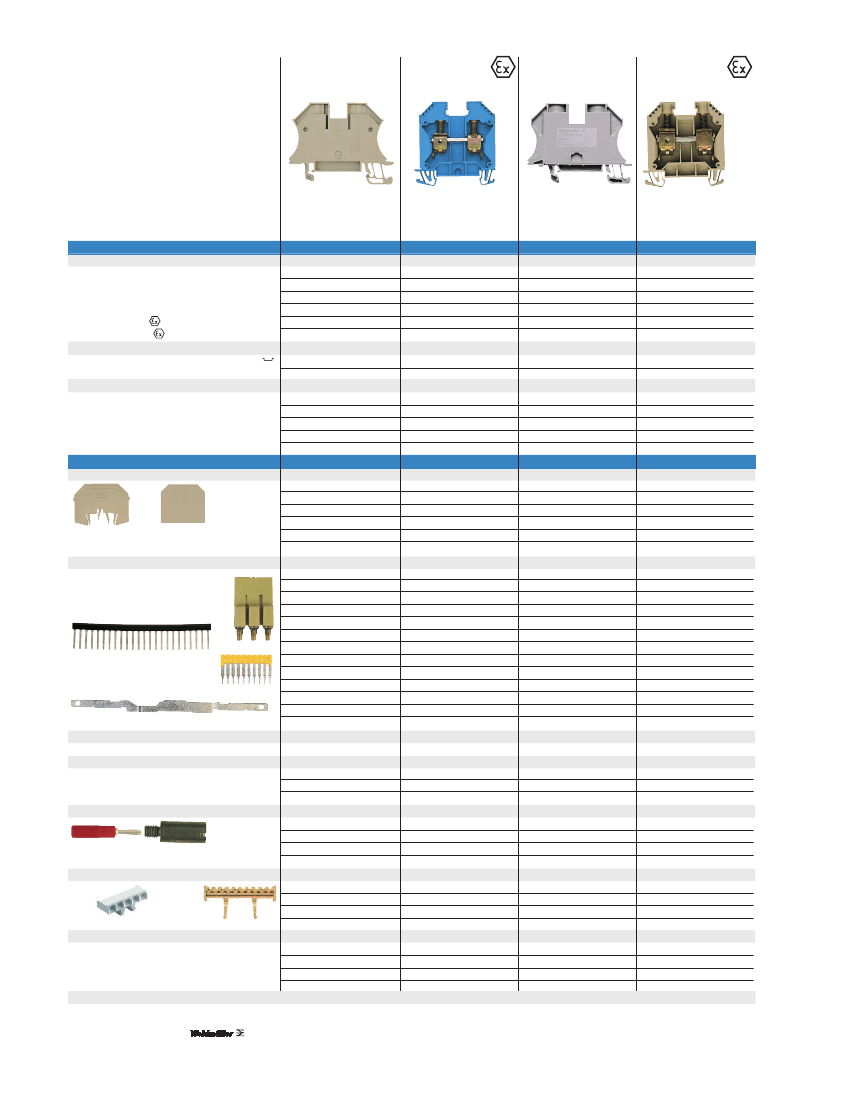

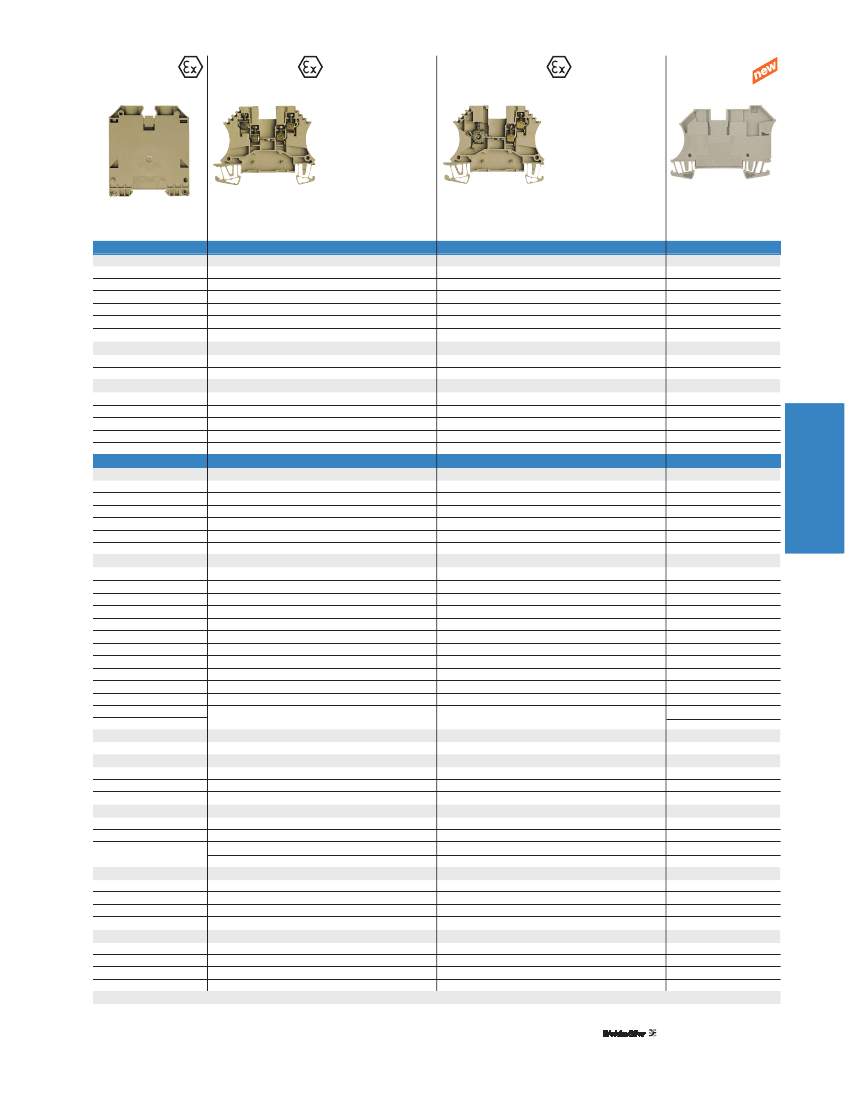

Terminal Block Selection Data

Available Options

Version

Beige Wemid

Blue Wemid

Beige Wemid (hex socket)

Blue Wemid (hex socket)

Beige Wemid (ATEX certified)‡‡

Blue Wemid (ATEX certified)‡‡

for TS 35

mm (in.)

CSA

VDE

Nm (lb. in.)

1752280000

Dimensions

Width / Length / Height mm (in.)

Insulation stripping length

Technical Data

Rated voltage / rated current / wire size

12/60/47 (.47/2.36/1.85)

12 (.47)

600 V / 70 A / #14…6 AWG

600 V / 65 A / #14…6 AWG

400 V / 76 A / 16 mm

2.3 (20.4)

Type

Not Required

WTW (3)

Part No.

12/60/63 (.47/2.36/2.48)

16 (.63)

600 V / 80 A / #14…4 AWG

600 V / 65 A / #14…6 AWG

1000 V / 76 A / 16 mm

4.0 (35.0)

Type

WAP (1.5)

Part No.

1050100000

1050180000

16/66/51 (.63/2.60/2.00)

18 (.71)

1000 V / 125 A / #12…1 AWG

600 V / 120 A / #12…2 AWG

600 V / 125 A / 35 mm

5.8 (51.0)

Type

Not Required

Part No.

16/60/63 (.63/2.36/2.48)

18 (.71)

1000 V / 125 A / #12…1 AWG

600 V / 120 A / #12…2 AWG

1000 V / 125 A / 35 mm

5.8 (51.0)

Type

WAP (1.5)

Part No.

1050100000

1050180000

Torque

Clamping screw

Selected Accessory Data

‡

End Plate (WAP) / Partition (WTW) (thickness mm)

Beige Wemid

Blue Wemid

Orange Wemid

Beige Wemid

Blue Wemid

Beige Wemid

1058800000

WTW

WAP

Jumpers

Note: Final number in model indicates

no. of poles (e.g. WQV 16N/2 = 2 poles).

For additional information, see

Accessories section.

WQV 16N/2

WQV 16N/3

WQV 16N/4

1636560000

1636570000

1636580000

WQV

16/2

16/3

16/4

16/10

16/2 blue

1053260000

1055160000

1055260000

1053360000

1053280000

WQV 35N/2

WQV 35N/3

WQV 35N/4

1079200000

WQV 35/2

1079300000

WQV 35/3

1079400000

WQV 35/4

WQV 35/10

WQV 35/2 blue

1053060000

1055360000

1055460000

1053160000

1053080000

WQV

WQB 24/16

Shield Bar LS 2.8**

ZQV

Auxiliary / Control Conductor Terminal

Tools

Cutting tool WAW 1 for WQV jumpers

Screwdriver

Hexagon socket screw key

Test Plugs / Sockets

For #18 AWG wire

For #12 AWG wire

PS 2.3 Test plug

StB 8.5 Socket

Group Marking

WAW 1

9004500000

9008350000

WAW 1

9004500000

9008350000

Hex wrench (4 mm)

0485100000

PS 2.3 (ø 2.3)

PS 4 (ø 4)

StB 8.5 (ø 2.3)

StB 14 (ø 4)

0180400000

0299600000

0280600000

0169900000

PS 4 (ø 4)

StB 16 (ø 4)

0299600000

0140200000

PS 4 (ø 4)

StB 16 (ø 4)

0299600000

PS 4 (ø 4)

0299600000

0140200000

StB 16 (ø 4)

WGB

Tag carrier for S 10 markers

Marking Tags

Consecutive horizontal

Note: Part numbers shown are for

Consecutive vertical

a single card of pre-printed tags

numbered 1-50. For additional information,

WS white, blank

see Accessories section.

WS individually printed

DEK 5/6.5

0468160001

0468260001

DEK 5/6.5

0468160001

0468260001

DEK 5/6.5

0468160001

0468260001

DEK 5/6.5

0468160001

0468260001

‡

See Accessories section for additional information.

‡‡

See Appendix pages 250-255 for additional information.

1020600000 Related Products

	1020600000	1752280000	1020680000	1752300000
Description	Modular Terminal Block, 125A, 35mm2	Modular Terminal Block, 80A, 16mm2	Modular Terminal Block, 125A, 35mm2	Modular Terminal Block, 125A, 35mm2
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N
Fastening method	SCREW	SCREW	SCREW	SCREW
Installation type	C RAIL	C RAIL	C RAIL	C RAIL
Rated current	125 A	80 A	125 A	125 A
Rated voltage	1000 V	600 V	1000 V	1000 V
safety certificate	UL; VDE; CSA	UL; VDE; CSA	UL; VDE; CSA	UL; VDE; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Conductor cross section	35 mm2	16 mm2	35 mm2	35 mm2
Wire gauge	1 AWG	4 AWG	1 AWG	1 AWG
Base Number Matches	1	1	1	1
