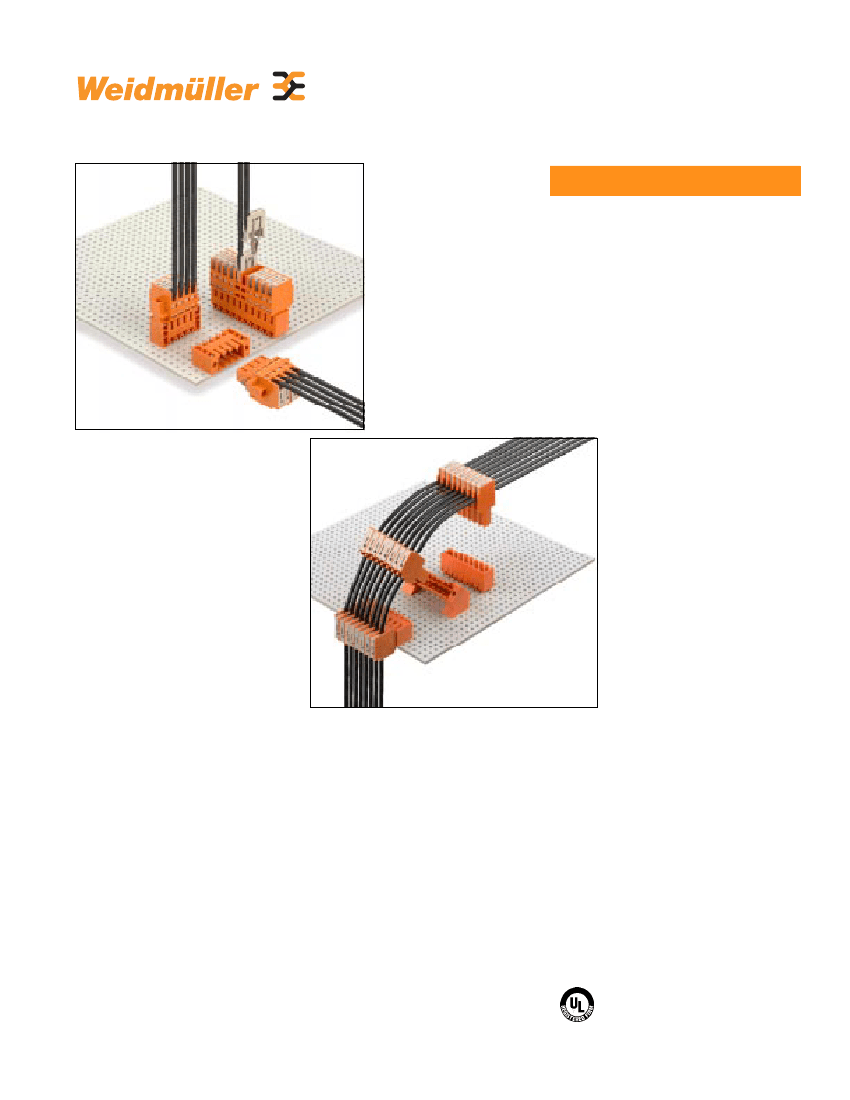

BLIDC 3.5
BLIDC B 3.5
PCB Connector Plugs with
Insulation Displacement
Technology (IDC) -
Standard and Bus Version
Introduction
Wiring time is reduced by 60% with
Weidmuller’s new Insulation
Displacement Connector Plugs -
BLIDC 3.5. The BLIDC can be used to
connect cables in seconds, without
special tools. The unstripped wire is
simply inserted into the opened
terminal point, which is then closed.
During the closing movement, the
innovative design of the IDC contact
pierces and displaces the cable
insulator, making a permanent, secure
connection to the conductor. The
contact wafer can also be easily
removed and reinserted in the event
of wiring errors.
The Bus version allows for a
continuous, uniterrupted wiring
system. Daisy chaining becomes
simple and efficient. The BLIDC B 3.5
produces a timesaving of up to 80%
over screw clamp Bus connectors.
The BLIDC 3.5 is available in two to
sixteen pole versions. The BLIDC B is
available in two to eight pole versions.
Both are offered with or without
mounting flanges, and feature a test
probe access. One socket block has
both 90 and 180 degree wire outlets.
Coding keys and adhesive strip
marking are available to customize
your application.
All Weidmuller 3.5 mm plugs,
including the new BLIDC and BLIDC
B 3.5, can be mated with SL 3.5 pin
headers and SL SMT 3.5 Suface
Mount Compatible pin headers.
Weidmuller also offers 3.5 mm
connector plugs in screw clamp and
tension clamp varieties. Weidmuller is
continuously expanding its offering of
compact 3.5 mm PCB connectors to
provide additional flexibility and
choice for your application.
For fast, secure, and efficient wiring
without special tools, the BLIDC 3.5
saves up to 60% in wiring time.
Benefits
•
Fast, secure, efficient wiring without
special tools
•
60% reduction in wiring time
•
Reduced wiring costs
•
One plug with both 90 and 180
degree cable outlet
•
Test probe access
•
Miswiring is easily corrected
•
Uninterrupted Bus wiring
For more information, contact
Weidmuller Inc.
Telephone
(800) 849-9343
Facsimile
(804) 379-2593
E-mail
info@weidmuller.com
Website
www.weidmuller.com
ISO 9001
A2025
BLIDC 3.5
BLIDC 3.5 F
with locking flanges
BLIDC B 3.5
Bus version
BLIDC B 3.5 F
Bus version
with locking flanges

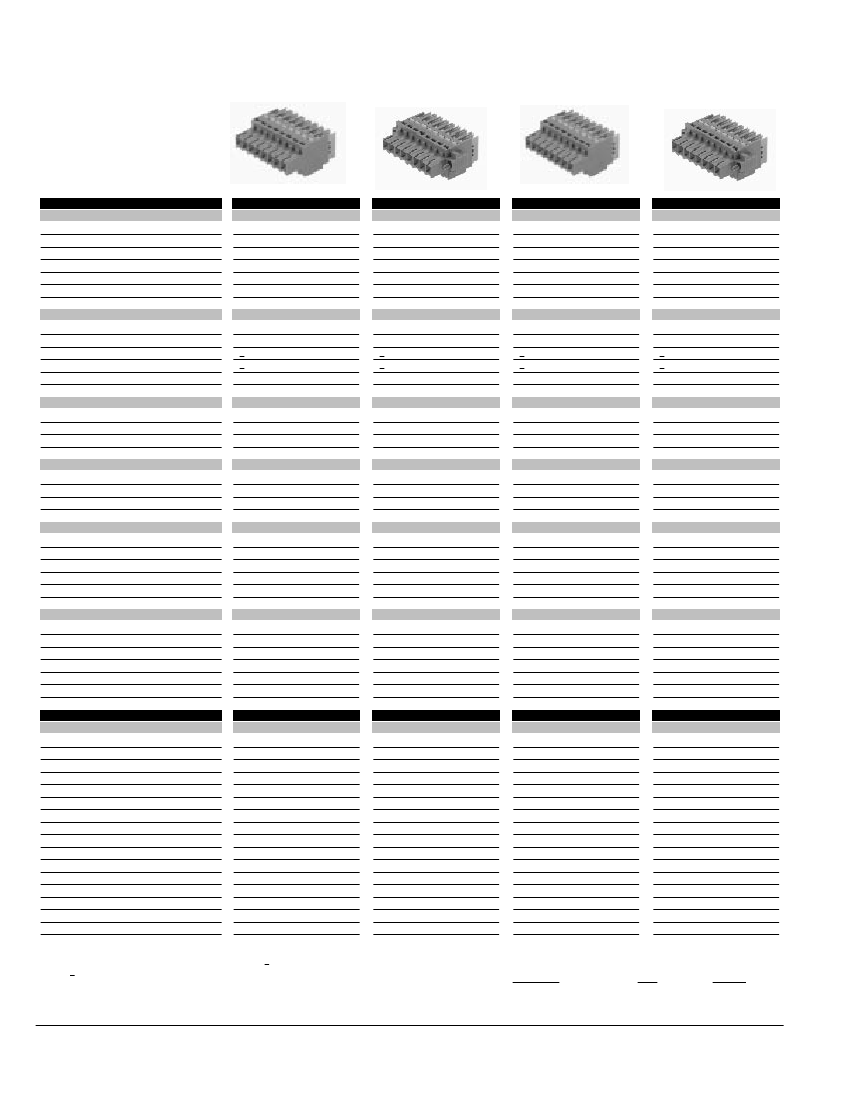

Technical Data
Materials
Insulation material
Color
Temperature Range
Flammability class
Contact Base Material
Contact Plating
General
Pitch
Connection method
Insulation resistance
Through resistance
Poles
UL Rated Data
Rated voltage, industrial
Rated current
Wire Size
CSA Rated Data
Rated voltage, industrial
Rated current
Wire size
(22/1, 22/7, 20/1, 20/7, 20/19)
VDE 0110 1.89 Rated Data
Rated cross-section
Rated current (Tu=20
o
C)
Overvoltage category / Pollution severity
Rated voltage
Impulse voltage
Wire Size
2)
Clamping range
“e” solid
H05(07) V-U
“f” flexible H05(07) V-K (only stranded wires)
“f” flexible FLR-Y-A accord. to DIN 72551
“f” flexible FLR-Y-B accord. to DIN 72551
Insulation diameter max.
Ordering Data
Note: To protect against injuries,
we suggest using a simple backup
guide while terminating the wires.
Weidmuller offers this guide, please
see ordering data below*. An SL 3.5
series header soldered onto a PCB
can also serve as a back up guide.
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PBT
Black
1)
-20...+100
o
C
UL 94 V-0
CuSn
tin
PBT
Black
1)
-20...+100
o
C
UL 94 V-0
CuSn
tin
PBT
Black
1)
-20...+100
o
C
UL 94 V-0
CuSn
tin
PBT
Black
1)
-20...+100
o
C
UL 94 V-0
CuSn
tin
3.5 mm
IDC
> 10
5
MW
< 5 mW
2...16
3.5 mm
IDC
> 10
5
MW
< 5 mW
2...16
3.5 mm
IDC
> 10
5
MW
< 5 mW
2...8
3.5 mm
IDC
> 10
5
MW
< 5 mW
2...8
300 V
7A
22...20 AWG
300 V
7A
22...20 AWG
300 V
7A
22...20 AWG
300 V
7A
22...20 AWG
300 V
7A
22...20 AWG
300 V
7A
22...20 AWG
300 V
7A
22...20 AWG
300 V
7A
22...20 AWG
0.5 mm
2
6A
III/3
125 V
2.5 kV
0.5 mm
2
6A
III/3
125 V
2.5 kV
0.5 mm
2
6A
III/3
125 V
2.5 kV
0.5 mm
2
6A
III/3
125 V
2.5 kV
0.5 mm
2
0.5 mm
2
0.5 mm
2
0.35 mm
2
0.35 mm
2
2.1 mm
2
Black
Std. Pack
Part No. Qty
177094
100
177095
100
177096
100
177097
50
177098
50
177099
50
177100
50
177101
50
177102
50
177103
50
177104
50
177105
50
177106
50
177107
50
177108
50
0.5 mm
2
0.5 mm
2
0.5 mm
2
0.35 mm
2
0.35 mm
2
2.1 mm
2
Black
Std. Pack
Part No. Qty
177109
100
177110
100
177111
100
177112
50
177113
50
177114
50
177115
50
177116
50
177117
50
177118
50
177119
50
177120
50
177121
50
177122
50
177123
50
0.5 mm
2
0.5 mm
2
0.5 mm
2
0.35 mm
2
0.35 mm
2
2.1 mm
2
Black
Std. Pack
Part No. Qty
177067
100
177068
100
177069
100
177070
50
177071
50
177072
50
177073
50
0.5 mm
2
0.5 mm
2
0.5 mm
2
0.35 mm
2
0.35 mm
2
2.1 mm
2
Black
Std. Pack
Part No. Qty
177074
100
177075
100
177076
100
177077
50
177078
50
177079
50
177080
50
Description
BLIDC 3.5/2
BLIDC 3.5/3
BLIDC 3.5/4
BLIDC 3.5/5
BLIDC 3.5/6
BLIDC 3.5/7
BLIDC 3.5/8
BLIDC 3.5/9
BLIDC 3.5/10
BLIDC 3.5/11
BLIDC 3.5/12
BLIDC 3.5/13
BLIDC 3.5/14
BLIDC 3.5/15
BLIDC 3.5/16
Description
BLIDC 3.5/2 F
BLIDC 3.5/3 F
BLIDC 3.5/4 F
BLIDC 3.5/5 F
BLIDC 3.5/6 F
BLIDC 3.5/7 F
BLIDC 3.5/8 F
BLIDC 3.5/9 F
BLIDC 3.5/10 F
BLIDC 3.5/11 F
BLIDC 3.5/12 F
BLIDC 3.5/13 F
BLIDC 3.5/14 F
BLIDC 3.5/15 F
BLIDC 3.5/16 F
Description
BLIDC B 3.5/2
BLIDC B 3.5/3
BLIDC B 3.5/4
BLIDC B 3.5/5
BLIDC B 3.5/6
BLIDC B 3.5/7
BLIDC B 3.5/8
Description
BLIDC B 3.5/2 F
BLIDC B 3.5/3 F
BLIDC B 3.5/4 F
BLIDC B 3.5/5 F
BLIDC B 3.5/6 F
BLIDC B 3.5/7 F
BLIDC B 3.5/8 F
1)
2)
orange available upon request
conductor according to DIN EN 60352-4 / hardness of insulation > 95 Shore A
(or 95 + 5 Shore A)
*IDC Tools
Description
Screwdriver for pitch 3.50 mm
Assembly Backup Guide
for BLIDC 3.5
for BLIDC B 3.5
Type
SDI 0.4 x 2.5 x 80
BLIDC 3.5 ASB
BLIDC B 3.5 ASB
Part No.
9008370000
1774050000
1770310000
Weidmuller connectors are tested according to the DIN VDE 0627 standard, and are valid for its
field of application. Provided that the connectors are used for the intended purpose, all
requirements with respect to the occurrence of electrical, mechanical, thermic and corrosive
stress will be satisfied.
