Cat. 6A RJ45 Plug
(Strain Relief, Plastic
or Metallized Plastic
with M28 Threads)
Cat. 6A RJ45 Plug
(Strain Relief, Plastic
or Metallized Plastic
with M28 Threads)
C
Notes:
B
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
DOT NOT ALTER CAD DRAWING BY HAND
A
1. Electrical:
- Meets EIA/TIA-568-B.2-10 Cat.6A Channel Specification
- Connector Operating Temperature: -40~C to +85~C
2. Materials and Finish:
- Coupling Ring: Polyester (Black) or Metallized ABS (Nickel Plated); UL94 V-0
- Plug Housing: Polyester (Black) or Metallized ABS (Nickel Plated); UL94 V-0
- Interfacial Seal: Silicon, Color: White
- Cable Gland: PA (Black) or Brass, Nickel Plated
- Cable Gland Seal: NBR, Color: Black
- Cable Gland Insert (Metal Version): Nylon, Color: White
- Cat.6A RJ45 Plug Metal Shell: Copper Alloy, Nickel Plated
- Cat.6A RJ45 Plug Plastic Housing: Clear Polycarbonate UL94 V-2
- Cat.6A RJ45 Plug Contacts: Phosphor Bronze, Finish: 50u" Gold min. over Nickel
- Cable: Cat.6A SSTP, 4 Pairs, AWG26, Stranded, Jacket Color: Black
3. RoHS compliant
Directive 2002/95/EC RoHS Compliant
Cable Length
L
Plastic Version
Metallized
Plastic Version
2m
4m
5m
17-150604
17-150614
17-150624
17-150634
17-150644
17-150654
B
Note: Special cable length are available, please contact factory
Customer:
Name
Title
Approval Date
Unless otherwise specified
0 PLC
1 PLC
2 PLC
3 PLC
ANGES
±0.50
±0.38
±0.25
±0.10
±3°
Tolerance
Scale:
Autodesk
Inventor
Name
Vincent Ke
J. Chaudry
Dim. in meter
Material: See Notes
2011
Draw.
Appd.
Norm
D-old
Date
Sept. 22
Sept. 22

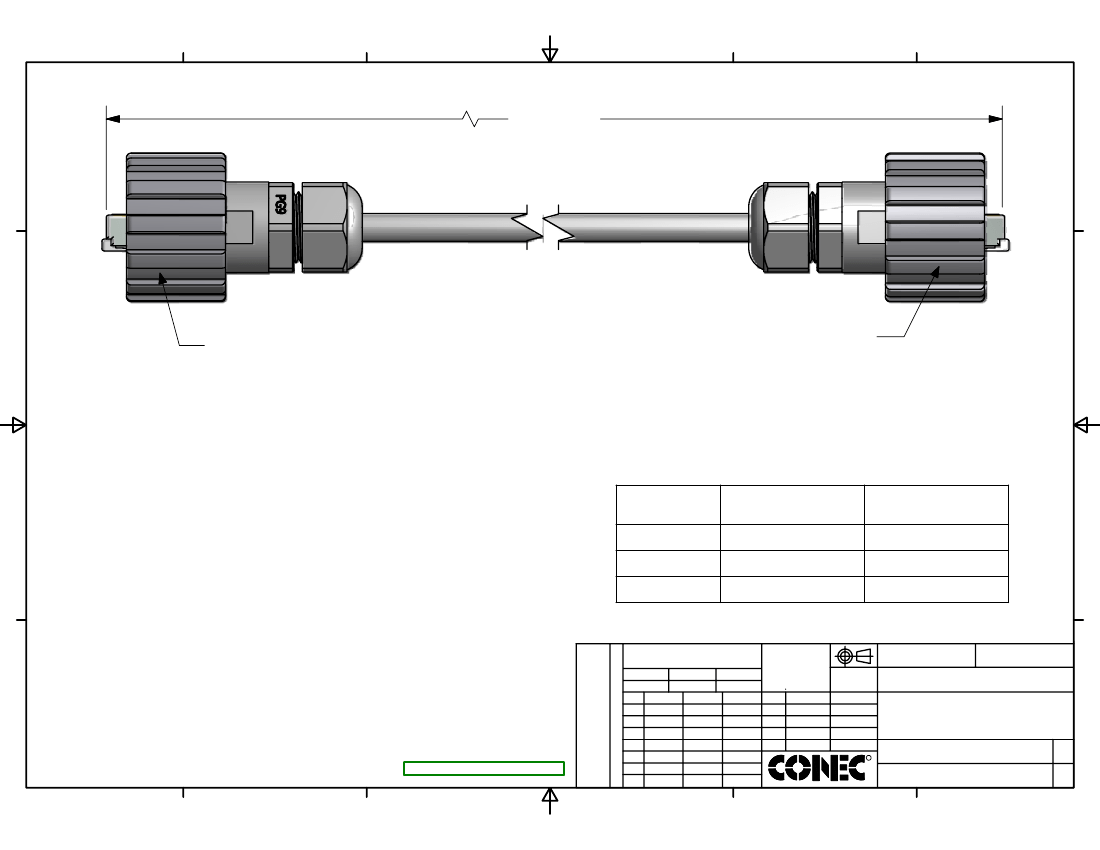

Cat.6A RJ45 Ethernet Patch Cords
A
Strain Relief to Strain Relief
Drawing No.: 17k1A276
Part No.: SEE PART NUMBER TABLE
DIN
R
A3
Sheet
a
Rev.
original
Changes
Date
Name
1/1
6
5
4
3
2
1
