10173F datasheet, PDF - EEWORLD Datasheet

10173F: DescriptionD Latch, 10K Series, 1-Func, Low Level Triggered, 4-Bit, True Output, ECL, CDIP16; Categorylogic logic; File Size115KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

10173F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10173F	-	-	View	Buy Now

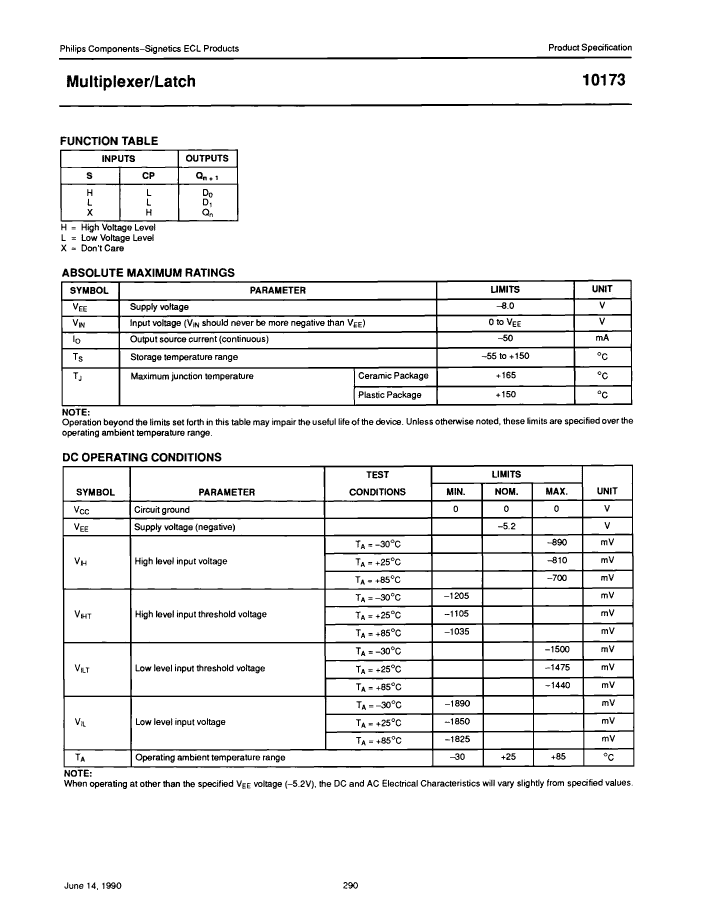

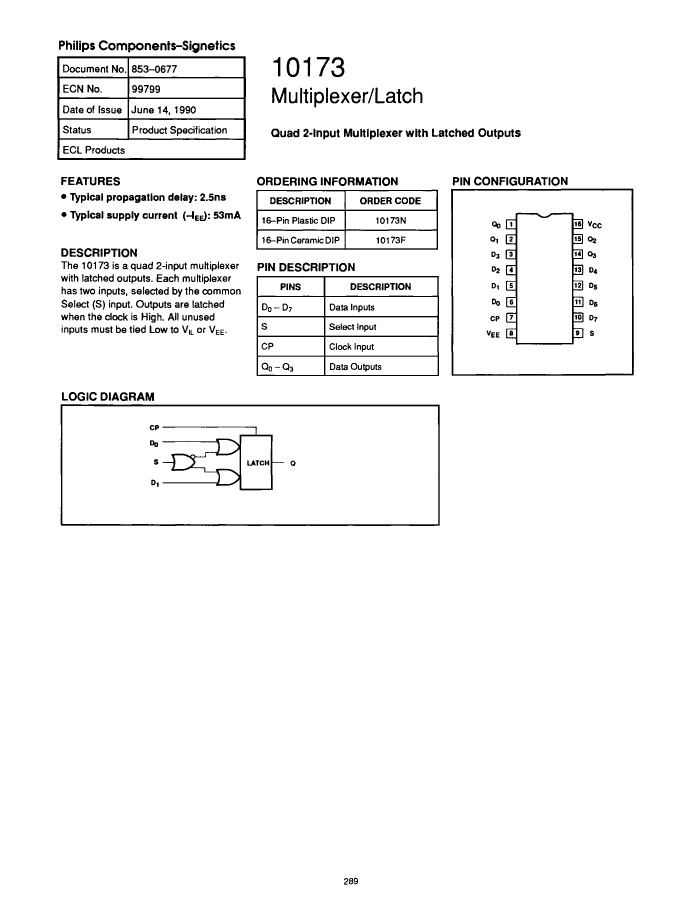

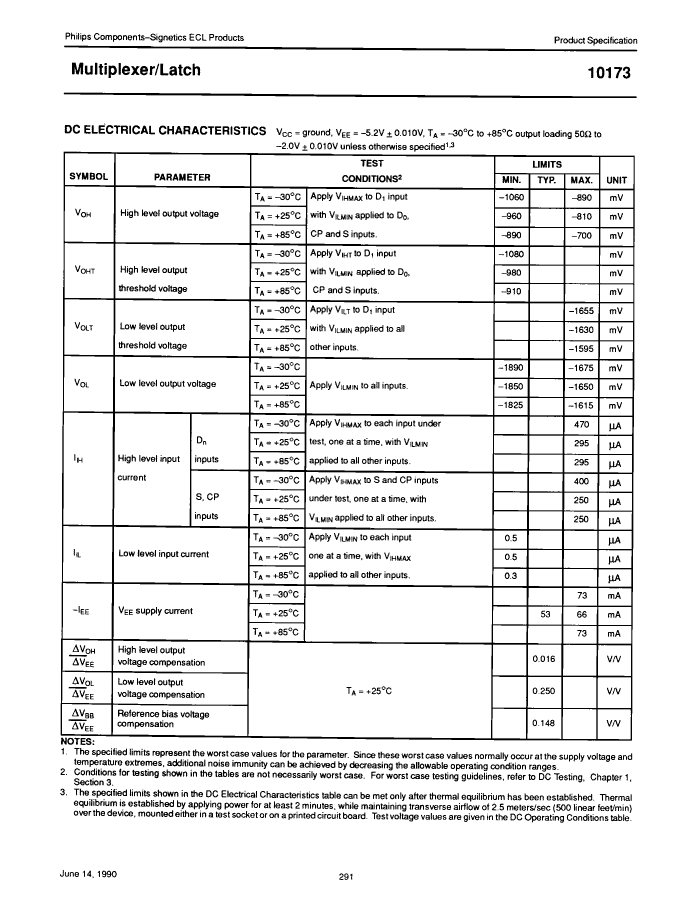

D Latch, 10K Series, 1-Func, Low Level Triggered, 4-Bit, True Output, ECL, CDIP16

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	10K
JESD-30 code	R-CDIP-T16
Logic integrated circuit type	D LATCH
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE

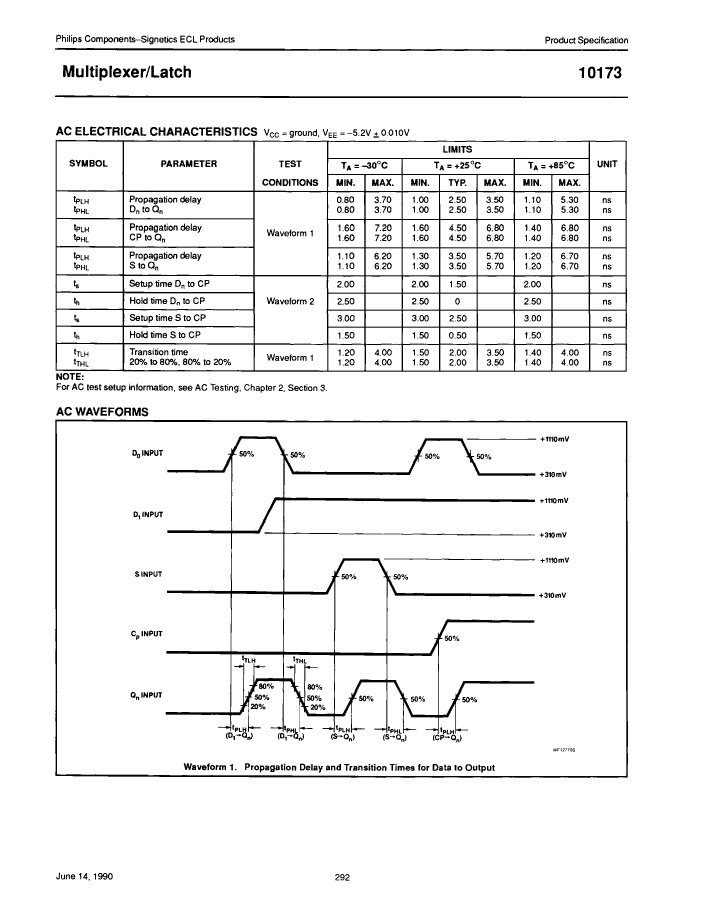

propagation delay (tpd)	7.2 ns
Certification status	Not Qualified
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	LOW LEVEL
Base Number Matches	1

	10173F	10173N
Description	D Latch, 10K Series, 1-Func, Low Level Triggered, 4-Bit, True Output, ECL, CDIP16	D Latch, 10K Series, 1-Func, Low Level Triggered, 4-Bit, True Output, ECL, PDIP16
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	10K	10K
JESD-30 code	R-CDIP-T16	R-PDIP-T16
Logic integrated circuit type	D LATCH	D LATCH
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	7.2 ns	7.2 ns
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	ECL	ECL
Temperature level	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
Trigger type	LOW LEVEL	LOW LEVEL
Base Number Matches	1	1
